Digital Brinell Hardness Tester ETBH-A12
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Generic Brand |
| Power Supply | AC220 +5% / 50-60 Hz |
| Model | LTBH-A12 |
| Weight | 110 kg |
| Standard | BSEN 6506 / ISO 6506 / ASTM E10 / GB/T231 |
| Type of Product | Hardness Tester |
| Data output | LCD display |
| Dwell Time | 0 to 99 seconds |
| Dimension (W×D×H) | 550 × 210 × 800 mm |
| Brinell Scale | HBW2.5/62.5 / HBW2.5/187.5 / HBW5/62.5 / HBW5/125 / HBW5/250 / HBW5/750 / HBW10/100 / HBW10/250 / HBW10/500 / HBW10/1000 / HBW10/1500 / HBW10/3000 |
| Test Force (Kgf) | 62.5 kgf (612.9 N) / 100 kgf (980.7 N) / 125 kgf (1226 N) / 187.5 kgf (1839 N) / 250 kgf (2452 N) / 500 kgf (4903 N) / 750 kgf (7355 N) / 1000 kgf (9807 N) / 1500 kgf (14710 N) / 3000 kgf (29420 N) |
| Test Force Accuracy | 62.5 to 250 kgf ≤1% / 500 to 3000 kgf ≤0.5% |
| Measuring Device Resolution | 0.1 µm |
| Hardness Value Resolution | 0.1 HBW |
| Maximum Height of Specimen | 200 mm |
| Indenter to Outer Wall Distance | 155 mm |
Key Features
- Dual screen for enhanced visibility
- Prominent camera for detailed imaging
- Robust design for stability
- Auto-corrected test force accuracy
- High precision closed-loop control system
Product Description

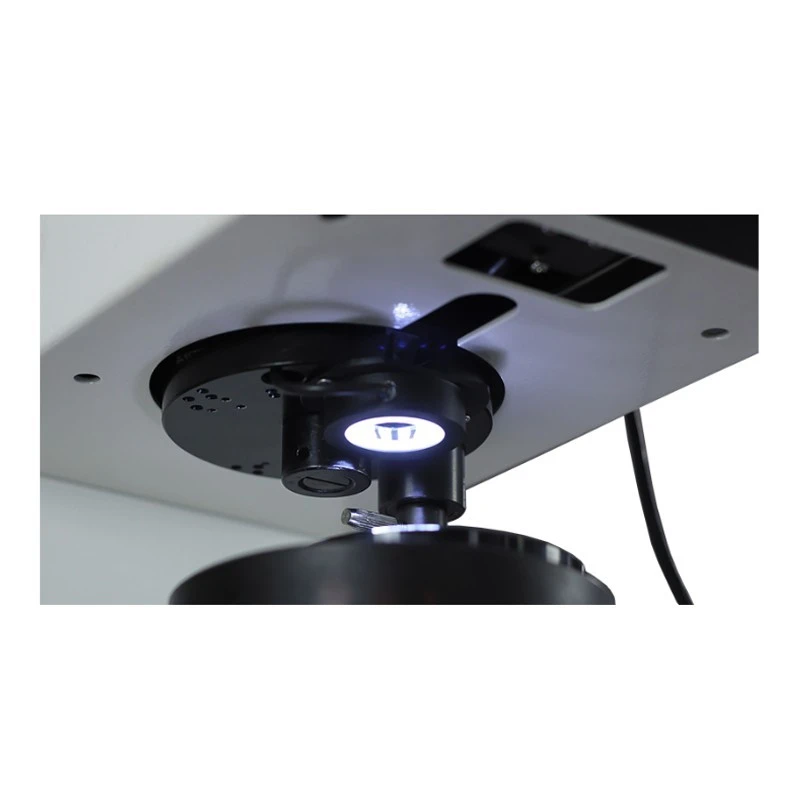

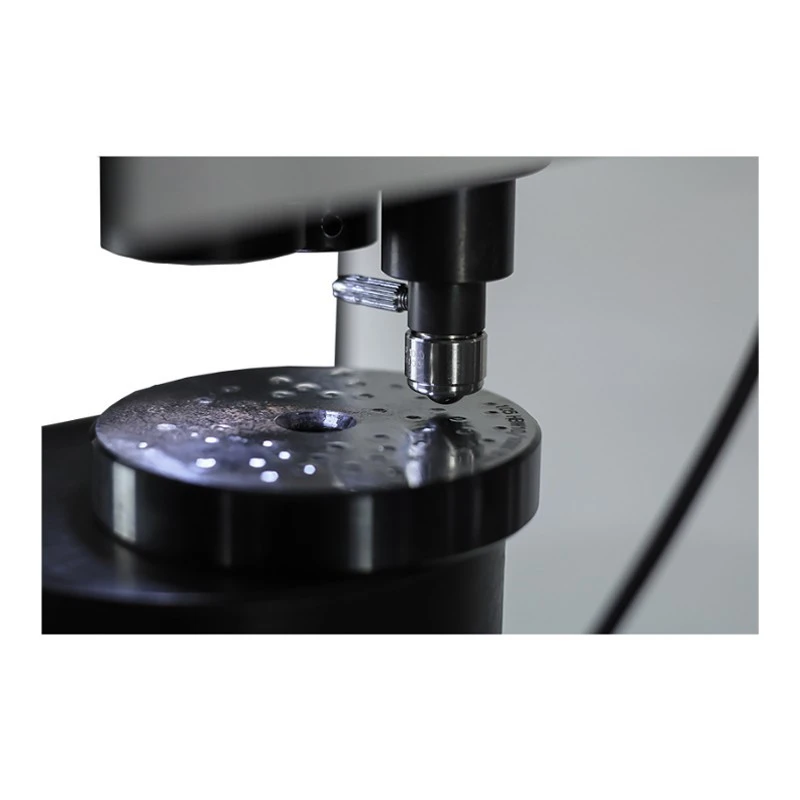

The Digital Brinell Hardness Tester LTBH-A12 delivers precise hardness testing with an automatic turret and a range of test forces from 62.5 kgf to 3000 kgf. It supports a broad spectrum of Brinell scales, from HBW2.5/62.5 to HBW10/3000. Featuring a larger secondary monitor, it enables detailed image display and data analysis for enhanced testing. With a maximum specimen height of 200 mm and a 155 mm indenter to outer wall distance, it offers excellent versatility. Compact yet powerful, this model is ideal for both research and industrial applications.
Applications:
Our Digital Brinell Hardness Tester LTBH-A12 ensures precise hardness testing for material integrity during production. Ideal for metallurgical labs, automotive, and aerospace research.
Standard Accessories:
- Eyepiece: 1

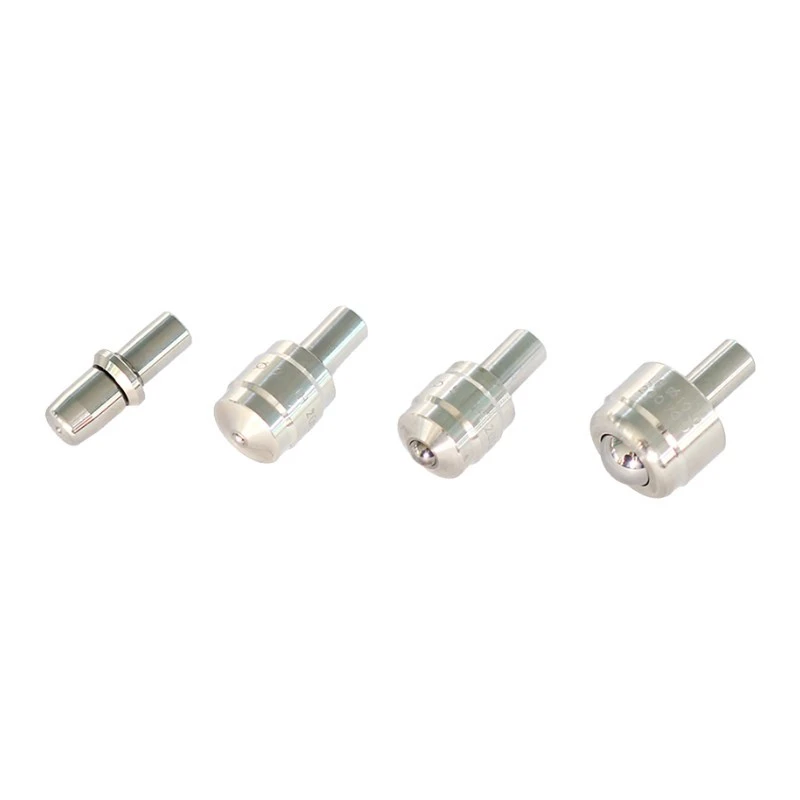

- Diameter 2.5mm Hard Alloy Steel Ball Indenter: 1
- Diameter 5mm Hard Alloy Steel Ball Indenter: 1
- Diameter 10mm Hard Alloy Steel Ball Indenter: 1
- U Disk: 1
- Touch Pen: 1
- Power Cable: 1
- Large Testing Table: 1
- Medium Testing Table: 1
- “V” Shaped Testing Table: 1
- Standard Block (HBW10/3000): 1
- Standard Block (HBW10/1000): 1
- Standard Block (HBW2.5/187.5): 1
- Dust Bag: 1
- Fuse (2A): 2
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a test force range from 62.5 kgf to 3000 kgf, allowing for a variety of hardness testing applications.
It supports a broad spectrum of Brinell scales including HBW2.5/62.5 to HBW10/3000, accommodating various testing needs.
The measuring device resolution is 0.1 µm, ensuring precise measurements during testing.
The dimensions are 550 mm in width, 210 mm in depth, and 800 mm in height.
It requires an AC power supply of 220V ±5% at 50-60 Hz.
The test force accuracy is ≤1% for 62.5 to 250 kgf and ≤0.5% for 500 to 3000 kgf.
It features an LCD display for data output, providing clear visibility of test results.
It complies with standards such as BSEN 6506, ISO 6506, ASTM E10, and GB/T231.
The dwell time can be set from 0 to 99 seconds, allowing flexibility in testing procedures.
The weight of this model is 110 kg, which contributes to its stability during operation.
