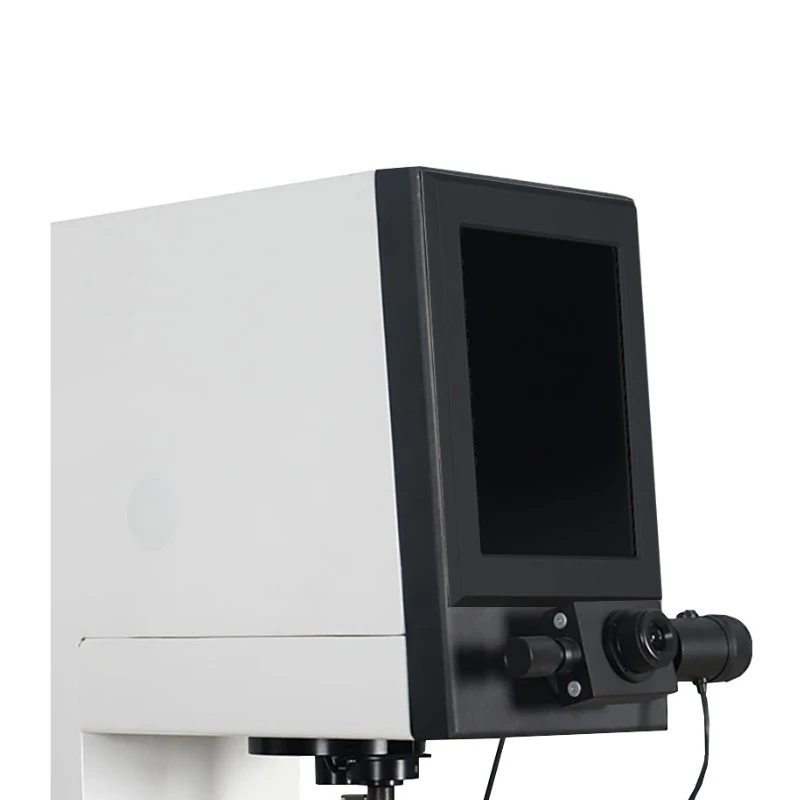

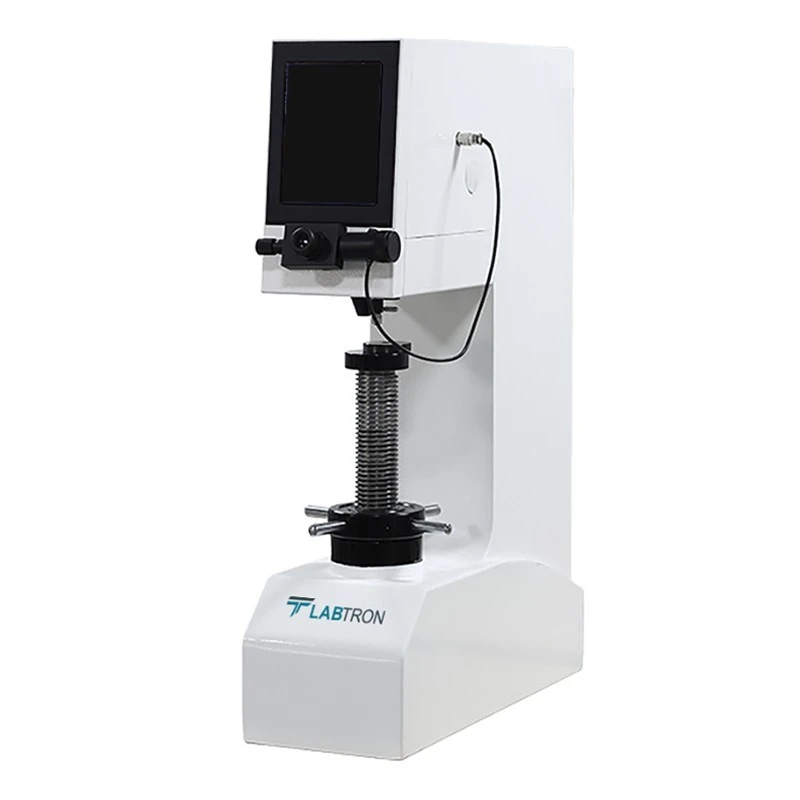

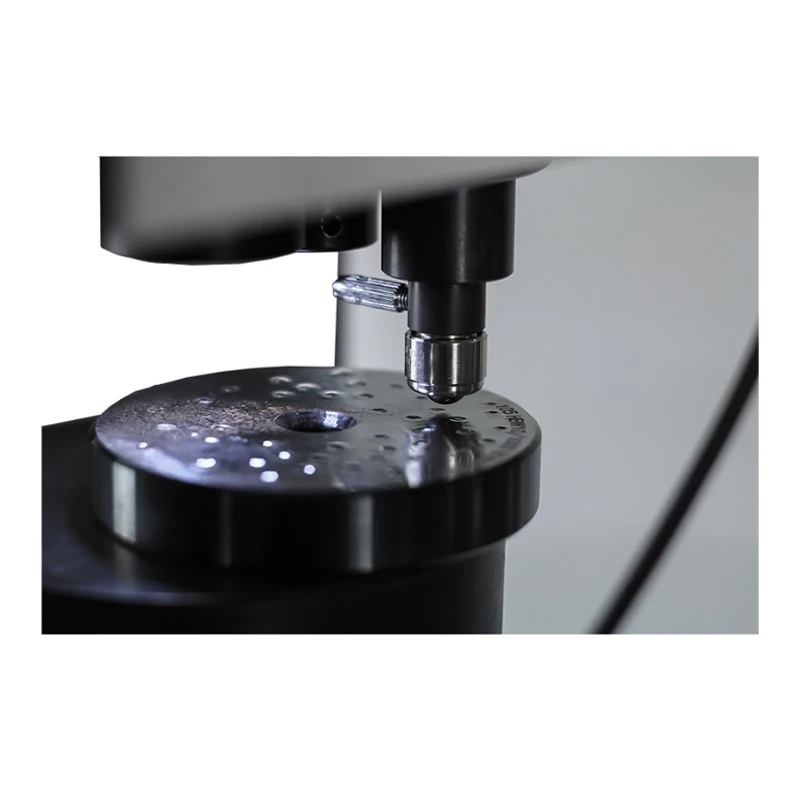

Digital Brinell Hardness Tester ETBH-A11
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Generic Brand |
| Power Supply | AC220 ±5% / 50-60 Hz |
| Model | LTBH-A11 |
| Weight | 110 kg |
| Type of Product | Hardness Tester |
| Data output | LCD display |
| Data Storage | Stored in Excel format on USB or via built-in printer |
| Dwell Time | 0 to 99 seconds |
| Dimension (W×D×H) | 550 × 210 × 800 mm |
| Brinell Scale | HBW2.5/62.5 / HBW2.5/187.5 / HBW5/62.5 / HBW5/125 / HBW5/250 / HBW5/750 / HBW10/100 / HBW10/250 / HBW10/500 / HBW10/1000 / HBW10/1500 / HBW10/3000 |
| Carried Standard | BSEN 6506 / ISO 6506 / ASTM E10 / GB/T231 |
| Test Force (Kgf) | 62.5 kgf (612.9 N) / 100 kgf (980.7 N) / 125 kgf (1226 N) / 187.5 kgf (1839 N) / 250 kgf (2452 N) / 500 kgf (4903 N) / 750 kgf (7355 N) / 1000 kgf (9807 N) / 1500 kgf (14710 N) / 3000 kgf (29420 N) |
| Test Force Accuracy | 62.5-250 kgf ≤1% / 500-3000 kgf ≤0.5% |
| Measuring Device Resolution | 0.1 µm |
| Hardness Value Resolution | 0.1 HBW |
| Maximum Height of Specimen | 200 mm |
| Indenter to Outer Wall Distance | 155 mm |
Key Features
- LCD display provides clear output
- Compact bench-top design
- Built-in printer is available
- High-accuracy sensor technology
- Freely Adjustable Indenter
Product Description
The Digital Brinell Hardness Tester LTBH-A11 is engineered for precise hardness testing, offering a broad test force range from 62.5 to 3000 kgf. It ensures high accuracy with a test force tolerance of ≤1% for 62.5–250 kgf and ≤0.5% for 500–3000 kgf. The dwell time can be adjusted from 0 to 99 seconds, and the test force is automatically modified by the standard dynamometer. Data can be easily stored in Excel format via USB for convenient analysis. This tester is ideal for industrial and research applications, where reliable and precise hardness measurements are essential.
Applications:
Our Digital Brinell Hardness Tester LTBH-A11 is perfect for precise industrial material hardness testing. It is widely used for metals, alloys, and various materials in manufacturing processes.
Standard Accessories:
- Eyepiece: 1
- Diameter 2.5mm Hard Alloy Steel Ball Indenter: 1
- Diameter 5mm Hard Alloy Steel Ball Indenter: 1
- Diameter 10mm Hard Alloy Steel Ball Indenter: 1
- U Disk: 1
- Touch Pen: 1
- Power Cable: 1
- Large Testing Table: 1
- Medium Testing Table: 1
- “V” Shaped Testing Table: 1
- Standard Block (HBW10/3000): 1
- Standard Block (HBW10/1000): 1
- Standard Block (HBW2.5/187.5): 1
- Dust Bag: 1
- Fuse (2A): 2
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The test force range is from 62.5 kgf to 3000 kgf.
The test force accuracy is ≤1% for the range of 62.5–250 kgf and ≤0.5% for 500–3000 kgf.
The dimensions are 550 mm in width, 210 mm in depth, and 800 mm in height.
The maximum height of the specimen is 200 mm.
It requires an AC power supply of 220 ±5% volts at 50-60 Hz.
The measuring device resolution is 0.1 µm.
It is suitable for testing metals, alloys, and various materials in industrial and research applications.
Data can be output via an LCD display and stored in Excel format on a USB or through a built-in printer.
Included standard blocks are HBW10/3000, HBW10/1000, and HBW2.5/187.5.
The dwell time can be adjusted from 0 to 99 seconds.
It complies with BSEN 6506, ISO 6506, ASTM E10, and GB/T231 standards.
Included accessories are various indenter sizes, eyepiece, testing tables, a dust bag, and fuses.
