Digital Brinell Hardness Tester ETBH-A10
Specifications
| Country of Origin | UK |
|---|---|
| Resolution | 0.1 HBW |
| Brand | Generic Brand |
| Power Supply | AC220 ±5% / 50-60 Hz |
| Model | LTBH-A10 |
| Weight | 50 Kg |
| Type of Product | Hardness Tester |
| Test Force | Up to 62.5 Kgf (612.94 N) |
| Dimension (W×D×H) | 590 × 200 × 680 mm |
| Microscope Magnification | 50x / 100x |
| Brinell Scale | HBW1/1 / HBW1/2.5 / HBW1/5 / HBW2.5/6.25 / HBW1/10 / HBW2.5/15.625 / HBW5/25 / HBW1/30 / HBW2.5/31.25 / HBW2.5/62.5 / HBW5/62.5 |
| Carried Standard | BSEN 6506 / ISO 6506 / ASTM E10 / GB/T231 |
| Duration Time | 0 to 99 seconds |
| Max Specimen Height | 180 mm |
| Indenter Distance | 160 mm |
Key Features
- Portable and space-efficient design
- Electric loading with closed-loop control

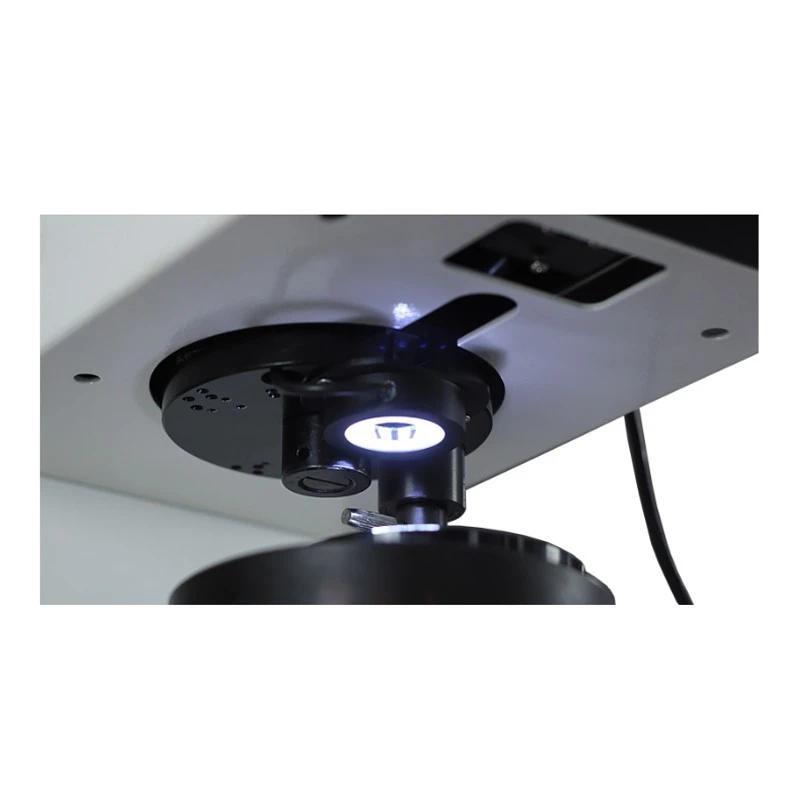

- Automatic turret ensures seamless operation
- Digital encoder provides direct readings
- Standard dynamometer enables self-correction
Product Description
The Digital Brinell Hardness Tester LTBH-A10 ensures accurate testing with a maximum test force of 62.5 Kgf. It achieves a high hardness resolution of 0.1 HBW for reliable material analysis. The tester includes a test microscope with 50× and 100× magnifications for precise indentation observation. Measurements can be stored as Excel files on a USB drive for streamlined data management. It is suitable for industrial laboratories requiring precise Brinell hardness testing with calibration to standard blocks and length scales.
Applications:
Our Digital Brinell Hardness Tester LTBH-A10 is perfect for evaluating material hardness in industries such as manufacturing, metallurgy, and quality control. Its advanced features streamline hardness testing in both research and production environments.
Standard Accessories:
- Eyepiece: 1

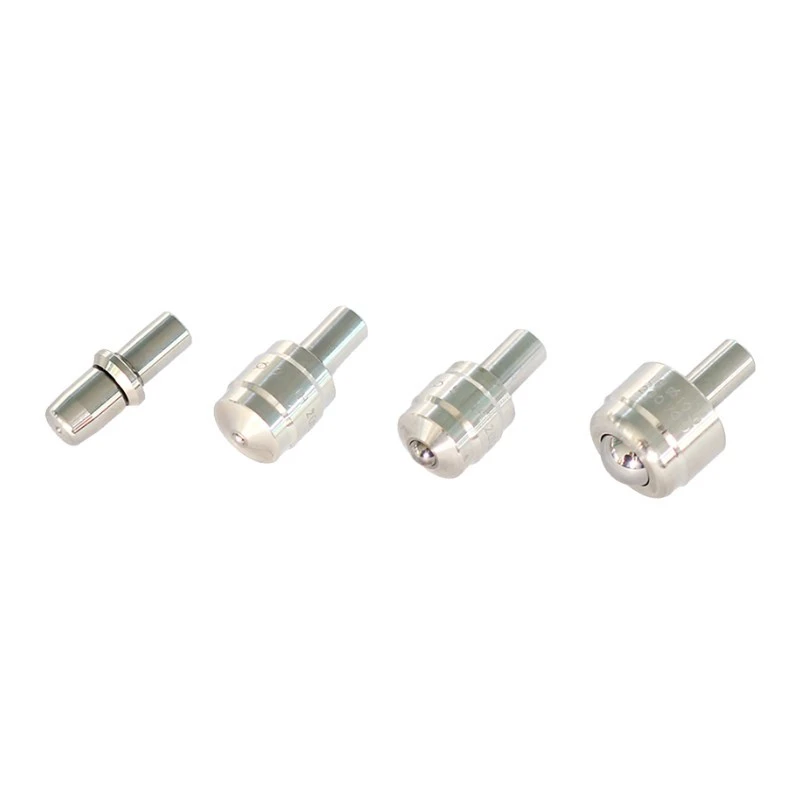

- Diameter 2.5mm Hard Alloy Steel Ball Indenter: 1
- Diameter 5mm Hard Alloy Steel Ball Indenter: 1
- Diameter 10mm Hard Alloy Steel Ball Indenter: 1
- U disk, touch pen: 1
- Power cable: 1
- Large Testing Table: 1
- Medium Testing Table: 1
- “V” shaped Testing Table: 1
- Standard block HBW10/3000: 1
- Standard block HBW10/1000: 1
- Standard block HBW2.5/187.5: 1
- Dust bag: 1
- Fuse 2A: 2
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a maximum test force of up to 62.5 Kgf (612.94 N).
The hardness resolution is 0.1 HBW, ensuring reliable material analysis.
The dimensions are 590 × 200 × 680 mm.
It requires an AC power supply of 220 ±5% / 50-60 Hz.
It includes a test microscope with magnifications of 50× and 100× for precise indentation observation.
The maximum specimen height is 180 mm.
It complies with BSEN 6506, ISO 6506, ASTM E10, and GB/T231 standards.
Included are standard blocks HBW10/3000, HBW10/1000, and HBW2.5/187.5.
Measurements can be stored as Excel files on a USB drive for streamlined data management.
The weight of this model is 50 Kg.
It is suitable for evaluating material hardness in manufacturing, metallurgy, and quality control industries.
The duration time for testing can be set from 0 to 99 seconds.
