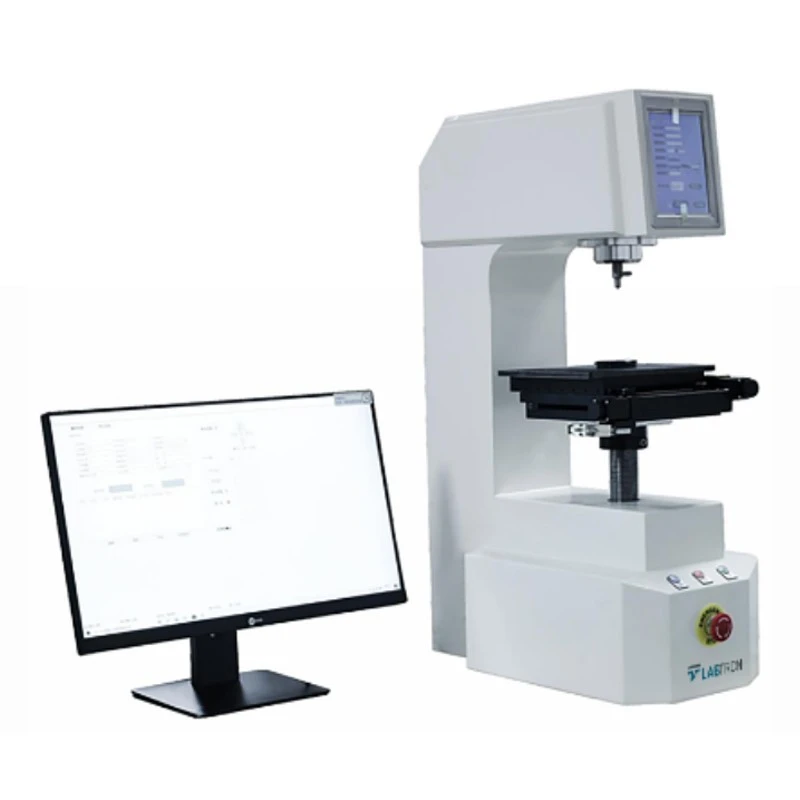

Rock Well Hardness Tester ERHT-A17
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Generic Brand |
| Power Supply | AC 220 V / 50 to 60 Hz / 600 W |
| Model | LRHT-A17 |
| Weight | 80 KG |
| Overall dimensions | 560 × 280 × 850 mm |
| Type of Product | Hardness Tester |
| Standards | BSEN 6508 / ISO 6508 / ASTM E18 / GB/T230 |
| Dwell Time | 0–99 s |
| Max Height of Specimen | 300 mm for common sample table / 200 mm with X mobile station / 100 mm for X/y mobile station |
| Conversion Scale | Rockwell / Surface Rockwell / Brinell and Vickers |
| Hardness Testing Range | HR15N — 70–94 / HR30N — 42–86 / HR45N — 20–77 / HR15TW — 67–93 / HR30TW — 29–82 / HR45TW — 10–72 |
| Rockwell Scale | 15N / 15T / 15W / 15X / 15Y / 30N / 30T / 30W / 30X / 30Y / 45N / 45T / 45W / 45X / 45Y |
| Initial Load of Rockwell | 3 kgf (29.42 N) |
| Total Load of Rockwell | 15 kgf (147.1 N) / 30 kgf (294.2 N) / 45 kgf (441.3 N) |
| Resolution of Hardness Value | 0.1 HR |
| Load Value Error | Less than 1% |
| Hardness Reading | LCD Display |
| X/Y Motor Table Stroke | 100 mm (optional 200 mm) |
| Accuracy of X/Y Motor Table | 0.005 mm |
| Distance from Centre to Indenter Wall | 200 mm |
Key Features
- Supports HRA, HRB, HRC scales
- Ensures precise measurements
- Durable industrial frame
- Quick test cycles
- USB, RS232, Ethernet connectivity
- Intuitive touchscreen
- Auto calibration and diagnostics
- Overload protection and emergency stop
Product Description
The Rockwell Hardness Tester LRHT-A17 offers a preliminary test force of 29.4 N and total test forces of 147.1, 294.2, and 441.3 N, enabling versatile testing across different materials. Its digital display ensures precise hardness readings with a resolution of 0.1 HR, providing high accuracy. These features make it a dependable choice for consistent hardness testing in manufacturing, material analysis, and various other applications.
Applications:
The Rockwell Hardness Tester LRHT-A17 is ideal for quality control in metal manufacturing and mechanical engineering. It is also used in material testing labs for determining the hardness of a wide range of metals and alloys.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hardness testing range includes HR15N (70–94), HR30N (42–86), HR45N (20–77), HR15TW (67–93), HR30TW (29–82), and HR45TW (10–72).
This model supports total test forces of 147.1 N, 294.2 N, and 441.3 N.
It requires an AC power supply of 220 V with a frequency of 50 to 60 Hz and a power consumption of 600 W.
The unit weighs 80 KG.
The overall dimensions are 560 × 280 × 850 mm.
The resolution of the hardness value is 0.1 HR.
It complies with BSEN 6508, ISO 6508, ASTM E18, and GB/T230 standards.
The maximum height of the specimen is 300 mm for the common sample table, 200 mm with the X mobile station, and 100 mm for the X/Y mobile station.
It features an intuitive touchscreen, auto calibration, diagnostics, overload protection, and an emergency stop function.
The initial load applied is 3 kgf, which is equivalent to 29.42 N.
The dwell time can be set from 0 to 99 seconds.
