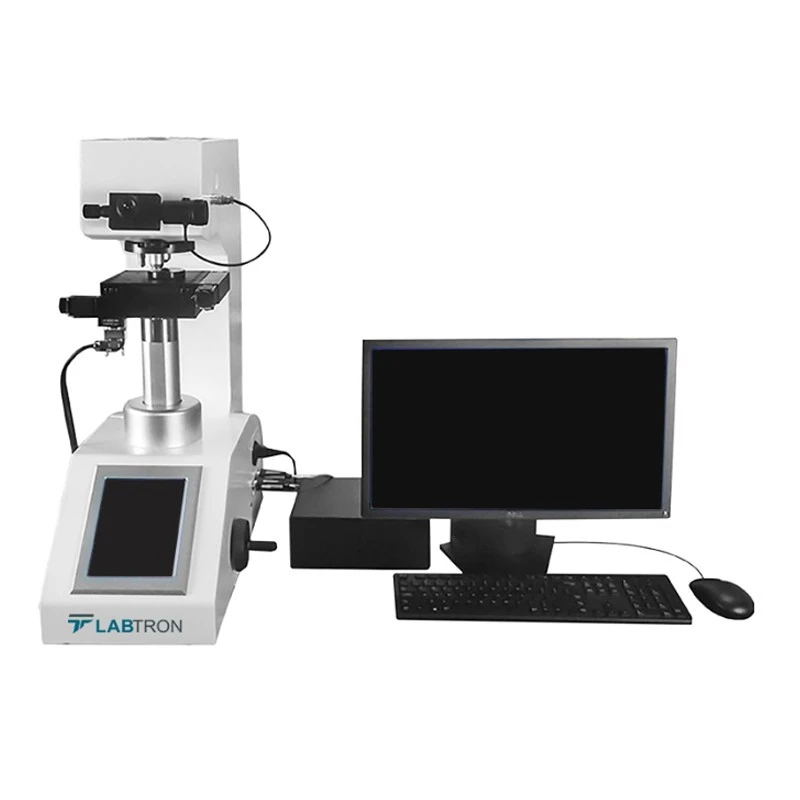

Automatic Micro Vickers Hardness Tester EMHT-A10
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Generic Brand |
| Power Supply | AC220V ± 5% / 50 to 60 Hz |
| Model | LMHT-A10 |
| Weight | 108kg |
| Type of Product | Hardness Tester |
| Standards | GB/T43402 / ASTM E92 |
| Measurement Resolution | 0.01µm |
| Camera Resolution | 5-Megapixel |
| Test Force | 10GF (0.098N) / 25GF (0.245N) / 50GF (0.49N) / 100GF (0.98N) / 200GF (1.96N) / 300GF (2.94N) / 1kgf (9.8N) |
| Hardness Test Range | 8 to 2900 HV |
| Test Force Retention Time | 1 to 99s |
| Conversion Scale | Rockwell / Brinell |
| Test Force Application Method | Automatic (Loading / Preserving / Unloading) |
| Test Microscope Magnification | 400X (test) / 100X (test / observation) |
| Data Display | 8" Touch Screen Display |
| Maximum Allowable Specimen Height | 160mm |
| Distance from Head to Wall | 160mm |
| Drive Motors for Automatic X-Y Loading Platform | Stepper Motor |
| Maximum Travel Distance for Automatic X-Y Loading Platform | 50 × 50mm in X-Y Direction |
| Minimum Travel Distance for Automatic X-Y Loading Platform | 1µm |
| Movement Speed Automatic X-Y Loading Platform | 1 to 10mm/SEC / Adjustable |
| Motor for Z Axis Auto Focus Component | Stepper Motor |
| Moving Resolution for Z Axis Auto Focus Component | 0.1µm |
| Displacement Repetition Accuracy for Z Axis Auto Focus Component | 1µm |
| Movement Speed for Z Axis Auto Focus Component | Fast/Slow |
| Automatic Measuring Time | About 0.3 SEC per indentation |
| Repeatability of Measurement | ±1.0% (1700H/500gf) |
| Minimum Detectable Indentation | About 5µm (Automatic Measurement) |
| Minimum Unit of Measurement | 0.01mm |
| Laptop Operating System | Windows 10 |
| Packaging Size Dimensions | 540 × 260 × 650mm 830 × 500 × 960mm |
Key Features
- Built-in camera and optional printer
- Long-lasting LED light source
- Test settings and results stored in EXCEL format
- USB drive for data processing and reporting
- Optional RS-232 interface
- Automatic indentation measurement
- Panoramic scanning
Product Description
The Automatic Micro Vickers Hardness Tester LMHT-A10 measures hardness from 8 to 2900 HV with a resolution of 0.01µm. It is a high-end digital micro-hardness tester equipped with an optical cross guide rail lifting mechanism. It features automatic X and Y axis movement and Z-axis automatic focusing. It provides a precise force value and a clear picture. The indenter and objective lens swap automatically to precisely find the test site. It enables multi-sample, multi-point automatic hardness measurement. It can generate inspection reports automatically. Our tester calibrates using standard blocks or weighs and automatically checks for correctness.
Applications:
Our Automatic Micro Vickers Hardness Tester LMHT-A10 is ideal for Vickers hardness testing of metals and some non-metallic materials, including metal parts after thermal treatment. It's also effective for determining hardening depth, coating thickness, and examining metallographic structures, crucial for surface hardness and heat-treated workpieces.
Standard Accessories:
- Farmar shaft × 1 The root
- Micrometer eyepiece × 1 Piece
- Power cord × 1 Piece
- Product certificate × 1 Piece
- Warranty card × 1 Piece
- Printing paper × 1 Piece
- Screwdriver × 2 Piece
- Farmar × 6 Piece
- Microhardness block (high block, medium block) × Each 1 Piece
- Nylon universal sole × 4 Piece
- Spare fuse (2A) × 2 Piece
- Dust cover × 1 Piece
- Manual × 1 Piece
- Touch pen × 1 Piece
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The measurement resolution is 0.01µm.
It requires an AC220V ± 5% power supply and operates at 50 to 60 Hz.
The maximum allowable specimen height is 160 mm, and the distance from the head to the wall is also 160 mm.
It has an 8" touch screen display for data visualization.
The automatic measuring time is about 0.3 seconds per indentation.
The test force application method is automatic, including loading, preserving, and unloading.
It complies with GB/T43402 and ASTM E92 standards.
The maximum travel distance for the automatic X-Y loading platform is 50 × 50 mm in the X-Y direction.
