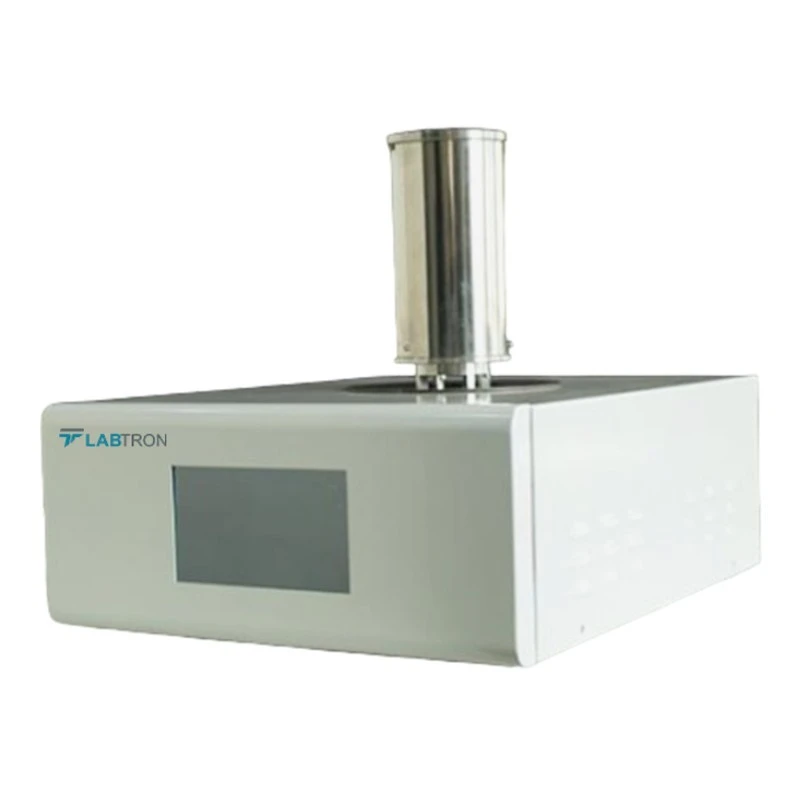

Automatic Thermogravimetric Analyzer ETGA-A11
Specifications
| Country of Origin | UK |
|---|---|
| Resolution | 0.01µg |
| Brand | Generic Brand |
| Power Supply | AC 220V 50Hz |
| Dimension | 620 × 520 × 850 mm |
| Net Weight | 86 kg |
| Temperature Resolution | 0.01°C |
| Temperature range | Room temperature to 1600°C |
| Model | LTGA-A11 |
| Gross Weight | 89 Kg |
| Type of Product | Thermogravimetric Analyzer |
| Heating Rate | 0.1 to 100°C/min |
| Display Mode | Large-screen LCD |
| Cooling Rate | 1 to 20°C/min |
| Data interface | Standard USB interface |
| Temperature Fluctuation | ±0.1°C |
| Temperature Control Method | Heating / Constant Temperature / Cooling |
| Cooling Time | 15 min (1000°C to 100°C) |
| Constant Temperature Time | 0 to 300min arbitrarily set |
| Balance Measuring Range | 1mg to 2g |
| Atmosphere | Inert / Oxidizing / Reducing / Static / Dynamic |
| DSC Range | 0 to ±500mW |
| DSC Resolution | 0.01mW |
Key Features
- Metal nickel-cadmium alloy furnace body and tray sensor
- Quick and stable control system
- Circulating heat dissipation components
- Top-opening structure for easy operation
- Water area constant temperature device
- Replaceable furnace body
Product Description
Automatic Thermogravimetric Analyzer LTGA-A11 offers a broad temperature range capability, ranging from room temperature to 1600℃. It can accommodate diverse sample types and thermal processes. Consists of a built-in gas flow meter, including two-way gas switching and flow rate control. Integrates intelligent software that can automatically record the TG curve for data processing and print experimental reports.
Software Features:
- Enhanced performance with a 32-bit ARM Cortex-M3 processor
- Features a 24-bit four-channel sampling AD for collecting DSC, TG, and temperature signals
- Independent control over power supply and water circulation via an 8-bit microcontroller
- Utilizes USB two-way communication for remote operation and parameter adjustments
- 7-inch full-color touch screen for enhanced user experience, including TG calibration
Applications:
Automatic Thermogravimetric Analyzer is used in the analysis of material properties through thermal decomposition and mass changes. Applied in various fields such as materials science, chemistry, and pharmaceuticals.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a temperature range from room temperature to 1600°C.
The resolution for balance measurements is 0.01µg and temperature resolution is 0.01°C.
It requires an AC power supply of 220V at 50Hz.
The dimensions are 620 × 520 × 850 mm, and it has a net weight of 86 kg.
The heating rate ranges from 0.1 to 100°C/min, while the cooling rate ranges from 1 to 20°C/min.
It can operate in inert, oxidizing, reducing, static, and dynamic atmospheres.
It features a standard USB interface for data communication.
The temperature control method includes heating, constant temperature, and cooling modes.
The balance measuring range is from 1mg to 2g.
The constant temperature time can be arbitrarily set from 0 to 300 minutes.
It includes intelligent software with a 32-bit ARM Cortex-M3 processor for data processing and report printing.
The cooling time from 1000°C to 100°C is approximately 15 minutes.
