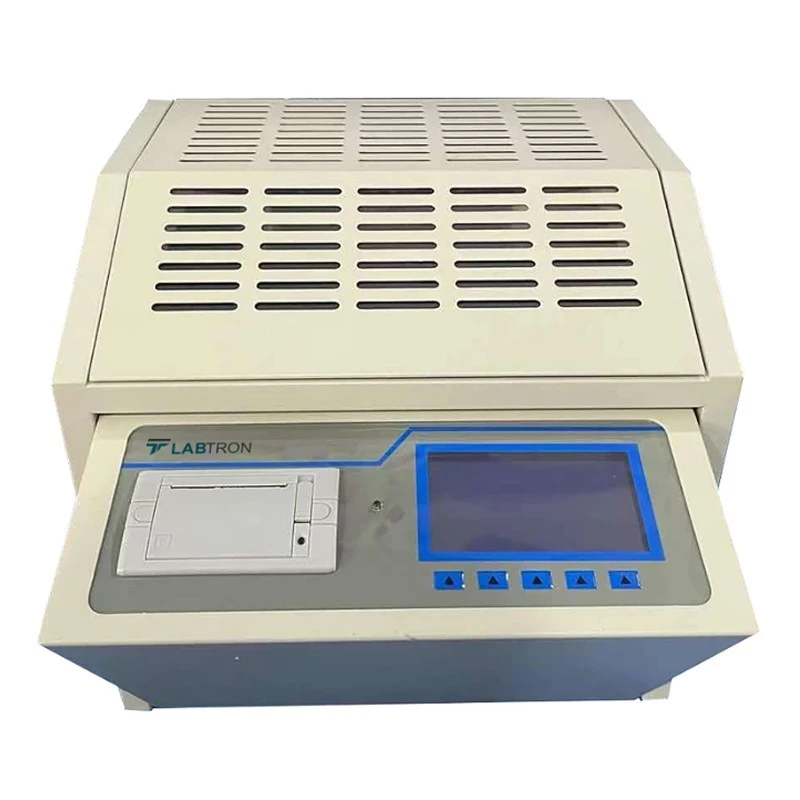

Automatic Oil Tester EOAT-A10
Specifications
| Country of Origin | UK |
|---|---|
| Power Consumption | Less than 200 W |
| Relative Humidity | ≤ 85% |
| Brand | Generic Brand |
| Power Supply | AC 220V ± 20% |
| Interface | RS232 |
| Model | LOAT-A10 |
| Temperature | 0 to 40°C |
| Output Voltage (V) | 0 to 80 kV (optional) |
| Type of Product | Petroleum Testing Equipment |
| Display Mode | Large LCD |
| Voltage Accuracy | (2% reading + 2 words) |
| Booster Capacity | 1.5 kVA |
| Boost Speed | 0.5 kV/s to 5.0 kV/s (10 grades / increasing by 0.5) |
| Electrode Clearance Standard | 2.5 mm |
| Power Distortion Rate | Less than 1% |
| Test Times | 6 times (1 to 10 times optional) |
| Resting Time | 900 sec (0 to 5900 sec optional) |
| Interval Rest Time | 300 sec (0 to 5900 sec optional) |
| Stirring Time | 15 sec (0 to 250 sec optional) |
| Power Supply Frequency | 50 Hz ± 5 Hz |
| Single Cup Dimension | 430 × 350 × 370 mm |
| Three Cups Dimension | 670 × 420 × 410 mm |
| Single Cup Weight | 36 Kg |
| Three Cups Weight | 42 kg |
Key Features
- Portable design
- Strong anti-interference capability
- Multiple operation modes
- Single-moulded special glass oil cup
Product Description
Automatic Oil Tester LOAT-A10 features a booster capacity of 1.5 kVA and adjustable boost speed from 0.5 kV/s to 5.0 kV/s, with ten 0.5 kV/s increments for precise testing. Controlled by a robust microcomputer, it offers reliable performance with a watchdog circuit to prevent system crashes. Its high-voltage sampling design feeds values directly into the A/D converter, minimizing analogue errors and enhancing measurement accuracy.
Applications:
Automatic Oil Tester LOAT-A10 is commonly used in power generation, transmission, and distribution industries to ensure the reliability of electrical equipment.
Standard Accessories:
- 36 mm Oil test vessel with stainless steel spherical electrodes × 1
- 36 mm Oil test vessel with stainless steel mushroom electrodes × 1
- 2.5 mm Electrode spacing gauge × 1
- Protective cover × 1
- Power supply lead × 1
- 300–500 ml Glass test cell × 1
- 36 mm Extra oil vessel with spherical electrodes × 1
- Carrying case and transportation trolley × 1
- 232 Communication port × 1
Optional Accessories:
- Extra oil vessel with 36 mm spherical electrodes and voltage meter
- Transportation trolley
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this model is 80 kV, which is optional depending on the configuration.
The power consumption is less than 200 W, making it efficient for laboratory use.
This model operates within a temperature range of 0 to 40°C.
The boost speed can be adjusted from 0.5 kV/s to 5.0 kV/s, with ten increments of 0.5 kV/s for precise testing.
The dimensions of the single cup are 430 × 350 × 370 mm.
The weight of this model is 36 kg when using a single cup.
The relative humidity for operation should be ≤ 85%.
It features a large LCD display for easy reading of measurements.
The tester can be set for 6 test times, with options to select from 1 to 10 times.
The electrode clearance standard is 2.5 mm.
The power supply requirement is AC 220V ± 20% with a frequency of 50 Hz ± 5 Hz.
