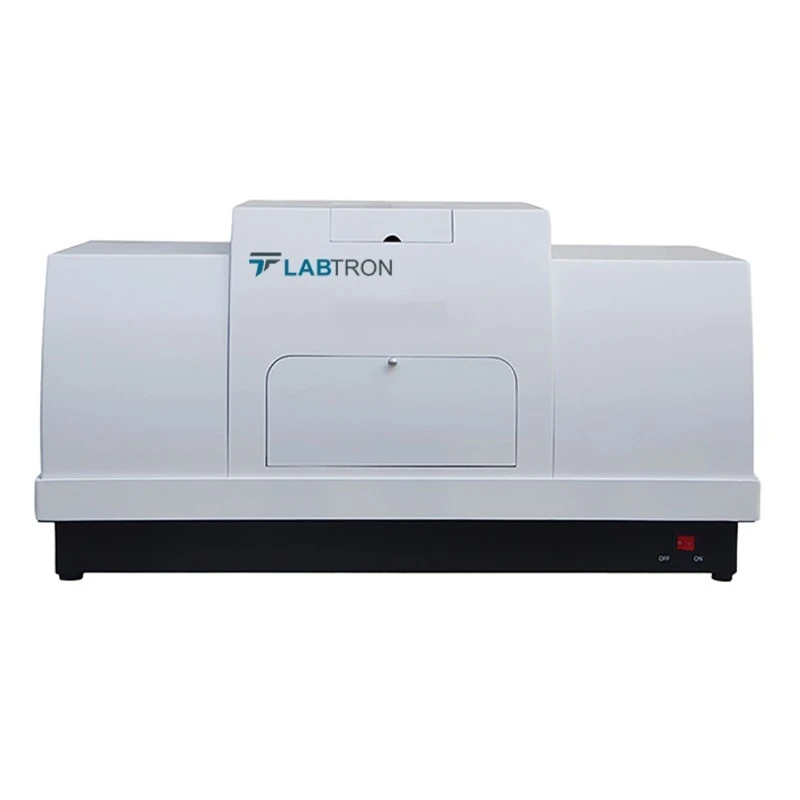

Laser Particle Size Analyzer ELPA-A10
Specifications
| Country of Origin | UK |
|---|---|
| Measurement Range | 0.1 to 300 µm |
| Brand | Generic Brand |
| Net Weight | 41 kg |
| Light Source | High performance semiconductor laser λ equal to 632.8 nm / P Greater than 2 mW / service life Greater than 25000 h |
| Detector | High-sensitive ring photoelectric detector |
| Operation Mode | Automatic / Manual (Switchable) |
| Model | LLPA-A10 |
| Standard | ISO 13320-1 — 2009 |
| Type of Product | Particle Size Analyzer |
| Ultrasonic Frequency | 40 kHz |
| Test Speed | Less than 2 min/time |
| Circulation | Rated Flow — 0 to 10 L/min / Rated Power — 25 W |
| Repeatability error | Less than 1% (National Standard Sample D50) |
| Dimensions (L × W × H) | 880 × 390 × 460 mm |
| Ultrasonic Power | 100 W |
| Accuracy Error | Less than 1% (National Standard Sample D50) |
| Dispersion Type | Wet |
| Channel Number | 39 |
| Dispersion Method | Ultrasonic and Stir/Circulation Combo |
| Ultrasonic Time | Adjustable |
| Stir Revolution Speed | 100 to 3950 rpm (adjustable) |
| Sample Pool Capacity | 350 ml |
| Optical Path Alignment | Fully automatic |
| Software Running | WIN 7/10/XP / 64-bit |
| Analysis Mode | Free Distribution / R-R Distribution / Logarithm Normal Distribution / Mesh classification |
| Statistic Method | Volume Distribution / Quantity Distribution |
| Test Report | Word / Excel / PDF / BMP / Text |
| Intelligent Operation | Intelligent SOP operation |
Key Features
- An intelligent and fully automatic wet laser particle size analyzer
- Adopted with MIE scattering principle, highly sensitive detectors and detection system
- Unconstrained free fitting software technology facilitates data processing
- Designed as per ISO13320-1:1999 standard configurations
- 0.01 to 2000 µm measuring range with 127 channels and 350 ml sample pool
- High-performance semiconductor laser and built-in dispersion unit
- Auto optical alignment, auto water supply, auto drainage, auto bubble removing, auto ultrasonic dispersion
- Intelligent SOP operation with both automatic and manual operation modes
- Different analysis modes, statistical methods, and statistical comparisons
- <2 min test time with test report in various formats for easy data analysis
- High-efficient, stable, and reliable unit to precisely determine the particle size distribution
Product Description
Laser Particle Size Analyzer LLPA-A10 is an intelligent wet laser particle size analyzer, adopted with MIE scattering principle, high-sensitive ring photoelectric detector, and unconstrained free fitting software technology. Designed as per ISO13320-1:1999 standard configurations, offers 0.1 to 300 μm of measuring range with 39 channels and 350 ml sample pool. Equipped with high-performance semiconductor laser and built-in dispersion unit, features auto optical alignment, auto water supply, auto drainage, auto bubble removing, auto ultrasonic dispersion etc. through one-key operation. Incorporated with intelligent SOP operation, automatic and manual mode, has different analysis mode, statistic methods, and statistic comparisons, offers <2 min test time and supports test report in various format.
Applications:
Used to measure the sizes of particles in a material across cosmetics, food, coal, paint, paper, petrochemical, dyes, inks, explosives, kaolin, medicine, metal powder, mica, milling, minerals, oxides industries, etc.
Optional Accessories:
- 10 ml micro sample pool
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a measurement range of 0.1 to 300 µm.
This unit features 39 channels for particle size measurement.
The test speed is less than 2 minutes per test.
It utilizes a high-performance semiconductor laser with a wavelength of 632.8 nm.
The dimensions are 880 mm in length, 390 mm in width, and 460 mm in height.
The net weight of the analyzer is 41 kg.
It supports both automatic and manual operation modes, which are switchable.
The software supports volume distribution and quantity distribution as statistical methods.
The sample pool has a capacity of 350 ml.
The accuracy error is less than 1% for the National Standard Sample D50.
The software is compatible with Windows 7, 10, and XP, specifically for 64-bit systems.
