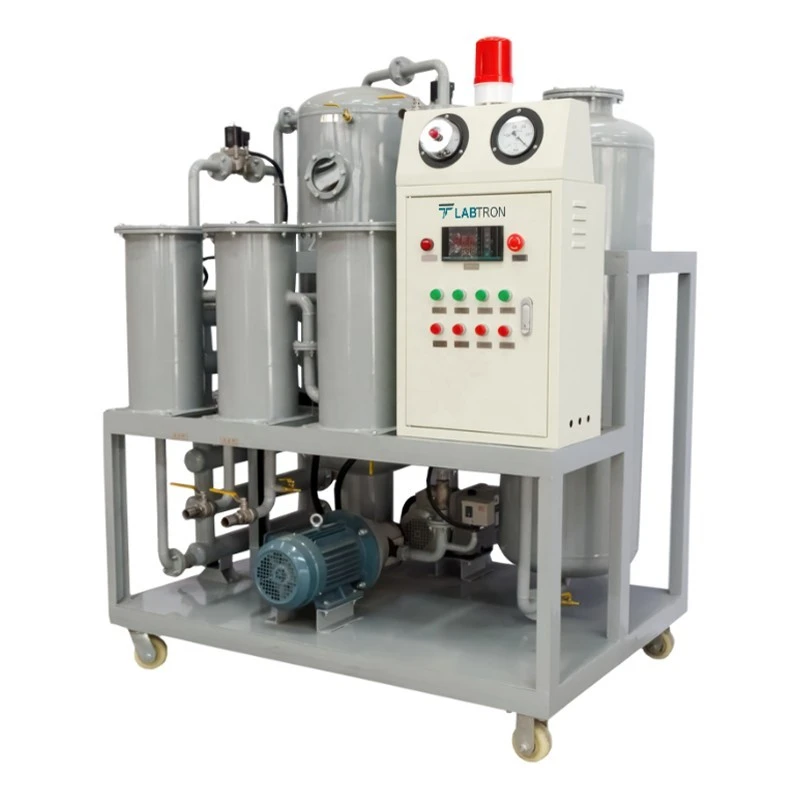

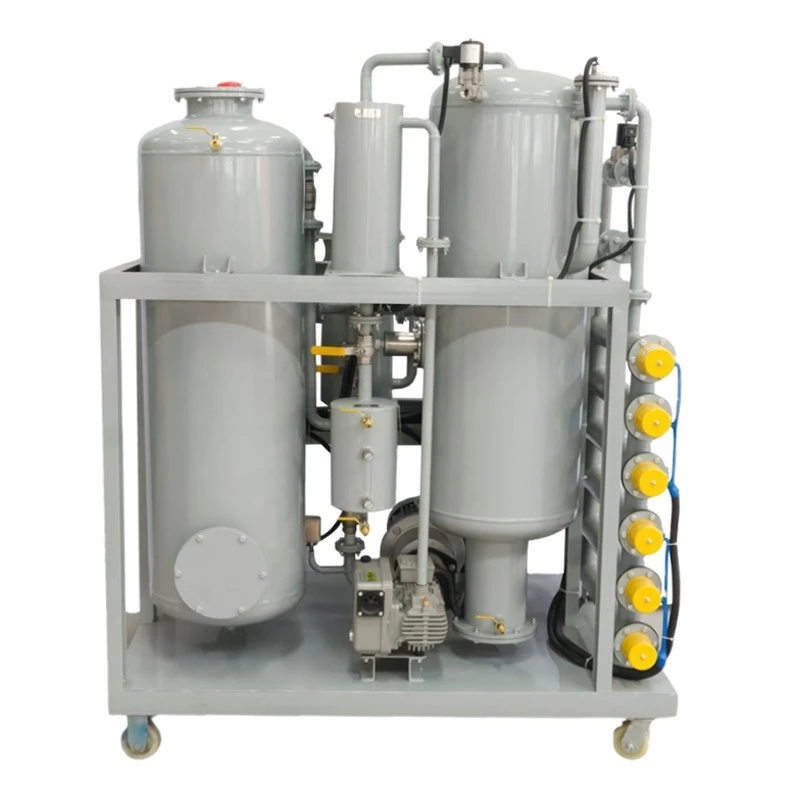

Transformer Oil Purification System ETOP-A13
Specifications
| Country of Origin | UK |
|---|---|
| Power Consumption | 50000 W |
| Brand | Generic Brand |
| Power Supply | 65000 V |
| Flow Rate | 6000 L/H |
| Temperature range | 10 to 80°C |
| Model | LTOP-A13 |
| Weight | 800 KG |
| Vacuum Degree | -0.06 to -0.095 MPa |
| Moisture Content | ≤5 PPM |
| Type of Product | Oil Purification System |
| Vacuum Pressure | ≤ 0.3 MPa |
| Heating Power | 45000 W |
| Dimensions (L×W×H) | 1600 × 950 × 1700 mm |
| Working Noise | 75 dB(A) |
| Gas Content | 0.1 % |
| Impurity Size | ≤1 µm |
| Oil Outlet/Inlet | Φ46 mm |
| Value β | 96 % |
| Normal Working Hour | ≥ 4000 H |
| Continuous Working | 150 H |
| Acid Value | ≤0.03 mgKOH/g |
| Dielectric Loss Factor | ≤0.001 tg6 (90°C) |
Key Features
- Safe pressure relief mechanism
- High-flow oil circulation efficiency
- Effortless oil inlet/outlet configuration
- Enhanced anti-oxidation performance
- Minimal downtime maintenance design
Product Description
Transformer Oil Purification System LTOP-A13 is capable of handling a flow rate of 6000 (L/H), delivering effective purification and enhancing the durability. Incorporates multiple filtration stages, including vacuum dehydration for thorough and efficient oil treatment. It is equipped with over-temperature protection to ensure reliable operation. Our Oil Purification System features automatic shutdown in case of system anomalies for enhanced safety.
Applications:
Transformer Oil Purification System LTOP-A13 is crafted to purify and regenerate insulating oils by removing moisture, gases, and impurities. It is widely used in power plants, substations, and industrial electrical equipment maintenance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a flow rate of 6000 L/H, allowing for effective purification of transformer oil.
The power consumption of this unit is 50000 W.
It operates within a temperature range of 10 to 80°C.
This model weighs 800 KG.
The vacuum pressure is rated at ≤ 0.3 MPa.
It features automatic shutdown in case of system anomalies and over-temperature protection for reliable operation.
It is capable of removing moisture, gases, and impurities, with an impurity size of ≤1 µm.
The dimensions are 1600 × 950 × 1700 mm.
It can achieve a moisture content of ≤5 PPM in the treated oil.
The normal working hour is rated at ≥ 4000 H.
It is widely used in power plants, substations, and for industrial electrical equipment maintenance.
The heating power is 45000 W.
