Double-Stage Vacuum Transformer Oil Purifier EDOP-A12
Specifications
| Country of Origin | UK |
|---|---|
| Power Consumption | 80000 W |
| Brand | Generic Brand |
| Power Supply | AC380V/50Hz/3 |
| Flow Rate | 6000 L/H |
| Temperature range | 20 to 80°C |
| Model | LDOP-A12 |
| Weight | 1200 kg |
| Vacuum Degree | -0.08 to -0.099 MPa |
| Moisture Content | ≤3 PPM |
| Type of Product | Oil Purification System |
| Vacuum Pressure | ≤ 0.3 MPa |
| Heating Power | 72000 W |
| Dimensions (L×W×H) | 1900 × 1350 × 2100 mm |
| Working Noise | 70 dB(A) |
| Gas Content | 0.1 % |
| Impurity Size | ≤1 µm |
| Oil Outlet/Inlet | Φ 38 mm |
| Value β | 98 % |
| Cleanness | ≤ 6 |
Key Features
- Anti-foam control system
- Optimized degassing efficiency
- Automatic contamination monitoring
- 150-hour continuous operation
- Double-infrared liquid control
Product Description

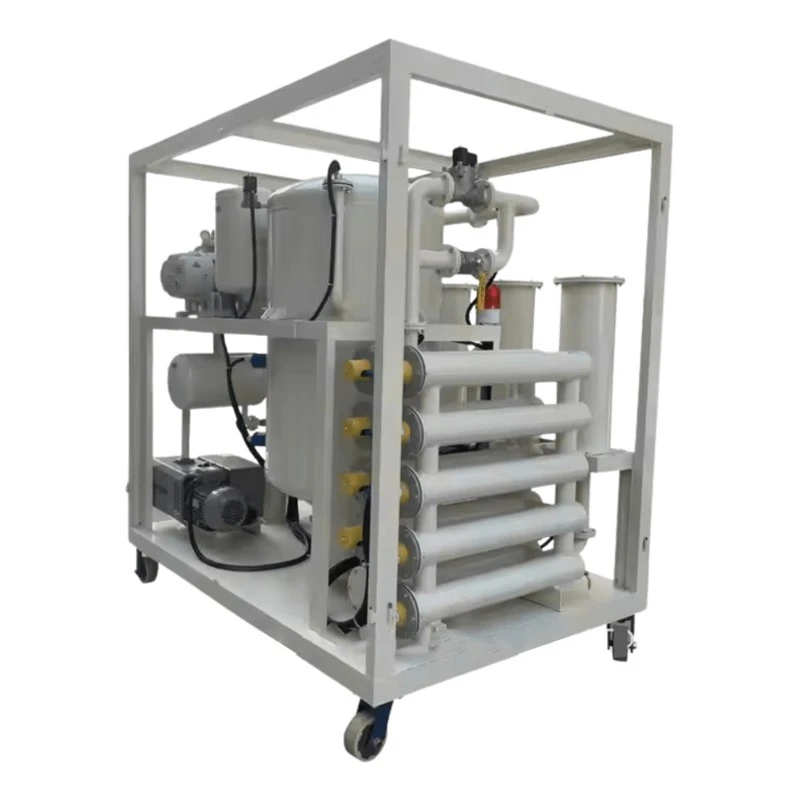

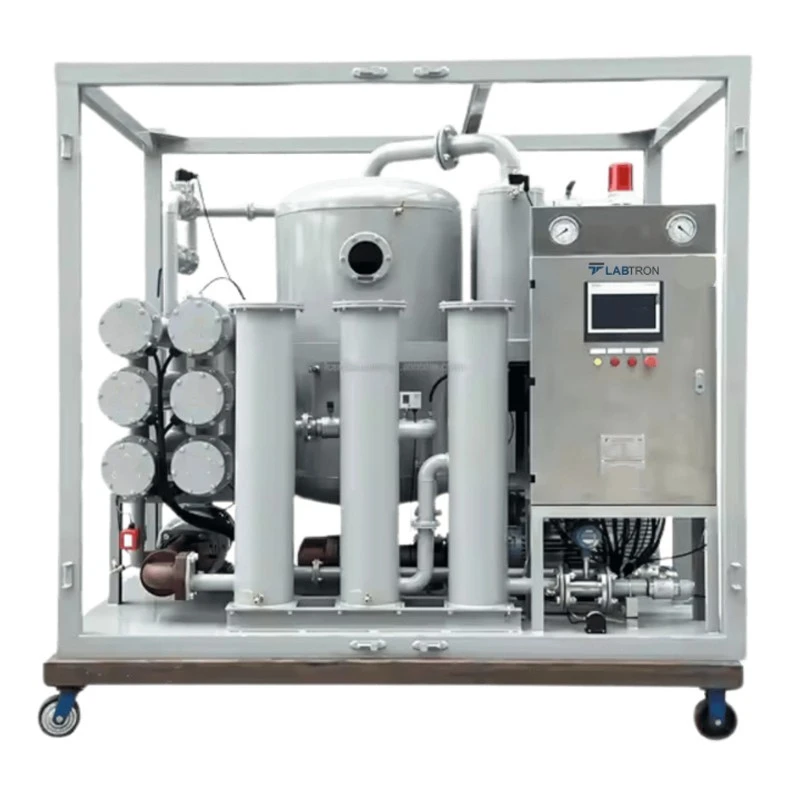

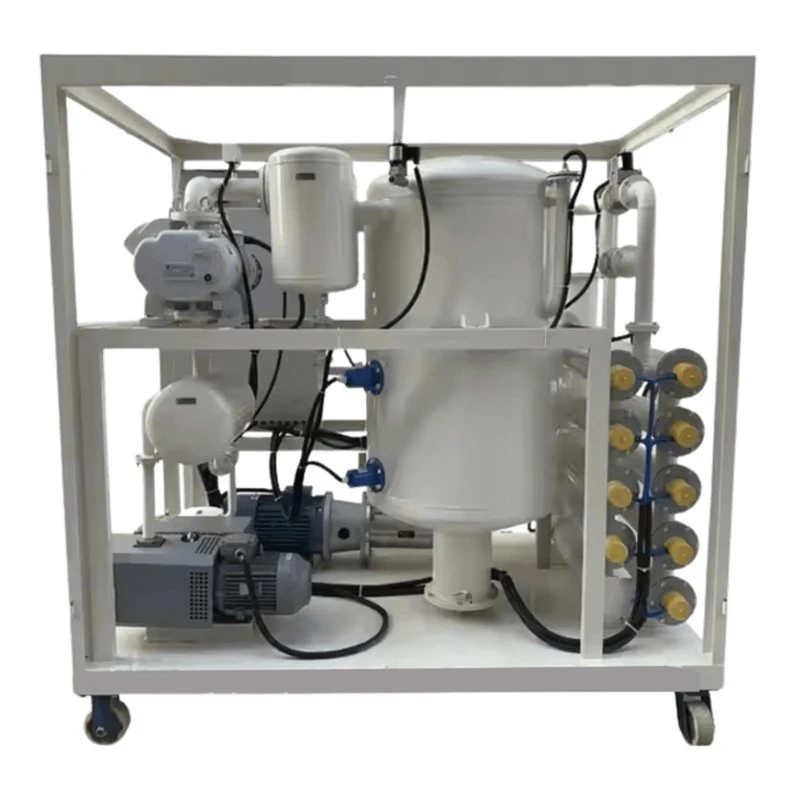

Double-Stage Vacuum Transformer Oil Purifier LDOP-A12 operates with a flow rate of 6000 L/H, efficiently removing impurities and moisture from transformer oil. The weatherproof outdoor enclosure ensures reliable operation and protects it from rain, dust, and sunlight. It offers customizable heating power for specific optimal oil purification. Our Transformer Oil Purifier includes an interlocked protective mechanism for the oil pump, heater, and sensor.
Applications:
Double-Stage Vacuum Transformer Oil Purifier LDOP-A12 removes moisture, gases, and impurities from transformer and insulating oils. It is used in power plants, substations, transformer manufacturing, and electrical maintenance facilities.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with a flow rate of 6000 L/H, efficiently removing impurities and moisture from transformer oil.
The power consumption is 80000 W, which is essential for its operation.
The operating temperature range is between 20 to 80°C.
The vacuum pressure is ≤ 0.3 MPa, providing effective oil purification.
The dimensions are 1900 × 1350 × 2100 mm.
It weighs 1200 kg, which is important for installation considerations.
It can reduce moisture content to ≤3 PPM, ensuring high-quality oil purification.
It can remove impurities as small as ≤1 µm from the oil.
The required power supply is AC380V/50Hz/3.
The working noise level is 70 dB(A).
It is used in power plants, substations, transformer manufacturing, and electrical maintenance facilities for removing moisture, gases, and impurities from transformer and insulating oils.
It includes an anti-foam control system, optimized degassing efficiency, automatic contamination monitoring, and a protective mechanism for the oil pump, heater, and sensor.
