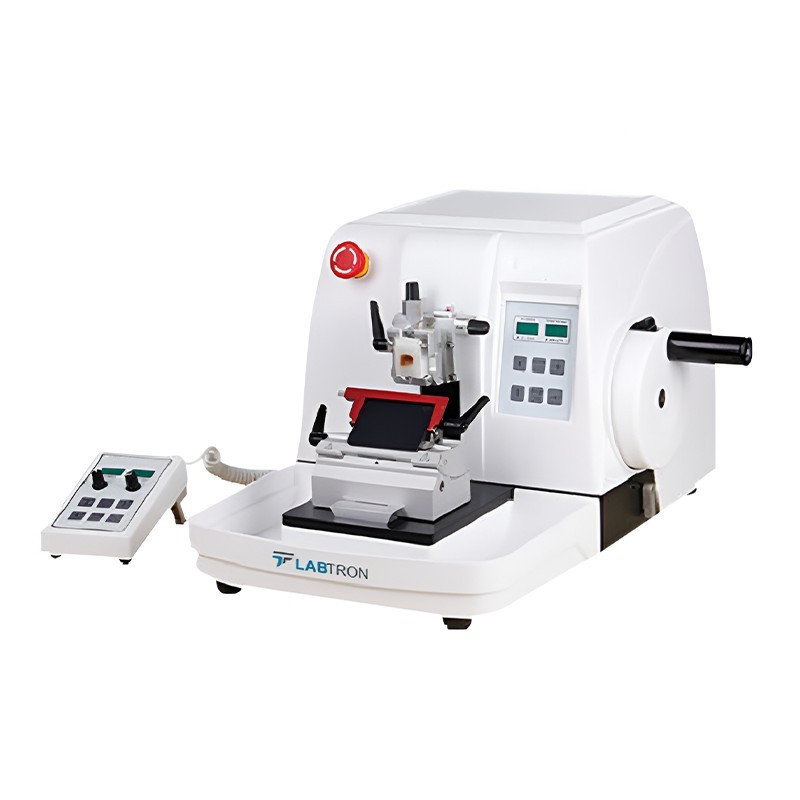

Labtron LAM-B10 Automatic Microtome
Specifications
| Country of Origin | UK |
|---|---|
| Power Consumption | 150 W |
| Display | LED Display |
| Brand | Labtron |
| Power Supply | AC 110/220V ±10% / 50/60Hz |
| Precision | ±5% |
| Model | LAM-B10 |
| Gross Weight | 60 kg |
| Type of Product | Microtome |
| Specimen orientation | XY — 8°C / rotation ±90°C |
| Specimen Vertical Stroke | 70 mm |
| Specimen Horizontal Stroke | 28 mm |
| Whole Layer Clearance Distance | 10 — 6000 µm (10 / 12 / 15 / 20...6000 / after 15 µm the increment is 5 µm) |
| Retraction Range | 0 — 50 µm |
| Sectioning Thickness Range (0.25 to 100 µm) | 0.25 — 2.5 µm — 0.25 µm increment / 2.5 — 5 µm — 0.5 µm increment / 5.0 — 10 µm — 1 µm increment / 10 — 30 µm — 2 µm increment / 30 — 60 µm — 5 µm increment / 60 — 100 µm — 10 µm increment |
| Trimming Thickness Range (1 to 600 µm) | 1 to 10 µm — 1 µm increment / 10 to 20 µm — 2 µm increment / 20 to 50 µm — 5 µm increment / 50 to 150 µm — 10 µm increment / 150 to 600 µm — 50 µm increment |
| Minimum Sectioning Thickness | 0.25 µm |
| Maximum Specimen Size | 70 x 70 mm |
| Feed Speed | 1500 µm/s / 3500 µm/s |
| External Dimension (WxDxH) | 580 x 475 x 340 mm |
| Package Dimension (WxDxH) | 680 x 570 x 500 mm |
Key Features
- Smooth running hand wheel
- Provides optimal tactile response
- Specimen trimming feature speeds up productivity
- Automatic sectioning speed is adjustable by gentle button
- Fast switching between paraffin block clamp and cassette clamp
- Auto slicing control ensures fast trimming and slicing switching
- Safety and emergency braking systems
- 3 mode control system: conventional mode, intelligent sensing mode, and whole layer cutting mode
- Lateral displacement of blade holder base enables better sectioning
- Provides work flow flexibility
- The precise positioning system allows easy use and accurate X and Y axis adjustment
- Imported guide rails for cross-rollers and high-precision screw motion mechanisms
- Large-volume removable waste tray, on the top of the housing
- Red bar on the blade holder covers the whole length of blade to protect the user and enables easy changing of the blade
- Safety and emergency braking systems
Product Description
Automatic Microtome LAM-B10 distinguishes for precision and functionality, following the highest safety standard and the device uses an optimized design, with advanced functions, stable and reliable performance. It's an automatic microtome with imported roller guide rails and high-precision roller screws that combines mechanical feed with hand cutting to produce high-quality ribbons.
Applications:
Automatic microtomes are extensively used in Clinical fields, Research laboratories, Industrial laboratories, Pathology labs, Medical Institutions, Histology and Biology labs and many Medical science applications.
