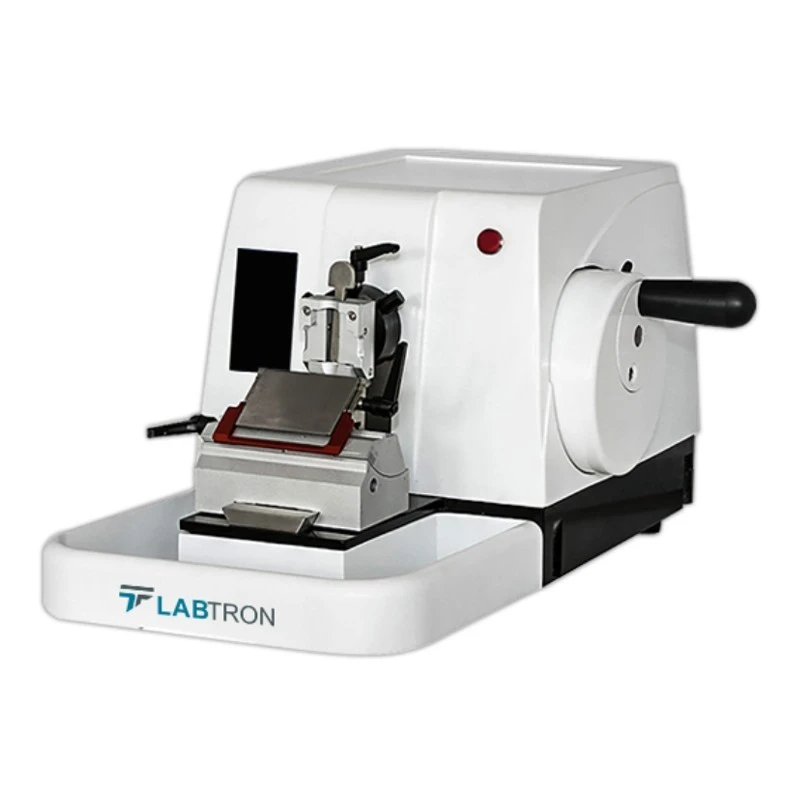

Labtron LAM-A10 Automatic Microtome
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Power Supply | 100/240 V / 50/60 Hz |
| Model | LAM-A10 |
| Weight | 35 kg |
| Type of Product | Microtome |
| Dimensions (WxDxH) | 560 x 470 x 300 mm |
| Section Thickness Setting | 0.5 to 5 µm — in 0.5 µm increment / 5 to 20 µm — in 1 µm increment / 20 to 60 µm — in 5 µm increment / 60 to 100 µm — in 10 µm increment |
| Section thickness range | 0.5 µm to 100 µm (3 to 5 µm best slicing effect) |
| Trimming Thickness Range | 1 to 600 µm |
| Trimming Thickness Setting | 1 to 10 µm — in 1 µm increment / 10 to 20 µm — in 2 µm increment / 20 to 50 µm — in 5 µm increment / 50 to 100 µm — in 10 µm increment / 100 to 600 µm — in 50 µm increment |
| Specimen Retraction Thickness | 10 to 150 µm — in 1 µm increment |
| Specimen Vertical Stroke | 60 mm |
| Specimen Horizontal Stroke | 25 mm |
| Specimen Holder Adjustment System | Horizontal orientation (X axis) — ± 8° |
| Max Specimen Size with C Clamp | 55 mm x 45 mm |
Key Features
- Fully-automatic sectioning with adjustable speed and three sectioning modes (Continuous, Step, Single) for user selection
- Streamlined molded housing offers an attractive appearance and easy maintenance
- Advanced retraction function for better sectioning, with retraction value adjustable
- Electronic trim function to switch from trim to section mode
- Section counting function sums total section pieces and overall thickness
- Signal and stepper motor to control specimen feeding
- Automatic memorized coarse feed and reload function improves cutting efficiency
- Advanced slide mechanism and groove ensures the precision of specimen movement
- Specimen fine orientation of 8° on X/Y axes
- Universal specimen holder includes C clamp, optional Cassette Clamp
- Spacious and ingenious waste tray
- A hand wheel force balancing system to adjust the balancing force during smooth and even rotations, sectioning
Product Description
Automatic Microtome LAM-A10 is a fully automated microtome, offers adjustable speed with three sectioning modes (Continuous, Step, Single) for users selection. Designed with streamlined molded housing, hand wheel for smooth running and stepping-motor advance technology for fine sectioning and trimming of specimen with selectable specimen retraction. Features a precise micro motion specimen feeding system, microcomputer controlled optical signal and stepper motor to regulate specimen feeding, and a removable waste tray for specimen dismantling. Automatic Microtome offers 0.5 μm to 100 μm section thickness range, and 1 to 600 μm trimming thickness range.
Applications:
Automatic Microtome used for sectioning (slicing, trimming) of biological specimens across Histopathology, Medicine, Biology for scientific research and analysis.
