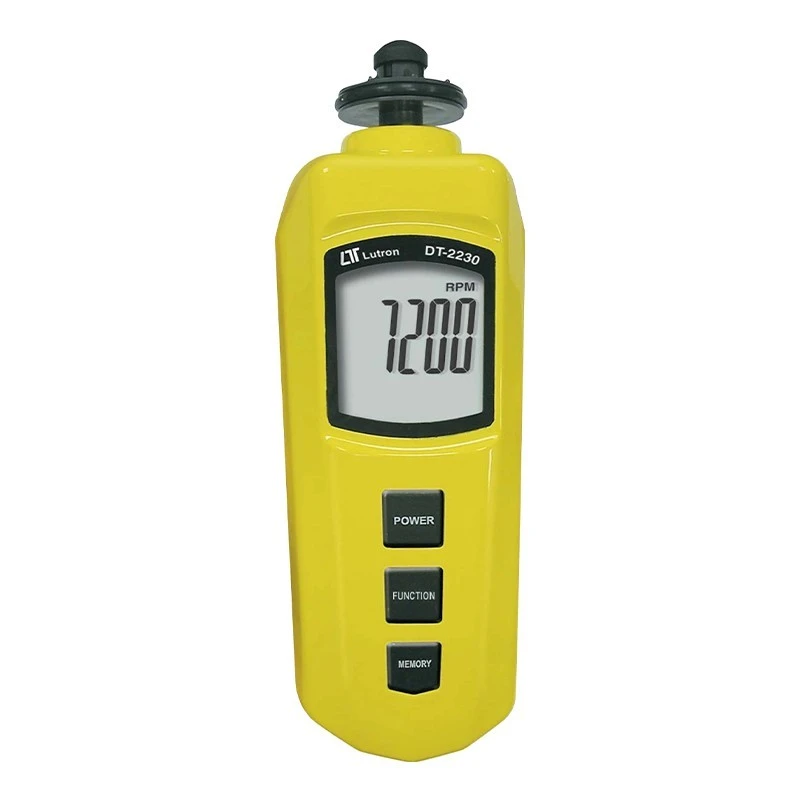

Lutron DT-2230 Tachometer
Specifications
| Accuracy | ± (0.1% + 1 digit) |
|---|---|
| Operating Humidity | Less than 80% RH |
| Display | LCD / 32 mm x 28 mm / 5 digits |
| Brand | LUTRON |
| Power Supply | 4 x 1.5V AAA (UM4) batteries |
| Type | Photo/Contact Tachometer |
| Operating Temperature | 0 to 50 ℃ |
| Dimensions | 165 x 50 x 33 mm |
| Memory | Last/Max./Min. value |
| Model | DT-2230 |
| Weight | 182 g (including batteries) |
| Data output | RS232 PC serial interface |
| Circuit | Exclusive one-chip microcomputer LSI circuit |
| Photo Tachometer Range | 5 to 99 /999 RPM |
| Contact Tachometer Range | 0.5 to 19 /999 RPM |
| Detecting Distance | 5 to 150 cm (typically) |
| Time Base | Quartz crystal |
| Power Consumption (Photo) | Approx. DC 20 mA |
| Power Consumption (Contact) | Approx. DC 9.5 mA |
| Accessories Included | Reflecting tape marks (600 mm) / Operation manual / Spare RPM cone rubber / Spare RPM funnel rubber |
| Laser Light Source | Class 2 laser diode / Less than 1 mW / 645 nm wavelength |
Key Features
- Photo tachometer
- Contact tachometer
- Measures RPM, m/min, ft/min, in/min
- Wide measurement range
- LCD display
- Memory recall
- RS232 computer interface
- Laser light detecting source
Product Description
The Lutron DT-2230 is a pocket-type photo/contact tachometer with an RS232 computer interface. It combines photo and contact tachometer functions, offering a wide measurement range and high accuracy. It features a laser light detecting source, an LCD display, and memory recall.
Available on EnvMart, these Tachometers are built with advanced sensing technology to deliver precise RPM measurements of rotating equipment. Lutron Tachometers are trusted for their accuracy, reliability, and user-friendly design, making them ideal for industrial maintenance, automotive diagnostics, and machinery monitoring.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The photo tachometer range is from 5 to 99,999 RPM, while the contact tachometer range is from 0.5 to 19,999 RPM.
It has an accuracy of ± (0.1% + 1 digit).
It features an LCD display with dimensions of 32 mm x 28 mm, capable of showing 5 digits.
The device is powered by 4 x 1.5V AAA (UM4) batteries.
The operating temperature range is 0 to 50 ℃, and the operating humidity is less than 80% RH.
Included accessories are reflecting tape marks (600 mm), an operation manual, a spare RPM cone rubber, and a spare RPM funnel rubber.
The weight of this model is 182 g, including the batteries.
It features a PC serial interface for data output.
The detecting distance for the photo tachometer is typically between 5 to 150 cm.
It uses a Class 2 laser diode with a power output of less than 1 mW and a wavelength of 645 nm.
The tachometer can recall the last, maximum, and minimum values measured.
It is equipped with an exclusive one-chip microcomputer LSI circuit.
