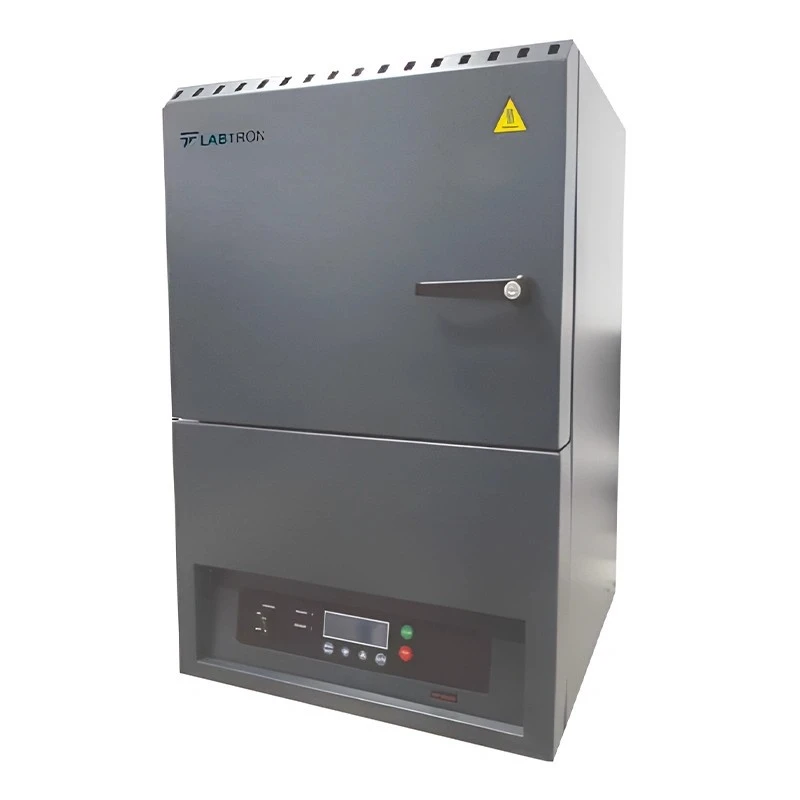

Muffle Furnace EMF-I61
Specifications
| Display | 4 × 20" LCD |
|---|---|
| Capacity | 30 L |
| Brand | Generic Brand |
| Power | 10.700 W |
| Net Weight | 170 kg |
| Model | LMF-I61 |
| Max. Temperature | 1600 °C |
| Gross Weight | 204 kg |
| Housing Material | Steel Sheet |
| Measurement Accuracy | ± 1 °C |
| Thermocouple Type | S Type |
| Heating element | MoSi₂ (Molybdenum disilicide) |
| Max. current | 3 × 30 A |
| Temperature Control Accuracy | ± 1 °C (can vary at low temperatures) |
| Heating Program | 8 step |
| Thermal Rate | 3 °C - 20 °C |
| Program Memories | 6 |
| Heating Element Placement | Vertically aligned next to the side walls |
| Inner Insulation Material | Ceramic Fibre Board |
| Front Face Insulation Material | Insulating Fire Brick |
| Door Insulation Material | Ceramic Fibre Board |
| Housing Coating | Epoxy powder coating |
| Chimney | Standard without fan |
| Lockable Door Handle | Sidewards |
| Inner Volume Temperature Homogeneity | ± 10 °C |
| Auto Start at Certain Date | Yes |
| Show Remaining Waiting Time | Yes |
| Skip the Waiting Step | Yes |
| Burst Heating Mode | Yes |
| Inner Chamber Dimension (W x H x D) | 250 × 310 × 390 mm |
| Product Outer Dimension (W x H x D) | 582 × 310 × 390 mm |
| Gross Dimension (W x H x D) | 642 × 1096 × 1049 mm |
Key Features
- PID controller
- LCD display that shows current and target temperature
- Optimum insulation properties
- 4, 8, 16 step heating program available
- MoSi₂ heating elements vertically aligned next to the side walls
- Accurate temperature measurement and control using S and B type thermocouple
- Unique electronic design and software
- Durable inside lining made of high-quality light insulating bricks and ceramic fibre board
- Dual shell housing for low outer surface temperature
- Current limit control for safe operation
- Provision of sound warning as the step changes and at the end of the program
- Equipped with step indicator
- Instantaneous energy consumption indicator
- Step indicator
- Total working hour counter
- Descriptive error indicator
- Control unit overheating sensor
- Open door sensor
- Provision of automatic power cutoff to the heating element if the control unit/control card is overheated
- User-friendly operating menu
Product Description
The LMF-I61 model of Muffle Furnace is a microprocessor-controlled furnace uniquely designed with optimum heat insulation properties, making it ideal for ashing food, plastic, and other organic materials. With MoSi₂ heating elements vertically aligned next to the side walls, S and B type thermocouples, and dual sheet housing for low outer surface temperature, it is perfect for continuous and maximum working temperatures of 1600 °C. The furnace features a user-friendly menu with a 4-line display for easy operation and current limit control for safe operation. It is designed for minimal space requirements in the laboratory and is equipped with an instantaneous energy consumption indicator, total working hour counter, and control unit overheating sensor.
Optional Accessories:
- High Temperature Gloves
- Tongs
- Alumina Crucibles
- Metal Crucibles
- Alumina Combustion Boats
- Ceramic Pipes
- Extra Thermocouples
Optional Features:
- Over Temperature Limiter
- Lift-up Door
- Stainless Steel Body
- Gas Supply Connection
- Open Door Sensor
- Second Thermocouple
- Observation Hole
- PC Connection
- 110 V Power Supply
Spare Parts:
- Inner Module: Changing the inner module renews your furnace close to a brand-new furnace
- Door Insulation: With sheet metal holder vessel
- Control Card: Easy-to-replace, pre-programmed
- Power Card: Easy-to-replace
- Display: 4 x 20 LCD display
- Cooling Fan: 80 x 80 x 20 / 220 V fan
- Chimney Fan: 40 x 40 x 10 / 5V fan
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum temperature of this model is 1600 °C.
It uses MoSi₂ (Molybdenum disilicide) heating elements that are vertically aligned next to the side walls.
The measurement accuracy is ± 1 °C, although it can vary at low temperatures.
The inner chamber dimensions are 250 × 310 × 390 mm.
This model utilizes an S type thermocouple for accurate temperature measurement and control.
The furnace requires a power input of 10.700 W and has a maximum current of 3 × 30 A.
Yes, it features a user-friendly menu with a 4-line LCD display for easy operation.
The inner insulation is made of ceramic fibre board, while the door insulation is also ceramic fibre board.
It includes a control unit overheating sensor, open door sensor, and automatic power cutoff to the heating element if the control unit overheats.
This furnace allows for an 8-step heating program, with a total of 6 program memories available.
The net weight of this model is 170 kg, while the gross weight is 204 kg.
