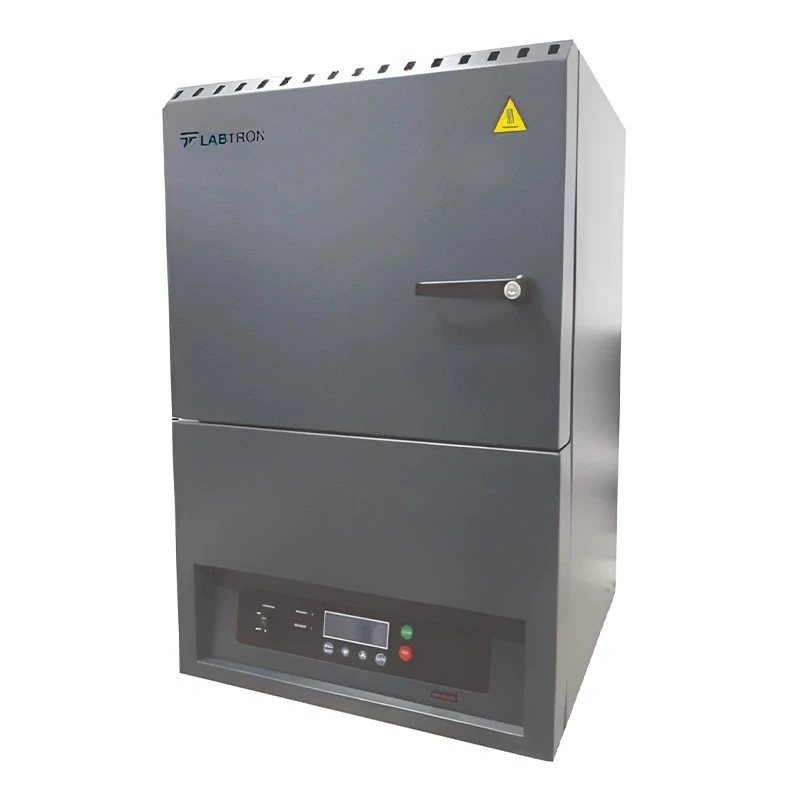

Muffle Furnace EMF-I32
Specifications
| Display | 4 × 20" LCD |
|---|---|
| Capacity | 6 L |
| Brand | Generic Brand |
| Power | 8.200 W |
| Net Weight | 110 kg |
| Model | LMF-I32 |
| Max. Temperature | 1600 °C |
| Gross Weight | 133 Kg |
| Housing Material | Steel Sheet |
| Measurement Accuracy | ± 1 °C |
| Thermocouple Type | S Type |
| Heating element | MoSi₂ (Molybdenum disilicide) |
| Max. current | 2 × 20 A |
| Temperature Control Accuracy | ± 1 °C (can vary at low temperatures) |
| Heating Program | 16 step |
| Thermal Rate | 3 °C - 20 °C |
| Program Memories | 5 |
| Heating Element Placement | Vertically aligned next to the side walls |
| Inner Insulation Material | Ceramic Fibre Board |
| Front Face Insulation Material | Insulating Fire Brick |
| Door Insulation Material | Ceramic Fibre Board |
| Housing Coating | Epoxy powder coating |
| Chimney | Standard without fan |
| Lockable Door Handle | Sidewards |
| Inner Volume Temperature Homogeneity | ± 10 °C |
| Auto Start at Certain Date | Yes |
| Show Remaining Waiting Time | Yes |
| Skip the Waiting Step | Yes |
| Burst Heating Mode | Yes |
| Inner Chamber Dimension (W x H x D) | 150 × 185 × 220 mm |
| Product Outer Dimension (W x H x D) | 502 × 955 × 634 mm |
| Gross Dimension (W x H x D) | 562 × 1015 × 839 mm |
Key Features
- PID controller
- LCD display showing current and target temperature
- Optimum insulation properties
- 4, 8, 16 step heating program available
- MoSi₂ heating elements vertically aligned next to the side walls
- Accurate temperature measurement and control using S and B type thermocouples
- Unique electronic design and software
- Durable inside lining made of high-quality light insulating bricks and ceramic fibre board
- Dual shell housing for low outer surface temperature
- Current limit control for safe operation
- Provision of sound warning as the step changes and at the end of the program
- Equipped with step indicator
- Instantaneous energy consumption indicator
- Step indicator
- Total working hour counter
- Descriptive error indicator
- Control unit overheating sensor
- Open door sensor
- Provision of automatic power cutoff to the heating element if the control unit/control card overheats
- User-friendly operating menu
Product Description
The LMF-I32 model of Muffle Furnace is a microprocessor-controlled furnace uniquely designed with optimum heat insulation properties, making it ideal for ashing food, plastic, and other organic materials. With MoSi₂ heating elements vertically aligned next to the side walls, S and B type thermocouples, and dual sheet housing for low outer surface temperature, it is perfect for continuous and maximum working temperatures of 1600 °C. The furnace features a user-friendly menu with a 4-line display for easy operation and current limit control for safe operation. It is designed for minimal space requirements in the laboratory and is equipped with an instantaneous energy consumption indicator, total working hour counter, and control unit overheating sensor.
Optional Accessories:
- High Temperature Gloves
- Tongs
- Alumina Crucibles
- Metal Crucibles
- Alumina Combustion Boats
- Ceramic Pipes
- Extra Thermocouples
Optional Features:
- Over Temperature Limiter
- Lift-up Door
- Stainless Steel Body
- Gas Supply Connection
- Open Door Sensor
- Second Thermocouple
- Observation Hole
- PC Connection
- 110 V Power Supply
Spare Parts:
- Inner Module: Changing the inner module renews your furnace close to a brand-new furnace
- Door Insulation: With sheet metal holder vessel
- Control Card: Easy-to-replace, pre-programmed
- Power Card: Easy-to-replace
- Display: 4 x 20 LCD display
- Cooling Fan: 80 x 80 x 20 / 220 V fan
- Chimney Fan: 40 x 40 x 10 / 5V fan
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum temperature of this model is 1600 °C, making it suitable for high-temperature applications.
It utilizes MoSi₂ (Molybdenum disilicide) heating elements, which are vertically aligned next to the side walls for effective heating.
The temperature control accuracy is ± 1 °C, although it may vary at lower temperatures.
It is equipped with a sound warning feature that activates as the step changes and at the end of the program.
The inner chamber dimensions are 150 × 185 × 220 mm, allowing for a variety of sample sizes.
The furnace features a durable lining made of ceramic fibre board and insulating fire brick for effective thermal insulation.
It has a 4 × 20" LCD display that shows current and target temperatures, as well as other operational information.
Safety features include a control unit overheating sensor, automatic power cutoff for the heating element, and an open door sensor.
The net weight of this model is 110 kg, making it substantial for stability during operation.
Optional accessories include high temperature gloves, tongs, alumina crucibles, metal crucibles, and extra thermocouples.
