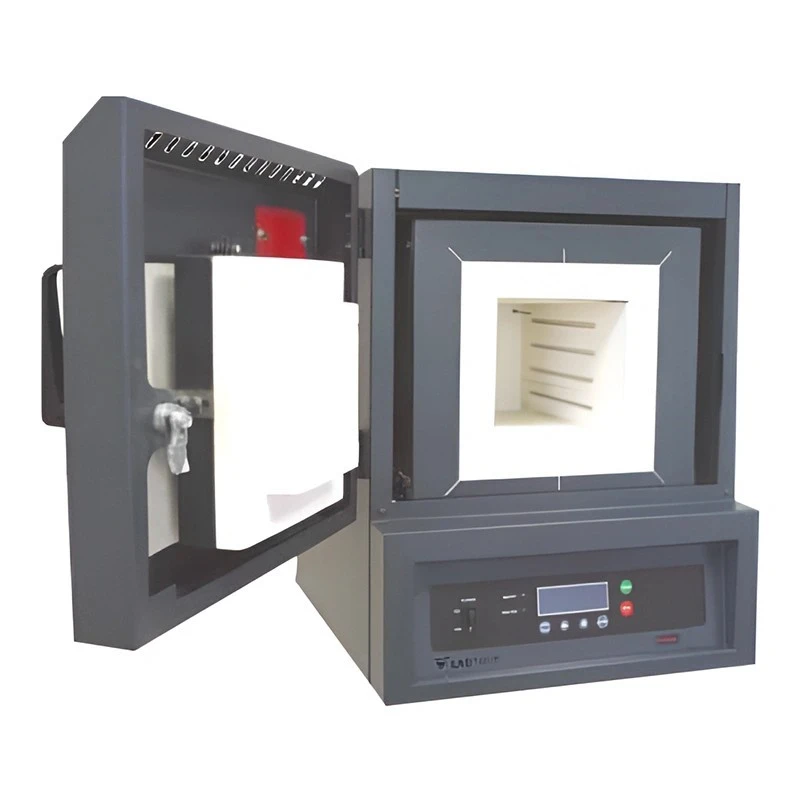

Muffle Furnace EMF-B12
Specifications
| Capacity | 5 L |
|---|---|
| Brand | Generic Brand |
| Power | 2000 W |
| Net Weight | 43 kg |
| Model | LMF-B12 |
| Max. Temperature | 1100°C |
| Gross Weight | 57 kg |
| Housing Material | Steel Sheet |
| Measurement Accuracy | ±1°C |
| Thermocouple Type | K Type |
| Heating element | Fe-Cr-Al |
| Max. current | 9A |
| Temperature Control Accuracy | ±1°C (can vary at low temperatures) |
| Inner Chamber Dimension (W × H × D) | 152 × 150 × 225 mm |
| Heating Program | 8 step |
| Thermal Rate | 3°C - 20°C |
| Program Memories | 6 |
| Heating Element Placement | Embedded into brick walls |
| Inner Insulation Material | Insulating Fire Brick |
| Front Face Insulation Material | Insulating Fire Brick |
| Door Insulation Material | Ceramic Fibre Board |
| Housing Coating | Epoxy powder coating |
| Chimney | Standard |
| Element Heating Element Protection | Quartz Tube |
| Lockable Door Handle | Sidewards |
| Inner Volume Temperature Homogeneity | ±10°C |
| Product Outer Dimension (W × H × D) | 448 × 618 × 620 mm |
| Gross Dimension (W × H × D) | 508 × 780 × 678 mm |
Key Features
- PID controller
- LCD display that shows current and target temperature
- Optimum insulation properties
- 2, 4, 8, and 16 step heating programs available
- Fe-Cr-Al heating element embedded in brick walls
- Accurate measurement and control of temperature using K and S type thermocouples
- Second thermocouple for different adjustable purposes
- Durable inside lining made of light insulating bricks
- Dual shell housing for low outer surface temperature
- Steel sheet housing material
- Insulating fire brick as inner and front face insulation material
- Ceramic fibre board as door insulation material
- Quartz tube used to protect heating element
- Provision of audio warning as the step changes and at the end of the program
- Provision of automatic power cut-off to the heating elements and alert if the control unit/control card is overheated
- Instantaneous energy consumption indicator
- Calculator for average working temperature
- Descriptive error indicator
- User-friendly menu
Product Description
LMF-B12 model of Muffle Furnace is a microprocessor-controlled furnace with steel sheet housing material and is efficiently designed for minimal space requirement in the laboratory. With heating elements such as Fe-Cr-Al embedded into bricks, K and S type thermocouple and optimum insulation properties, it is ideal for maximum or continuous working temperature of 1100°C. It is accurate in measuring and controlling the temperature and is equipped with instantaneous energy consumption indicator, calculator for average working temperature, and descriptive error indicator.
Applications:
It is used for applications such as: Fusing glass, Creating enamel coatings, Ceramics, Soldering, Brazing, Rubbers & Polymers, Metallurgical applications, Ash content determination, Research centers and medical laboratories to determine the volatile & non-combustible proportion of the sample.
Optional Accessories:
- High Temperature Gloves
- Tongs
- Alumina Crucibles
- Metal Crucibles
- Alumina Combustion Boats
- Ceramic Pipes
- Extra Thermocouples
Optional Features:
- Over Temperature Limiter
- Lift-up Door
- Stainless Steel body
- Gas Supply Connection
- Open Door Sensor
- Second Thermocouple
- Observation Hole
- PC Connection
- 110 V Power Supply
Spare Parts:
- Inner Module: Changing inner module renews your furnace close to a brand new furnace
- Door Insulation: With sheet metal holder vessel
- Control Card: Easy-to-replace, pre-programmed
- Power Card: Easy-to-replace
- Display: 4 x 20 LCD display
- Cooling Fan: 80 x 80 x 20 / 220 V fan
- Chimney Fan: 40 x 40 x 10 / 5V fan
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum working temperature of this model is 1100°C.
This muffle furnace has a power rating of 2000 W.
The inner chamber dimensions are 152 mm wide, 150 mm high, and 225 mm deep.
It uses K type thermocouples for accurate temperature measurement and control.
The net weight of this model is 43 kg, while the gross weight is 57 kg.
The housing is made of steel sheet, with insulating fire bricks for inner and front face insulation, and ceramic fibre board for door insulation.
The measurement accuracy is ±1°C, which can vary at low temperatures.
It supports up to 8 step heating programs.
Optional accessories include high temperature gloves, tongs, alumina crucibles, metal crucibles, alumina combustion boats, ceramic pipes, and extra thermocouples.
The thermal rate of this model ranges from 3°C to 20°C.
The outer dimensions of this muffle furnace are 448 mm wide, 618 mm high, and 620 mm deep.
