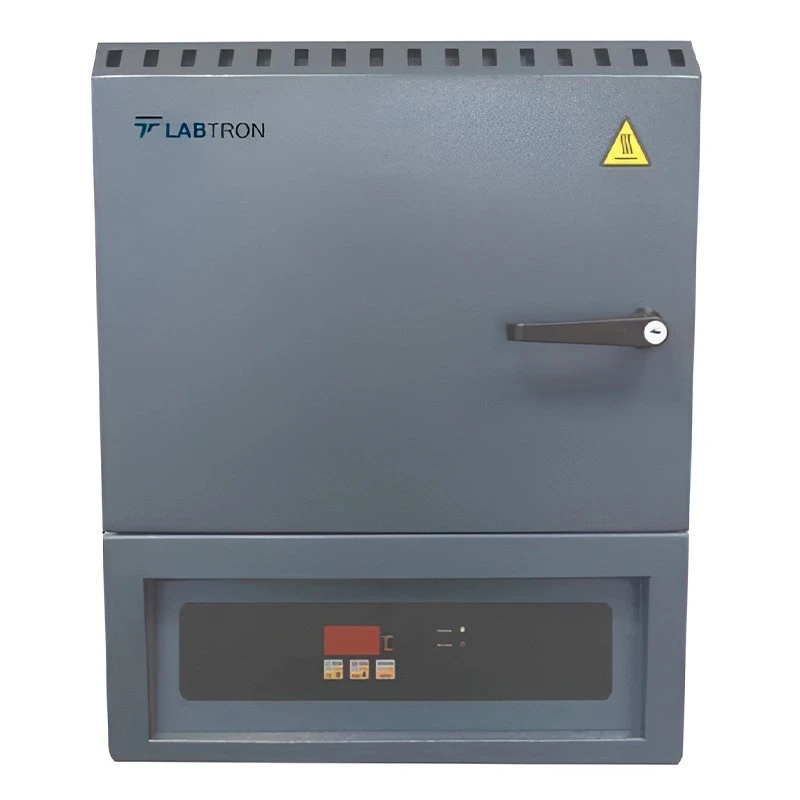

Muffle Furnace EMF-A10
Specifications
| Capacity | 3 L |
|---|---|
| Brand | Generic Brand |
| Power | 1500 W |
| Net Weight | 25 kg |
| Model | LMF-A10 |
| Max. Temperature | 950°C |
| Gross Weight | 35 KG |
| Housing Material | Steel Sheet |
| Measurement Accuracy | ±1°C |
| Thermocouple Type | K Type |
| Heating element | Fe-Cr-Al |
| Max. current | 7A |
| Temperature Control Accuracy | ±1°C |
| Inner Chamber Dimension (W × H × D) | 130 × 105 × 230 mm |
| Heating Program | Direct |
| Thermal Rate | 5°C - 25°C / min |
| Program Memories | 1 |
| Heating Element Placement | Embedded into brick walls |
| Inner Insulation Material | Insulating Fire Brick |
| Front Face Insulation Material | Ceramic Fibre Board |
| Door Insulation Material | Ceramic Fibre Board |
| Housing Coating | Epoxy powder coating |
| Chimney | Standard |
| Element Heating Element Protection | Quartz Tube |
| Lockable Door Handle | Sidewards |
| Inner Volume Temperature Homogeneity | ±10°C |
| Product Outer Dimension (W × H × D) | 336 × 434 × 533 mm |
| Gross Dimension (W × H × D) | 420 × 620 × 620 mm |
Key Features
- PID controller
- New mono block body design
- 7 segment display
- Optimum insulation properties
- Direct/ 2 step heating program
- Fe-Cr-Al heating element embedded in brick walls
- K-type thermocouple
- Dual shell housing for low outer surface temperature
- Ceramic fibre board as front face and door insulation material
- Audio warnings as the step changes and at the end of the program
- Provision of automatic power cut-off to the heating elements and alert if the control unit/ control card is over heated
- User friendly
Product Description
LMF-A10 model of Muffle Furnace is uniquely designed with optimum insulation properties and is ideal for ashing of food, plastic, and other organic materials. With heating elements Fe-Cr-Al embedded into the brick walls, K-type thermocouple, and dual shell housing for low outer surface temperature, it is perfect for continuous working process at 950°C.
Optional Accessories:
- High Temperature Gloves
- Tongs
- Alumina Crucibles
- Metal Crucibles
- Alumina Combustion Boats
- Ceramic Pipes
- Extra Thermocouple
Optional Features:
- Over Temperature Limiter
- Gas Supply Connection
- Observation Hole
- PC Connection
- 110 V Power Supply
Spare Parts:
- Inner Module: Changing inner module renews your furnace close to a brand new furnace
- Door Insulation: With sheet metal holder vessel
- PCB: Easy to replace. Pre-programmed
- Display Card: 7 segment, 3 digit
- Chimney Fan: 4 x 40 x 10 / 5 V fan
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum temperature of the Muffle Furnace EMF-A10 is 950°C.
It uses a K-type thermocouple for temperature measurement.
The power rating of this furnace is 1500 W.
The inner chamber dimensions are 130 mm in width, 105 mm in height, and 230 mm in depth.
The temperature control accuracy is ±1°C.
The inner insulation material is insulating fire brick, while the front face and door insulation material is ceramic fibre board.
The thermal rate of heating is between 5°C to 25°C per minute.
The net weight of this model is 25 kg, and the gross weight is 35 kg.
The heating element is made of Fe-Cr-Al and is embedded into the brick walls.
The outer dimensions of this furnace are 336 mm in width, 434 mm in height, and 533 mm in depth.
