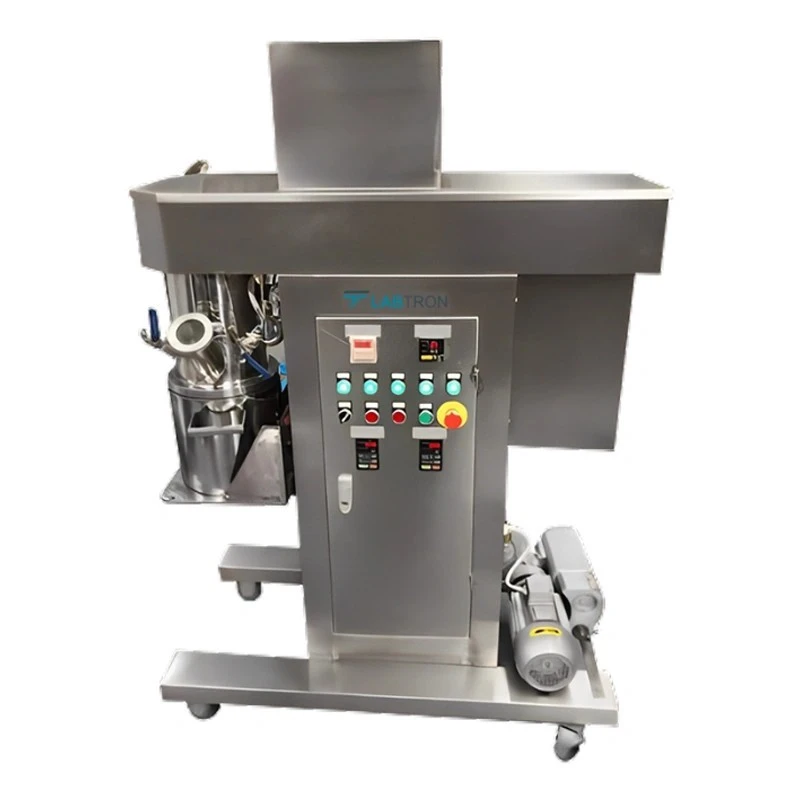

Labtron LPTM-A10 Planetary Mixer
Specifications
| Power Consumption | 4.2 KW |
|---|---|
| Brand | Labtron |
| Power Supply | 380V/50Hz/3Phase / Control - 220V |
| Dimension | 1300 × 1100 × 700 mm |
| Model | LPTM-A10 |
| Control Panel | Controls Vacuum / speed / temperature / spotlight / lift / emergency stop |
| Weight | 400 Kg |
| Safety Features | Auto-stop upper barrel / prevents operation during lifting / Vacuum buffer tank |
| Scraper | SUS304 and Teflon |
| Temperature measurement | 0 to 30°C / Probe near bottom |
| Vacuum system | ≤ -0.95 Mpa / Mechanical and O-ring seals / Pressure maintained for 12 hours |
| Barrel Body Volume | Design Volume - 10L / Effective Volume - 5L |
| Barrel Body Material | SUS304 / Mirror-polished |
| Cooling/Heating | G1/2" water inlet/outlet / Jacket for cold/hot water or oil |
| Upper Barrel | SUS304 / Feeding hopper / 1 spotlight / 2 windows / Vacuum port |
| Mixing Principle | Low-gap double paddles / strong kneading / Power - 1.5 kW |
| Revolution Motor | Frequency converter |
| Planetary Revolution Speed | Reducer ratio - i equal to 40.26 / 0 to 48 rpm / adjustable |
| Clearance Reference Value | Paddle to paddle - 10±2.5mm / Paddle to bottom - 2 to 6mm / Slurry to wall - 5±1.5mm |
| Stirring Paddle | Material - SUS304 / Quantity - 2 |
| Stirring Paddle Speed | 0 to 86 rpm / adjustable |
| Decentralized Motor | 1.5 kW |
| Dispersion Speed | 1450 rpm |
| Dispersing Disc Diameter | 60 mm |
| Lift (Pot Body) | Electric / Linear guide rail / Motor - 0.18 kW |
Key Features
- High-performance
- Electric pot body lifting mechanism
- Double stirring shaft
- Stainless steel barrel
- Mirror-polished inner tank
- Automatic stops and interlocks
- Special vacuum buffer tank design
Product Description
The Planetary Mixer LPTM-A10 is a high-performance, touch-screen mixer with an adjustable dispersion speed of 1450 rpm. It has a single direct material temperature measurement mode that enhances efficiency. The barrel has a 10L design volume and is 5L effective, made from SUS304 stainless steel. The vacuum system can maintain a vacuum degree of ≤-0.95Mpa, ensuring no oil leakage. Our mixer provides thorough mixing through strong kneading motions.
Applications:
Our planetary mixer is ideal for thorough and precise mixing in industrial and laboratory settings.
