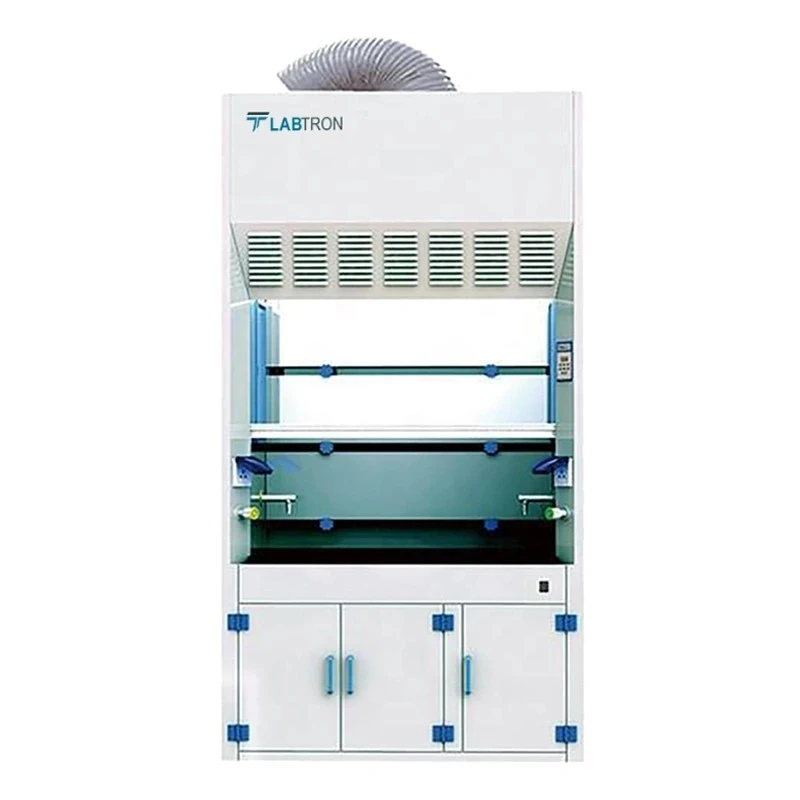

Labtron LPDF-A10 PP Ducted Fume Hood image-1

Free Delivery in India | Lowest Global Shipping Charges

PP Ducted Fume Hood EPDF-A10

Name: PP Ducted Fume Hood EPDF-A10
Brand: Generic Brand
SKU: ADCNR
Price: 69.5 USD
Availability: InStock



SKU ADCNR Category Laboratory Fume Hoods Brand Generic Brand Condition New

Specifications

Power Consumption	400 W
Relative Humidity	≤ 75%
Brand	Generic Brand
Power Supply	AC 220 V ±10% 50/60Hz / AC 110 V ±10% 60Hz
Net Weight	195 kg
Noise	≤ 68 dB
Model	LPDF-A10
Ambient Temperature (ºC)	15ºC to 35ºC
Blower	Built in PP centrifugal blower / speed adjustable
Pressure Range	70 to 106 KPa
Air Velocity	0.3 to 0.8 m/s
LED Lamp	9 W × 2
Work Surface Height	820 mm
Front Window	Manual / 5 mm toughened glass / Height adjustable
External Dimension (L × W × H)	1047 × 800 × 2450 mm
Internal Dimension (L × W × H)	787 × 560 × 700 mm
Work Table Material	Chemical resistant phenolic resin
Main Body Material	8 mm thickness
Maximum Opening	740 mm
Exhaust Duct	4.3 m × Ø250 mm
Main Body Packaging Dimension	1188 × 938 × 1612 mm
Base Cabinet Packaging Dimension	1188 × 888 × 1000 mm
Base Cabinet Gross Weight	80 kg
Main Body Gross Weight	137 kg

Key Features

LED display
Anti corrosive
Memory Function
Convenient Operation

Product Description

PP Ducted Fume Hood LPDF-A10 comes with an adjustable air velocity range of 0.3 to 0.8 m/s for efficient ventilation. It features a work surface height of 820 mm, a maximum opening of 740 mm. The main body is made of porcelain white PP, offering excellent resistance to acids, alkalis, and corrosion. Our PP ducted fume hood has an electrical control system, preventing electrical shocks.

Applications

The PP Ducted Fume Hood LPDF-A10 is commonly used in electronics, chemicals, machinery, medicine, universities, and laboratories.

Standard Accessories

LED light × 1, Worktable: chemical-resistant phenolic resin × 1, RVV power cord × 1, Base cabinet × 1, Waterproof socket × 2, Tail insert × 1, Water tap (PP) × 1, Gas tap (PP) × 1, Water sink × 1

Optional Accessories

PP worktable 786 × 602 × 12mm, Epoxy Resin Board 786 × 602 × 19 mm, Ceramic Board 786 × 602 × 20 mm

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The adjustable air velocity range is from 0.3 to 0.8 m/s, providing efficient ventilation.

The external dimensions are 1047 mm in length, 800 mm in width, and 2450 mm in height.

The maximum opening height of the front window is 740 mm, allowing for flexible access.

It requires a power supply of AC 220 V ±10% 50/60Hz or AC 110 V ±10% 60Hz.

The net weight of the PP Ducted Fume Hood LPDF-A10 is 195 kg.

The noise level is ≤ 68 dB during operation.

The ambient temperature range for operation is between 15ºC to 35ºC.

Included accessories are an LED light, a chemical-resistant phenolic resin worktable, RVV power cord, base cabinet, waterproof sockets, tail insert, water tap, gas tap, and a water sink.

It features a built-in PP centrifugal blower with adjustable speed.

The pressure range is from 70 to 106 KPa, ensuring effective fume extraction.

Optional accessories include a PP worktable, epoxy resin board, and ceramic board, each with specific dimensions.
