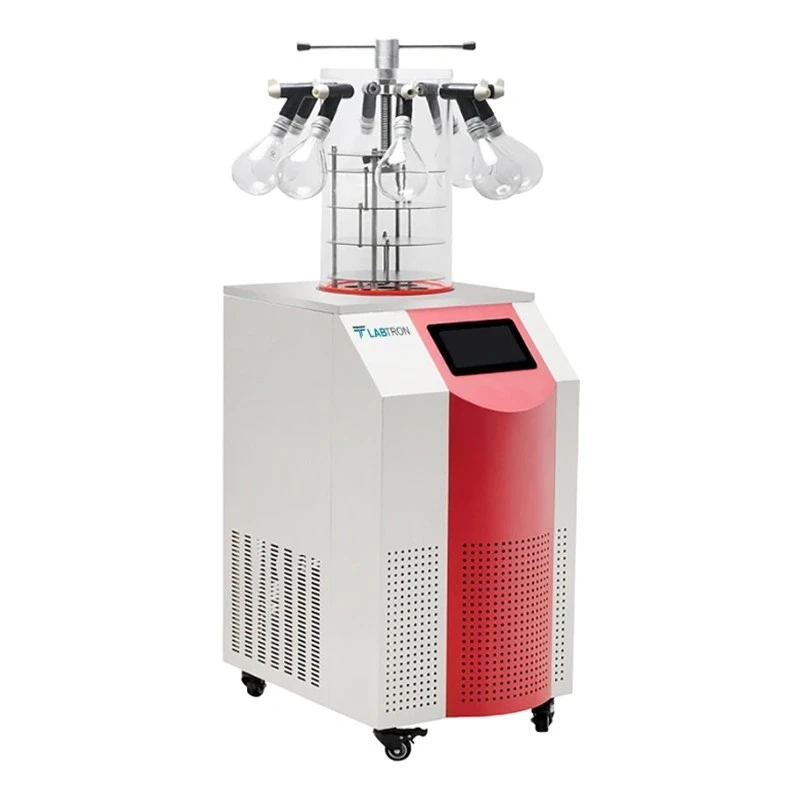

Floor Model Manifold Top Press Freeze Dryer EFFD-E12
Specifications
| Power Consumption | 1200W or 1700W |
|---|---|
| Brand | Generic Brand |
| Noise | Less than66db |
| Model | LFFD-E12 |
| Weight | 170kg |
| Vacuum Degree | Less than10 Pa |
| Material Loading Capacity | 1200ml or 1800ml |
| Ultimate Vacuum | 0.6Pa for -60°C or 0.3Pa for -80°C |
| USB interface | Yes |
| Condenser Temperature | -60°C or -80°C |
| Freeze Drying Area | 0.18m² or 0.27m² |
| Condenser Volume | 28L |
| Material Loading Capacity/Shelf | 300ml |
| Water Condenser Capacity | 6kg per 24h |
| Manifold | 8 pieces |
| Drying Chamber (Standard) | Transparent Acrylic |
| Vacuum Pump Speed | 2.2 L/sec |
| Electrical Voltage (V) | 220V |
| Electrical Frequency | 50Hz or 60Hz |
| Condenser Chamber Dimensions (W x H) | 300mm x 420mm |
| Sample Tray Dimensions (W x H) | 240mm x 20mm |
| Sample Shelf Dimensions (W x H) | 250mm x 391mm |
| Sample Shelf Distance | 81mm or 51mm |
| Vacuum Hood Dimensions (Upper/Lower) | 300mm x 450mm |
| Main Body Size (W x D x H) | 567mm x 710mm x 940mm |
| Exterior Dimensions (W x D x H) | 560mm x 710mm x 1390mm |
| Main Body Package Dimensions (W x D x H) | 790mm x 630mm x 1180mm |
| Vacuum Pump Package Dimensions (W x D x H) | 410mm x 410mm x 540mm |
| Hood Package Dimensions (W x D x H) | 220mm x 580mm x 370mm |
Key Features
- High-quality imported compressors
- User-friendly 7-inch touchscreen
- Automatic Lyophilization data saving
- Transparent PC observation cover
- KF quick-connect vacuum interface
- Stable, simple, low noise
- Pre-freezing cold trap functionality
- Vacuum pump protection feature
- Touch screen microprocessor control system
Product Description
Floor Model Manifold Top Press Freeze Dryer LFFD-E12 features a highly efficient condenser that ensures optimal cooling performance, with temperatures reaching as low as -60°C or -80°C. Designed for advanced freeze-drying processes, utilizing innovative manifold configuration to ensure superior drying efficiency. Integrated vacuum pump ensures high levels for effective moisture removal contributing to consistent results. The user-friendly digital control panel offers precise adjustments of parameters, making it easy to control cycles. Its large chamber capacity accommodates multiple samples for high-throughput operations.
Applications
Our Floor Model Manifold Top Press Freeze Dryer LFFD-E12 ensures precise freeze-drying of biological, pharmaceutical, and food samples, offering efficient moisture removal, extended shelf life, and enhanced stability for research and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum condenser temperature of this model is -80°C, with an ultimate vacuum of 0.3Pa at this temperature.
This unit weighs 170kg, making it suitable for stable installation in laboratory settings.
It operates at an electrical voltage of 220V and can function at either 50Hz or 60Hz frequency.
The material loading capacity is either 1200ml or 1800ml, depending on the configuration used.
The noise level of this model is less than 66dB, ensuring a quieter working environment.
The main body dimensions are 567mm in width, 710mm in depth, and 940mm in height.
The freeze drying area is available in two options: 0.18m² or 0.27m², allowing for flexibility in sample processing.
The vacuum degree can reach less than 10 Pa, which is essential for effective freeze-drying processes.
It features a touch screen microprocessor control system, allowing for precise parameter adjustments during operation.
The condenser volume is 28L, providing ample capacity for moisture removal during the freeze-drying process.
This model includes 8 pieces in its manifold configuration, enhancing its drying efficiency.
