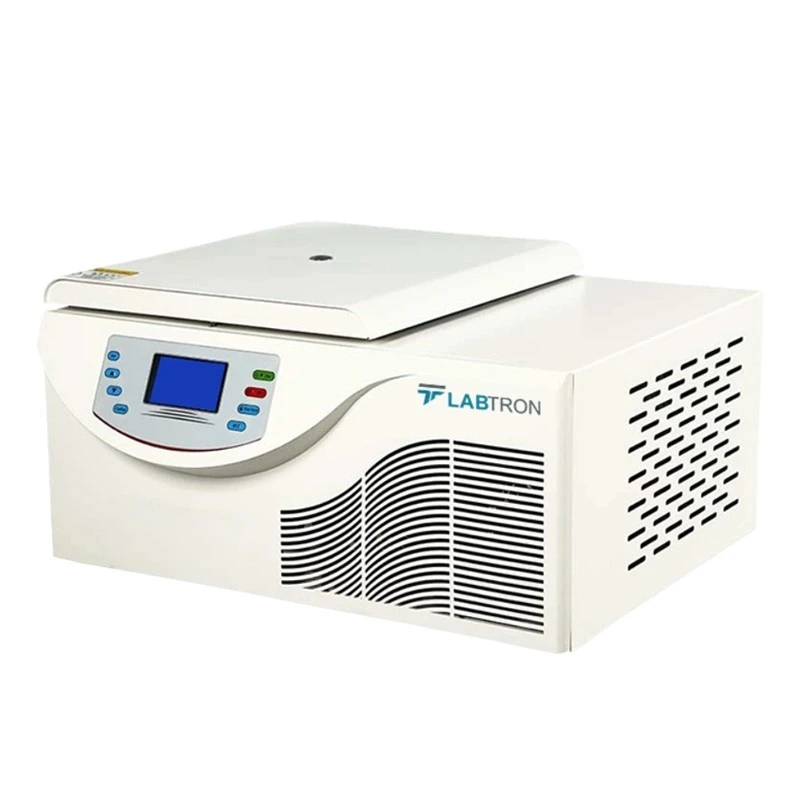

Refrigerated Centrifuge ERF-C31

Refrigerated Centrifuge LRF-C31 offers a maximum speed of 22000 rpm in a temperature range of -20℃ to 40℃. It maintains speed control by frequency conversion and a CFC compressor. This microprocessor control unit is fitted with an LCD for easy operation. Provided by both high-speed angle rotor and low-speed swing rotor options. Integrated by a safety interlock system that prevents centrifuge lid opening during operation.

Applications:

Refrigerated Centrifuge is used to separate substances of different densities within a solution, such as cells, proteins, or nucleic acids. It finds wide application in food processing industries, cell culture, and cell separation in biopharmaceutical/biotech industries.

Rotor Selection:

Angle Rotors

• Angle Rotor 01 → Maximum Capacity: 12×1.5/2.2 ml, Maximum Speed: 22000 rpm, Maximum RCF: 34700 × g
• Angle Rotor 02 → Maximum Capacity: 8/10/12×5ml, Maximum Speed: 16500 rpm, Maximum RCF: 18360 × g
• Angle Rotor 03 → Maximum Capacity: 12×10ml, Maximum Speed: 15000 rpm, Maximum RCF: 23120 × g
• Angle Rotor 04 → Maximum Capacity: 12×15ml, Maximum Speed: 15000 rpm, Maximum RCF: 23120 × g
• Angle Rotor 05 → Maximum Capacity: 6×30ml, Maximum Speed: 15000 rpm, Maximum RCF: 23120 × g
• Angle Rotor 06 → Maximum Capacity: 6×50ml, Maximum Speed: 13000 rpm, Maximum RCF: 17940 × g
• Angle Rotor 07 → Maximum Capacity: 8×50ml, Maximum Speed: 12000 rpm, Maximum RCF: 15045 × g
• Angle Rotor 08 → Maximum Capacity: 4×100ml, Maximum Speed: 10000 rpm, Maximum RCF: 9800 × g

Swing Rotors

• Swing Rotor 01 → Maximum Capacity: 4×500ml, Maximum Speed: 4000 rpm, Maximum RCF: 3500 × g
• Swing Rotor 02 → Maximum Capacity: 4×750ml, Maximum Speed: 4000 rpm, Maximum RCF: 3500 × g
• Swing Rotor 03 → Maximum Capacity: 72×2/5ml, Maximum Speed: 4000 rpm, Maximum RCF: 3020 × g
• Swing Rotor 04 → Maximum Capacity: 8×50/100ml, Maximum Speed: 4000 rpm, Maximum RCF: 3020 × g

MTP Rotor

• MTP Rotor → Maximum Capacity: 2×2×96 holes, Maximum Speed: 4000 rpm, Maximum RCF: 2300 × g
