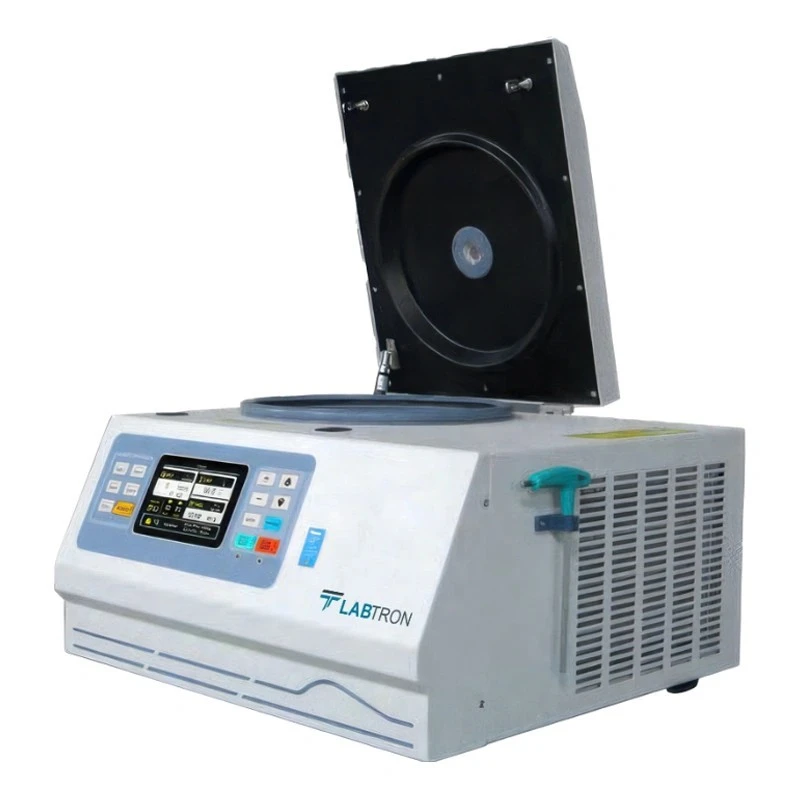

Refrigerated Centrifuge ERF-A13

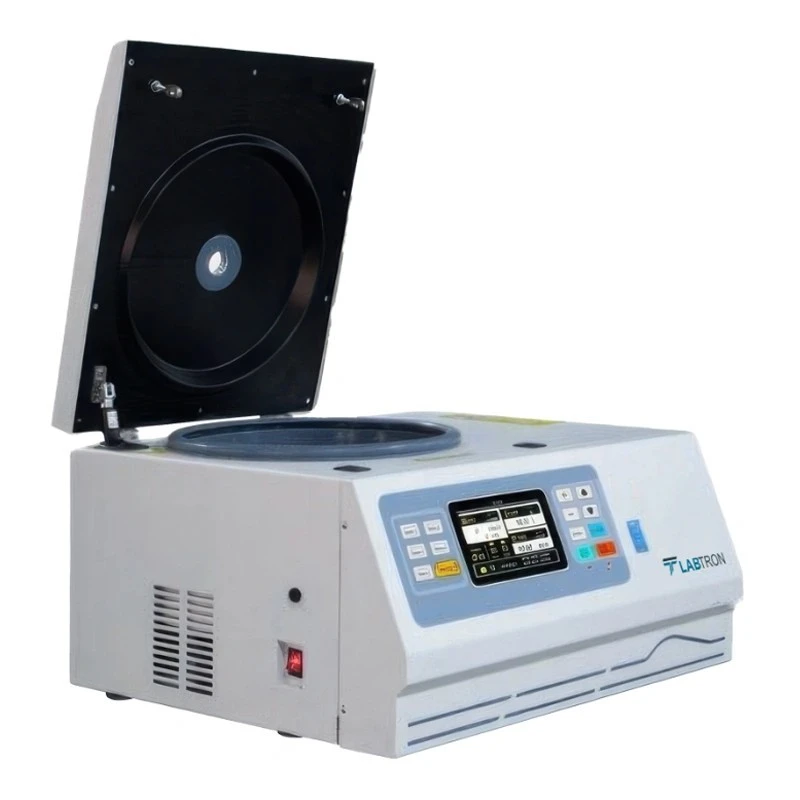

Refrigerated Centrifuge LRF-A13 features a maximum speed of 20,000 rpm and a maximum RCF of 31,115 × g, ensuring high-performance separation. This unit is equipped with special thermal insulation for optimal temperature control. It stores up to 99 program groups and includes a shortcut key for quick access. The front of the fuselage incorporates an operation SOP guide map for easier navigation. Designed with a full steel inner cavity protective cover, this centrifuge offers enhanced durability and safety for long-term use.

Applications

Refrigerated Centrifuge LRF-A13 is used to separate components of a mixture based on their size, shape, and density while maintaining a controlled low temperature. It is mainly used in blood separation, DNA/RNA isolation, protein purification, cell culture applications, subcellular fractionation, pharmaceutical research, environmental studies, food and beverage analysis.

Rotor Selection

• Angle Rotor 01, Max Speed: 20,000 rpm, Capacity: 16 × 1.5/2.0 ml, Max RCF: 30,677 × g
• Angle Rotor 02, Max Speed: 18,000 rpm, Capacity: 24 × 1.5/2.0 ml, Max RCF: 31,115 × g
• Angle Rotor 03, Max Speed: 16,000 rpm, Capacity: 12 × 5 ml, Max RCF: 17,344 × g
• Angle Rotor 04, Max Speed: 16,000 rpm, Capacity: 12 × 10 ml, Max RCF: 23,068 × g
• Angle Rotor 05, Max Speed: 16,000 rpm, Capacity: 32 × 1.5/2.0 ml, Max RCF: 26,044 × g
• Angle Rotor 06, Max Speed: 16,000 rpm, Capacity: 48 × 1.5/2.0 ml, Max RCF: 27,762 × g
• Angle Rotor 07, Max Speed: 14,000 rpm, Capacity: 12 × 15 ml (Conical bottom), Max RCF: 22,241 × g
• Angle Rotor 08, Max Speed: 13,000 rpm, Capacity: 6 × 50 ml (Round bottom), Max RCF: 17,146 × g
• Angle Rotor 09, Max Speed: 12,500 rpm, Capacity: 6 × 50 ml (Conical/round bottom), Max RCF: 17,608 × g
• Angle Rotor 10, Max Speed: 12,000 rpm, Capacity: 4 × 100 ml, Max RCF: 17,016 × g
• Angle Rotor 11, Max Speed: 12,000 rpm, Capacity: 6 × 100 ml, Max RCF: 17,548 × g
• Angle Rotor 12, Max Speed: 10,000 rpm, Capacity: 8 × 50 ml (Conical/round bottom), Max RCF: 12,611 × g
• Angle Rotor 13, Max Speed: 15,000 rpm, Capacity: 60 × 1.5 ml, Max RCF: 18,826 × g
• Angle Rotor 14, Max Speed: 5,000 rpm, Capacity: 40 × 15 ml (W), Max RCF: 4,919 × g

Swing-Out Rotors

• Swing-Out Rotor 01, Max Speed: 5,000 rpm, Capacity: 4 × 100 ml, Max RCF: 3,717 × g
• Swing-Out Rotor 02, Max Speed: 4,200 rpm, Capacity: 4 × 250 ml (Round bucket), Max RCF: 3,352 × g
• Swing-Out Rotor 03, Max Speed: 4,200 rpm, Capacity: 4 × 250 ml (Square bucket), Max RCF: 3,352 × g
• Swing-Out Rotor 04, Max Speed: 4,200 rpm, Capacity: Micro-plate 2 × 2 × 96 hole, Max RCF: 2,267 × g
