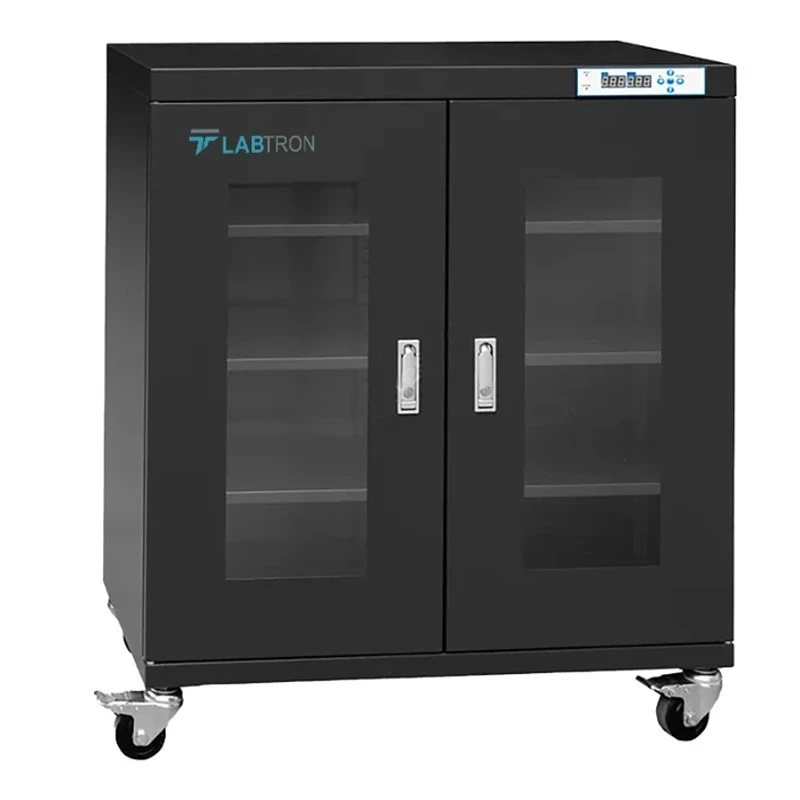

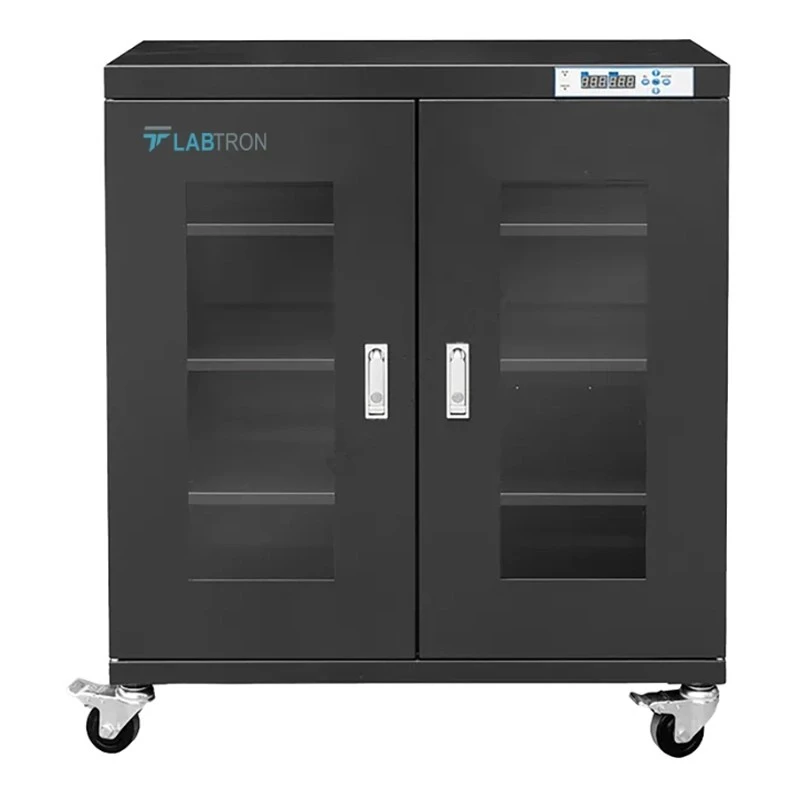

Dry Storage Cabinet EDYS-C13
Specifications
| Power Consumption | 8 W |
|---|---|
| Capacity | 320 L |
| Brand | Generic Brand |
| Color | Dark Blue |
| Net Weight | 54 Kg |
| Humidity | Less than 10%RH Automatic |
| Recovery time | Maximum 30 min after opened and closed for 30 seconds |
| Model | LDYS-C13 |
| Gross Weight | 70 kg |
| Shelves | 3 pcs |
| Interior Dimension (W × D × H) | 898 × 422 × 848 mm |
| Exterior Dimension (W × D × H) | 900 × 450 × 1010 mm |
| Maximum Load per Shelf | 80 Kg |
Key Features
- Flat press lock
- Tempered glass window
- Galvanized steel
- Memory function
- ESD safe PU castors
Product Description
Dry Storage Cabinet LDYS-C13 has a 320L capacity and maintains humidity automatically below 10% RH. The cabinet features advanced dehumidifying technology for optimal storage conditions. Its durable construction protects against cracking and ineffective welding. It includes a powerful molecular sieve dry unit for long-term use. The cabinet offers reliable performance with minimal maintenance. This cabinet provides the best storage solution for your electronic and semiconductor needs.
Applications:
This dry storage cabinet LDYS-C13 is ideal for protecting moisture-sensitive components in the electronics and semiconductor industries. It is widely used for PCB assembly, SMT components, IC chips, tapes, reels, and PWB storage.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It maintains humidity automatically below 10% RH, utilizing advanced dehumidifying technology for optimal storage conditions.
The exterior dimensions are 900 mm in width, 450 mm in depth, and 1010 mm in height.
The net weight of this model is 54 kg.
It includes three shelves, each capable of holding a maximum load of 80 kg.
The maximum recovery time is 30 minutes after the cabinet has been opened and closed for 30 seconds.
The cabinet features a durable construction with a tempered glass window and galvanized steel, ensuring protection against cracking and ineffective welding.
It is available in a dark blue color.
The power consumption is 8 watts, making it energy efficient for continuous use.
It is ideal for protecting moisture-sensitive components in the electronics and semiconductor industries, including PCB assembly and IC chip storage.
The interior dimensions are 898 mm in width, 422 mm in depth, and 848 mm in height.
Yes, the cabinet is designed to be ESD safe, making it suitable for sensitive electronic components.
