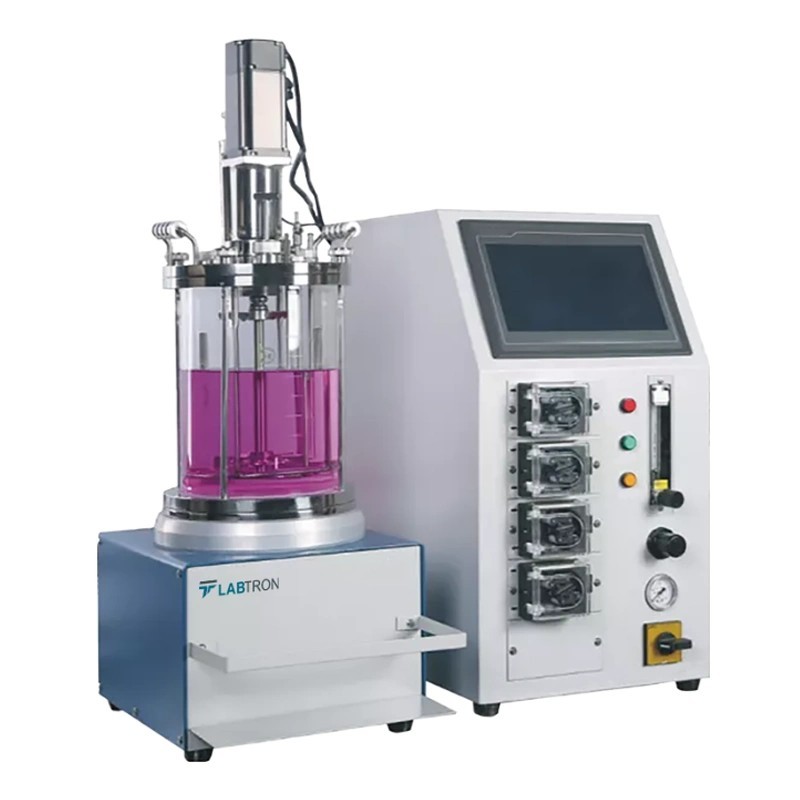

Labtron LGTB-A10 Glass Tank Bioreactor
Specifications
| Capacity | 5 L |
|---|---|
| Brand | Labtron |
| Dimension | 850 × 700 × 980 mm |
| Power | 220v/50hz |
| Net Weight | 88 kg |
| Working Pressure | 0.15 Mpa |
| Model | LGTB-A10 |
| Tank Material | Stainless steel SUS316 combined with borosilicate glass |
| Temperature Sensor | German Pt100 electrode |
| Gross Weight | 97 kg |
| Surface Treatment | Internal and external mirror polishing |
| Flow Control | Rotameter manual control |
| Sterilization Time | 30 minutes at 121°C |
| Design Pressure | 0.2 Mpa |
| Sterilization temperature | 121°C |
| Sterilization Temperature Range | 100 to 130°C |
| Maximum Working Volume | 0.7 |
| Maximum Sterilization Temperature | 131°C |
| Diameter-to-Height Ratio of the Tank | About 1 -2 |
| Internal Surface Accuracy | Less than 0.4 μm to reduce contamination |
| External Surface Accuracy | Less than 0.6 μm |
| Maximum Ventilation Rate | Up to 2 VVM (Volume of Gas per Volume of Culture per Minute) |
| Air Filter Element Accuracy | 0.2 μm |
| Flow Meter Range | 0 to 8L/min |
| Mixing Control Type | PID Automatic Control |
| Mixing Speed Regulation | Stepless Speed Regulation |
| Mixing Speed Range | 50 to 1000 RPM |
| Mixing Control Accuracy | ±0.5% |
| Cooling Water Temperature | 5°C to 65°C / ±0.2°C |
| Display Temperature | 0°C to 150°C / ±0.1°C |
| pH Display Range | 0.00 to 14.00 / ±0.01 |
| pH Automatic Control Range | 2.00 to 12.00 / ±0.01 |
| pH Control System | PID intelligent control |
| DO Control | DO Electrode - Swiss imported electrode with shielded wire detection / DO Control Range - 0% to 150% / ±3% / DO Control Resolution - 0.1% |
| Foam Control | Peristaltic pump automatically adds defoamer based on foam detection / with time ratio adjustment |
| Foam Control Accuracy | 10 to 100 /000 Ω |
Key Features
- High-temperature resistant PTFE filter element
- 316L stainless steel gas distributor
- Data recording and analysis function
- Peristaltic pump with switch control
- Defoaming blade
- Stores large data
- Alarm function for limits
- Biological process controller
Product Description
Glass Tank Bioreactor LGTB-A10 offers a 5-liter capacity and operates with a sterilization temperature of 121°C. It features an upper mechanical stirrer with a stainless-steel shaft for stable and precise mixing. Our unit includes an exhaust system with a tail gas discharge condenser and a hose connection for efficient operation. The tank is constructed with SUS316L stainless steel and borosilicate glass, ensuring durability. It includes an intuitive touch interface for easy operation and control.
Applications:
Glass Tank Bioreactor is used for precise control of biological and chemical processes, ensuring optimal conditions. It is employed in laboratories, research facilities, and industries.
Standard Accessories:
- Four serum supplement bottles
- Air filter
- Breathing filter
- 20 meters high-quality silicone tube
- SUS316L feed needle
- Rubber stoppers
- O-rings
- Fuses
Tank Interface Cover:1 flame ring inoculation port / 1 pH sensor interface / 1 DO sensor interface / 1 temperature sensor interface / 2 spare ports (for feeding / adding defoamer / and adding acid and alkali) / Integrated foam sensor / Exhaust port with a condensing device
