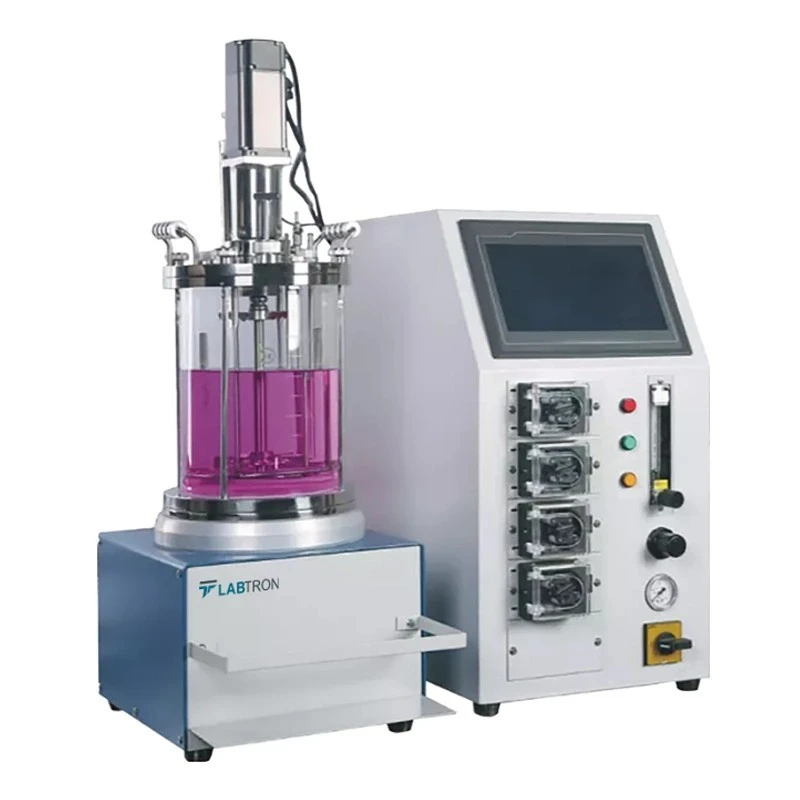

Glass Tank Bioreactor EGTB-A10
Specifications
| Capacity | 5 L |
|---|---|
| Brand | Generic Brand |
| Dimension | 850 × 700 × 980 mm |
| Power | 220v/50hz |
| Net Weight | 88 kg |
| Working Pressure | 0.15 Mpa |
| Model | LGTB-A10 |
| Tank Material | Stainless steel SUS316 combined with borosilicate glass |
| Temperature Sensor | German Pt100 electrode |
| Gross Weight | 97 kg |
| Surface Treatment | Internal and external mirror polishing |
| Flow Control | Rotameter manual control |
| Sterilization Time | 30 minutes at 121°C |
| Design Pressure | 0.2 Mpa |
| Sterilization temperature | 121°C |
| Sterilization Temperature Range | 100 to 130°C |
| Maximum Working Volume | 0.7 |
| Maximum Sterilization Temperature | 131°C |
| Diameter-to-Height Ratio of the Tank | About 1 -2 |
| Internal Surface Accuracy | Less than 0.4 μm to reduce contamination |
| External Surface Accuracy | Less than 0.6 μm |
| Maximum Ventilation Rate | Up to 2 VVM (Volume of Gas per Volume of Culture per Minute) |
| Air Filter Element Accuracy | 0.2 μm |
| Flow Meter Range | 0 to 8L/min |
| Mixing Control Type | PID Automatic Control |
| Mixing Speed Regulation | Stepless Speed Regulation |
| Mixing Speed Range | 50 to 1000 RPM |
| Mixing Control Accuracy | ±0.5% |
| Cooling Water Temperature | 5°C to 65°C / ±0.2°C |
| Display Temperature | 0°C to 150°C / ±0.1°C |
| pH Display Range | 0.00 to 14.00 / ±0.01 |
| pH Automatic Control Range | 2.00 to 12.00 / ±0.01 |
| pH Control System | PID intelligent control |
| DO Control | DO Electrode - Swiss imported electrode with shielded wire detection / DO Control Range - 0% to 150% / ±3% / DO Control Resolution - 0.1% |
| Foam Control | Peristaltic pump automatically adds defoamer based on foam detection / with time ratio adjustment |
| Foam Control Accuracy | 10 to 100 /000 Ω |
Key Features
- High-temperature resistant PTFE filter element
- 316L stainless steel gas distributor
- Data recording and analysis function
- Peristaltic pump with switch control
- Defoaming blade
- Stores large data
- Alarm function for limits
- Biological process controller
Product Description
Glass Tank Bioreactor LGTB-A10 offers a 5-liter capacity and operates with a sterilization temperature of 121°C. It features an upper mechanical stirrer with a stainless-steel shaft for stable and precise mixing. Our unit includes an exhaust system with a tail gas discharge condenser and a hose connection for efficient operation. The tank is constructed with SUS316L stainless steel and borosilicate glass, ensuring durability. It includes an intuitive touch interface for easy operation and control.
Applications:
Glass Tank Bioreactor is used for precise control of biological and chemical processes, ensuring optimal conditions. It is employed in laboratories, research facilities, and industries.
Standard Accessories:
- Four serum supplement bottles
- Air filter
- Breathing filter
- 20 meters high-quality silicone tube
- SUS316L feed needle
- Rubber stoppers
- O-rings
- Fuses
Tank Interface Cover:1 flame ring inoculation port / 1 pH sensor interface / 1 DO sensor interface / 1 temperature sensor interface / 2 spare ports (for feeding / adding defoamer / and adding acid and alkali) / Integrated foam sensor / Exhaust port with a condensing device
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tank is constructed from SUS316L stainless steel combined with borosilicate glass, ensuring durability and resistance to high temperatures.
The sterilization temperature for this bioreactor is set at 121°C, with a maximum sterilization temperature of 131°C.
The mixing speed of this model can be regulated from 50 to 1000 RPM, allowing for precise control over the mixing process.
It features a peristaltic pump that automatically adds defoamer based on foam detection, with adjustable time ratios for effective foam management.
The working pressure for this unit is 0.15 Mpa, which is essential for maintaining optimal operating conditions.
The dimensions of this model are 850 × 700 × 980 mm, which is important for planning installation and workspace.
It utilizes a German Pt100 electrode for accurate temperature measurement and control during operations.
The maximum ventilation rate is up to 2 VVM (Volume of Gas per Volume of Culture per Minute), facilitating efficient gas exchange.
The pH display range is from 0.00 to 14.00, with an accuracy of ±0.01, allowing for precise monitoring of pH levels.
Mixing control is achieved through PID automatic control, ensuring stable and accurate mixing conditions throughout the process.
