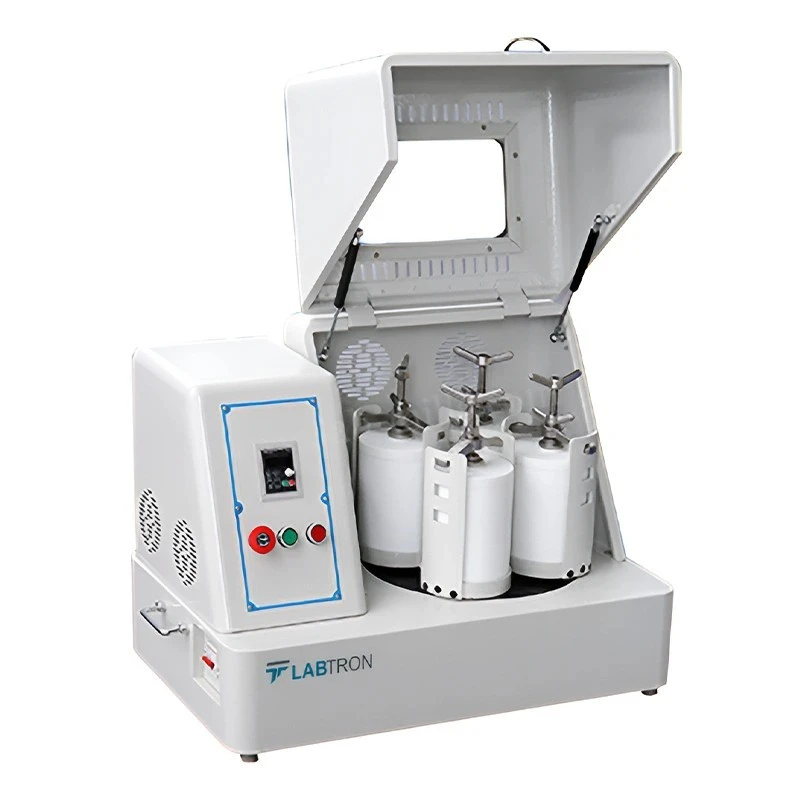

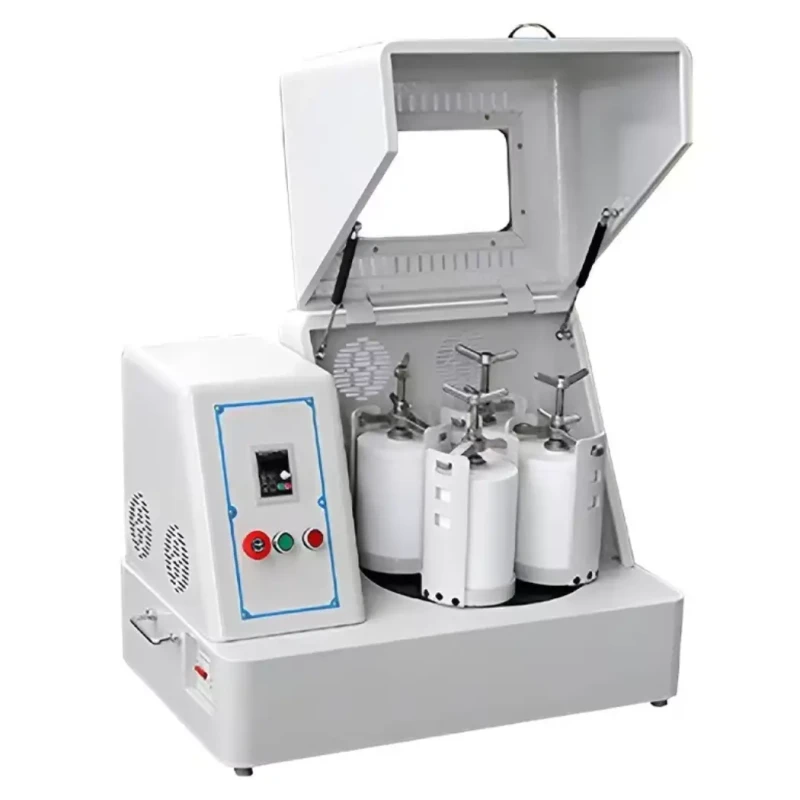

Vertical Planetary Ball Mill EPBM-A10
Specifications
| Brand | Generic Brand |
|---|---|
| Power Supply | 220V - 50Hz / 110V - 60Hz |
| Dimension | 750 × 470 × 590 mm |
| Model | EPBM-A10 |
| Work Mode | 2 or 4 jars working together |
| Weight | 80 KG |
| Operating Time | 72 hours |
| Certificate | ISO 9001 / CE certificate |
| Revolution | Rotation |
| Drive Mode | Gear drive |
| Jar Capacity | 500 ml |
| Material Capacity | Less than 2/3 volume |
| Input Granularity Size | Less than 10 mm for soft Material / Less than 3 mm for hard Material |
| Output Granularity Size | Minimum 0.1 μm |
| Feed Material | Soft / hard / brittle / fibrous / cellulose / herb / glass / soil / ore / pharmacy / chemical / fluorescent / pigment / etc. |
| Rotational Speed | 70 to 670 r/min (adjustable) |
| Milling Mode | Dry or wet milling |
| Speed Frequency | Adjustable |
| Operation Interval | Yes / with direction reversal |
| Grinding Jar Types | Stainless steel / zirconia / alumina / nylon / PU / tungsten / PTFE / etc. / vacuum jars are available as well. |
Key Features
- Low center of gravity and easy operation
- Features a touch screen micro-computer
- Lower noise and minimal loss
- A safety switch is installed to prevent accidents
- Forward and reverse alternating control
- Timing and power-off memory function
Product Description
Vertical Planetary Ball Mill EPBM-A10 can rotate with an adjustable speed range of 70 to 670 r/min. The machine is controlled by a frequency converter, with a motor protection function. It can produce four powder samples of different sizes and materials simultaneously. It features timing power off, self-timing forward and reverse rotation. Our ball mill uses the planetary movement principle, offering high speed, large energy, high efficiency, and fine granularity.
Applications:
Vertical Planetary Ball Mill EPBM-A10 is applicable in many fields, including geology, mining, metallurgy, the electric industry, construction, ceramics, chemicals, light industry, medicine, and environmental protection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rotational speed of this model can be adjusted from 70 to 670 r/min.
This model can process a variety of materials including soft, hard, brittle, fibrous, cellulose, herb, glass, soil, ore, pharmacy, chemical, fluorescent, and pigment.
The input granularity size should be less than 10 mm for soft materials and less than 3 mm for hard materials.
The minimum output granularity size is 0.1 μm.
The dimensions of this unit are 750 × 470 × 590 mm.
This model weighs 80 KG.
It operates on a power supply of either 220V - 50Hz or 110V - 60Hz.
It holds ISO 9001 and CE certifications.
Yes, it is capable of both dry and wet milling.
