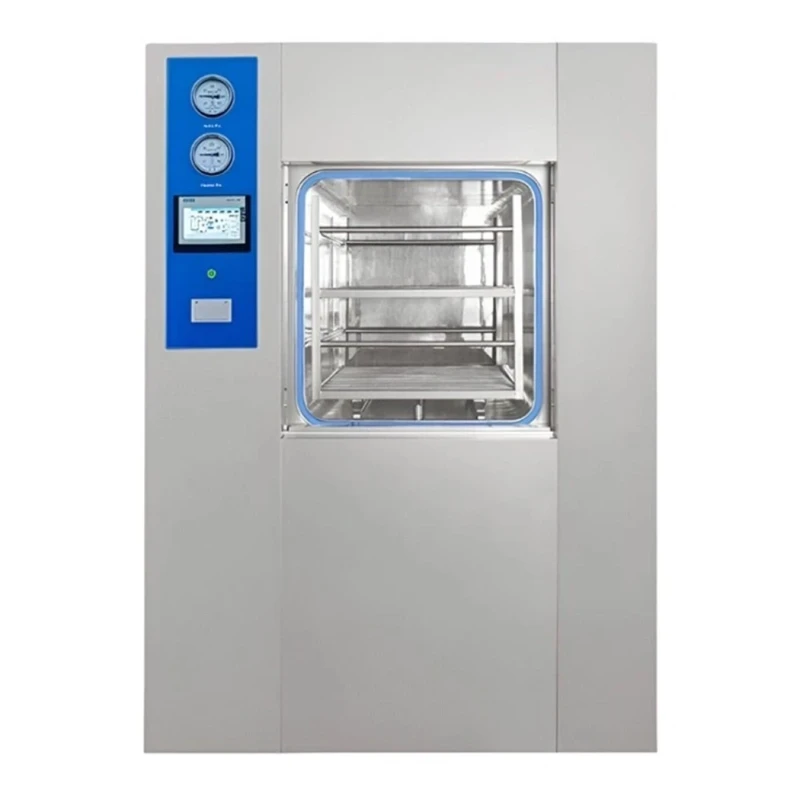

Horizontal Autoclave EHA-D22
Specifications
| Power Consumption | 14KW |
|---|---|
| Display | 7-inch color touch screen |
| Capacity | 150L |
| Brand | Generic Brand |
| Power Supply | 220/380V / 50/60Hz |
| Net Weight | 550kg |
| Water Source | 0.15 to 0.3 MPa |
| Model | EHA-D22 |
| Gross Weight | 880kg |
| Control System | Siemens PLC + HMI + Printer |
| Working Temperature range | 105°C to 138°C |
| Design temperature | 150°C |
| Steam pressure | 0.3 to 0.6 MPa |
| Water Consumption | 80Kg per cycle |
| Working pressure range | 0 to 0.25 MPa |
| Temperature Control Accuracy | ≤ ± 0.2°C |
| Steam Consumption | 12Kg per cycle |
| Temperature Display Accuracy | 0.1°C |
| Sterilization and Drying Time | 0 to 999 min |
| Vacuum Rate | -97 KPa |
| Temperature Equilibrium | Less than or equal to ± 0.5°C |
| Safety Valve Open Pressure | 0.28 MPa |
| Compressed Air Source | 0.4 MPa to 0.7 MPa |

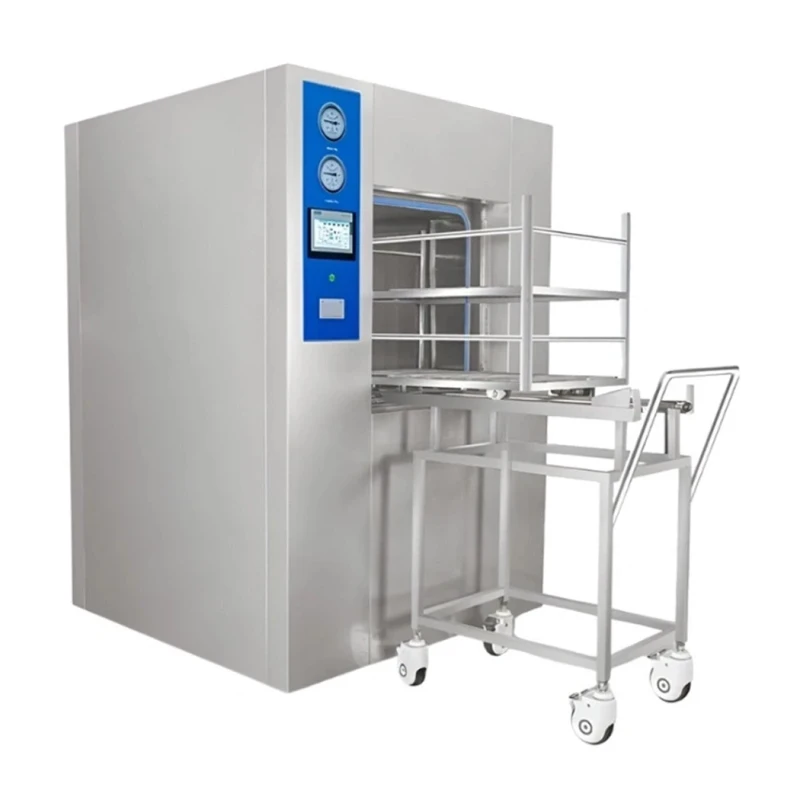

| Loading System | Loading cart + Transfer trolley |
| Internal Dimension (W×D×H) | 450mm × 450mm × 750mm |
| External Dimension (W×D×H) | 1190mm × 1700mm × 1100mm |
| Packaging Dimension (W×D×H) | 1400mm × 1950mm × 1550mm |
Key Features
- Front loading fully automatic
- Automatic vertical sliding double door
- Liquid ring vacuum pump, Pre-vacuum and Post-vacuum
- Compatible Soft, purified and deionized water
- Uses external steam source
- Includes Built-in feeding pump and water tank
- CAD aided design
- Finite Element Analysis
- Triple-Layer Structure
- Automatic Plasma Welding
- Advanced Insulation Layer
- Pneumatic Sealing Door
- Intelligent Control System
- Medical-Grade Pipelines
- Efficient Vacuum System
- Comprehensive Alarm System
- Remote Monitoring Capability
Product Description
Horizontal Autoclave EHA-D22 includes efficient heating elements that enable rapid sterilization cycles within a temperature range of 105℃ to 138℃. Its advanced microprocessor controller ensures precise thermal and pressure regulation. The autoclave features an automatic pressure release valve to enhance operator safety and prevent overpressure situations. A digital display provides real-time monitoring of heating, pressure, and cycle status. Additionally, a safety interlock mechanism prevents accidental door opening during high-pressure operations, ensuring secure and reliable sterilization.
Applications
This Horizontal Autoclave EHA-D22 provides efficient sterilization with precise temperature control, vacuum drying, and automatic operation, making it ideal for laboratories, medical facilities, and research applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a temperature range of 105°C to 138°C.
The power consumption is 14KW.
It is equipped with a 7-inch color touch screen for user interface.
The net weight is 550 kg.
The external dimensions are 1190mm × 1700mm × 1100mm.
The steam pressure range is from 0.3 to 0.6 MPa.
It includes an automatic pressure release valve and a safety interlock mechanism to prevent accidental door opening during high-pressure operations.
The water consumption is 80 kg per cycle.
It utilizes a Siemens PLC control system along with HMI and a printer.
The temperature control accuracy is within ± 0.2°C.
The vacuum rate is -97 KPa.
