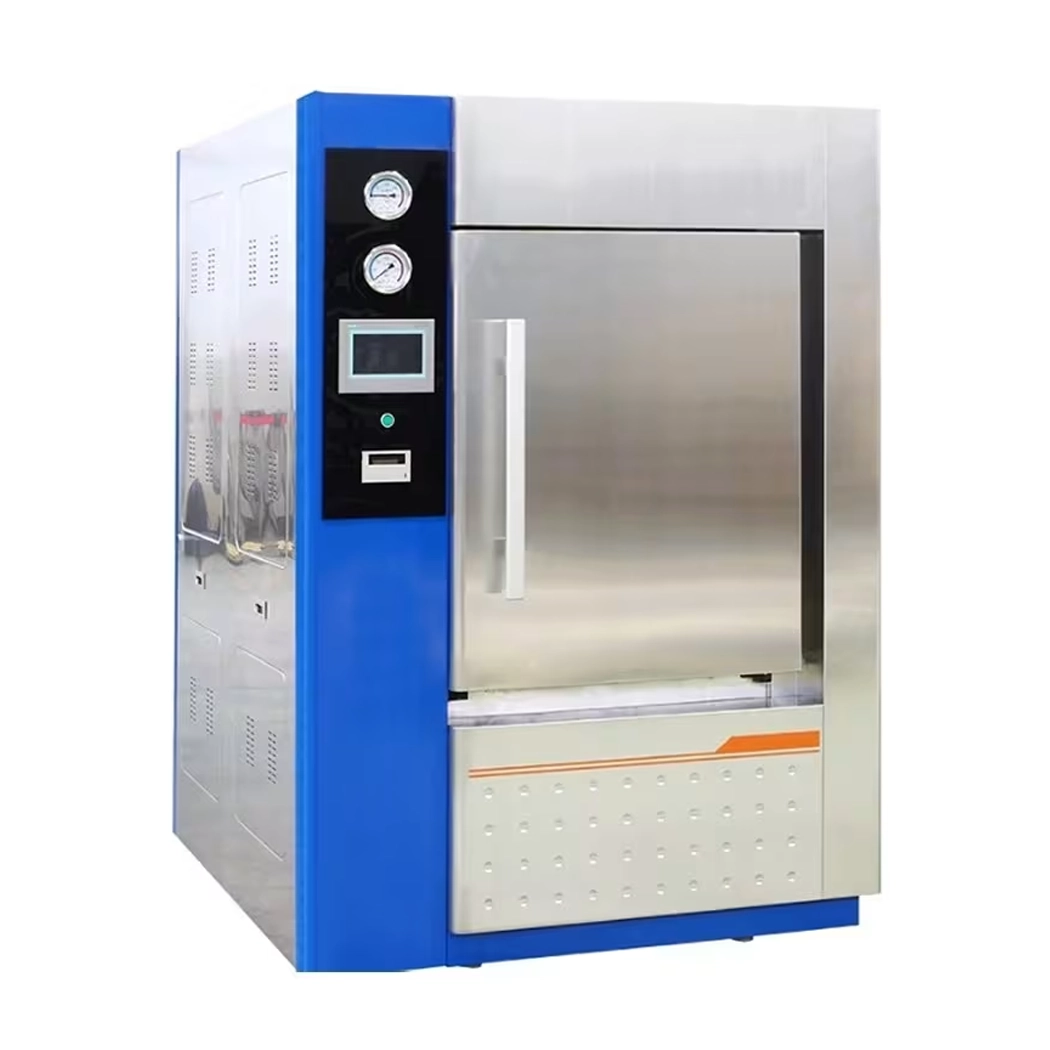

Horizontal Autoclave EHA-D21
Specifications
| Power Consumption | 4 kw |
|---|---|
| Capacity | 1500L |
| Brand | Generic Brand |
| Power Supply | 380V / 50Hz |
| Operating Temperature | 150°C |
| Model | EHA-D21 |
| Weight | 1850 kg |
| Temperature Uniformity | ±1°C |
| Steam Consumption | 80 Kg/C |
| Max. Working Temperature | 139°C |
| Inner Chamber Pressure | -0.1 to 0.3 MPa |
| Jacket Pressure | 0.3 MPa |
| Safety Valves Pressure | 0.28 MPa |
| Tap Water Consumption | 750 Kg/C |
| Vacuum Leakage Rate | ≤0.13 KPa/min |
| Ultimate Vacuum Rate | -97 KPa |
| Negative Pressure | Amplitude of -80 to 0 KPa / Times 1-99 |
| Positive Pressure | Amplitude of -80 to 80 KPa / Times 1-3 |
| Tank Size (W × H × D) | 680 × 1180 × 1900 mm |
| Overall Dimension (L × W × H) | 2220 × 1490 × 2050 mm |
Key Features
- S30408 stainless steel pipes with clamp joints
- GEMU and SEW Euro drive valves and pumps
- Large color touch screen with PLC control
- Intelligent maintenance system
- Optional water-ring vacuum pump
- Optional remote monitoring
Product Description
Horizontal Autoclave EHA-D21 operates at a temperature of 150°C and has a 1500 L capacity. It utilizes saturated steam as the sterilizing medium, ensuring effective sterilization. Constructed from high-quality S30408 stainless steel, it is designed for enhanced durability. The jacket is insulated with premium Q245R material and pearl sand for optimal thermal efficiency. Additionally, this autoclave features a double pulsation process, ensuring thorough sterilization and superior drying performance.
Applications
Our Horizontal Autoclave is used in hospitals, third-party disinfecting centers, and medical operations for sterilizing medical devices, dressings, rubber, lumen devices, implantable devices, and liquids.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a maximum temperature of 150°C.
The overall dimensions are 2220 mm in length, 1490 mm in width, and 2050 mm in height.
It weighs 1850 kg.
It utilizes saturated steam as the sterilizing medium for effective sterilization.
The power supply required is 380V at 50Hz.
The steam consumption rate is 80 kg per cycle.
The temperature uniformity is ±1°C.
The vacuum leakage rate is ≤0.13 KPa/min.
The ultimate vacuum rate is -97 KPa.
It is constructed from S30408 stainless steel and features insulation with Q245R material and pearl sand for thermal efficiency.
