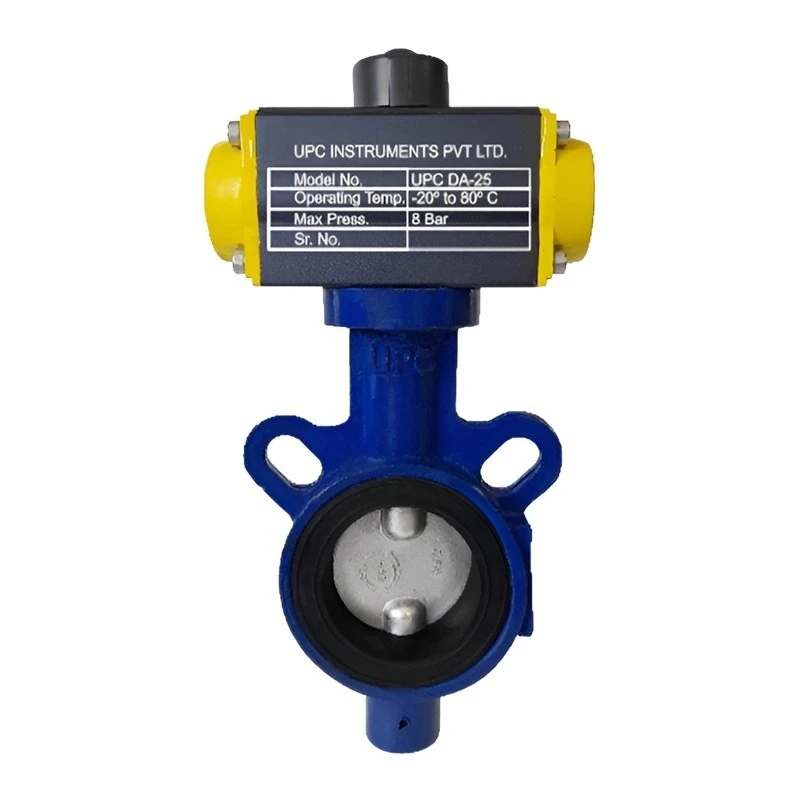

Wafer Type 500 mm Semi-Lugged Pneumatic Actuator Operated Butterfly Valve With CF8M (Disc)
Specifications
| Size | 500 mm |
|---|---|
| Brand | UPC |
| Body Material | Cast Iron (Grade FG200) |
| Model | UPC-PBV-416 |
| Standard | IS212 |
| Type of Product | Butterfly Valve |
| Test Pressure | B.T.P. 24 Bar Hyd. & S.T.P. 17.6 Bar Hyd. |
| Type of Seat | EPDM |
| Type of disc | CF8M |
| Actuator | Double Acting Type with Air Pressure of 8 Bar (Maximum) |
| End Details | Suitable for insertion between BS4504 PN10 / 16 & ASME B16.5 # 150 & BS10 Table D/E Flanges |
| Trim Stem | 13% Cr. SS (ASTM A276 Gr. 410) |
Key Features
- Wafer type semi-lugged design for stable and secure mounting
- Pneumatic actuator for fast and automated flow control
- CF8M (316 Stainless Steel) disc for superior corrosion and chemical resistance
- Low torque operation for energy-efficient performance
- Lightweight and compact design for easy installation
- Minimal pressure loss for efficient fluid movement
- Leak-proof sealing for reliable shutoff and smooth operation
- Suitable for high-temperature and chemically aggressive environments
- Ideal for water treatment, chemical processing, food & beverage, and marine applications
- Long-lasting durability with low maintenance requirements
Product Description
UPC Wafer Type 500 mm Semi-Lugged Pneumatic Actuator Operated Butterfly Valve With CF8M (Disc) is a high-efficiency flow control valve, designed for industrial and commercial applications that require automated operation and corrosion resistance. Equipped with a pneumatic actuator, this valve ensures quick and precise flow control, making it ideal for water treatment, chemical processing, food & beverage, pharmaceuticals, and HVAC systems.This semi-lugged wafer-type valve offers secure and easy installation between pipeline flanges. The CF8M (Stainless Steel 316) disc enhances durability, providing excellent corrosion resistance against aggressive chemicals, seawater, and high-temperature fluids, ensuring a long service life in demanding conditions. Available on EnvMart, these Butterfly Valves are engineered for efficient flow regulation with a compact and durable design. Made from high-quality materials, they ensure smooth operation, reliability, and longevity in industrial, commercial, and water management applications. Explore a wide range of Industrial Valves & Valve Fittings for precision control and superior performance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This butterfly valve has a size of 500 mm.
The disc of this model is made from CF8M, which is Stainless Steel 316, providing excellent corrosion resistance.
It is equipped with a double acting pneumatic actuator that operates with a maximum air pressure of 8 Bar.
The test pressure for this valve is 24 Bar for hydraulic testing and 17.6 Bar for static testing.
The body of this valve is made from cast iron, specifically Grade FG200.
This valve is suitable for insertion between BS4504 PN10/16 and ASME B16.5 #150 & BS10 Table D/E flanges.
The valve features an EPDM type seat, which is known for its durability and resistance to various chemicals.
The trim stem is made from 13% Cr. SS, specifically ASTM A276 Grade 410.
This butterfly valve is suitable for applications in water treatment, chemical processing, food and beverage, and pharmaceuticals.
This valve complies with the IS212 standard.
This model features a wafer type semi-lugged design for stable and secure mounting.
The low torque operation of this valve contributes to energy-efficient performance and allows for smooth operation.
