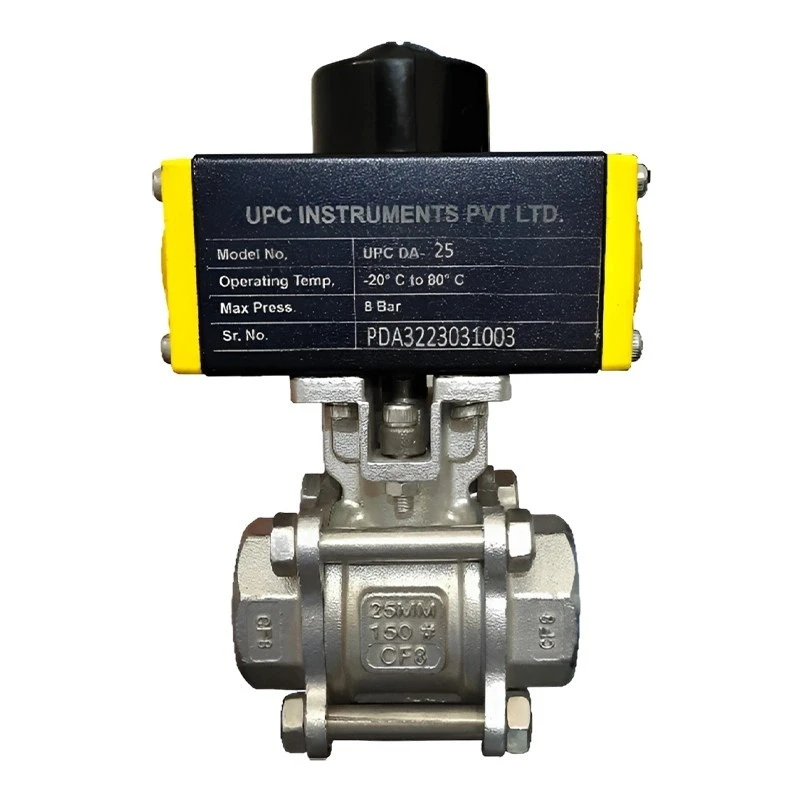

Pneumatic Actuator Operated Three Piece Screwed End Ball Valve With CF8M (Disc)
Size
Specifications
| Brand | UPC |
|---|---|
| Body Material | Cast Stainless Steel (ASTM A351 CF8M) |
| Model | UPC-PASB-421 |
| Standard | BS 5351 |
| Type of Product | Ball Valve |
| Test Pressure | B.T.P. 60 Bar Hyd. & S.T.P. 44 Bar Hyd. & 7 Bar Air |
| Type of Seat | Renewable Seat |
| Port Opening | Full Bore |
| Type of disc | CF8M |
| Actuator | Double Acting Type with Air Pressure of 8 Bar (Maximum) |
| End Details | Screwed Female BSP Parallel Threads to BS-21/ Socket Weld Ends |
| Trim Stem | Stem & Ball SS (ASTM A351 CF8M) |
| Pressure / Class Rating | Class 150# |
| Seat Ring & Gland Ring Packaging | Teflon (PTFE) |
Key Features
- Three-piece design allows easy maintenance and servicing
- Screwed-end connection for quick and secure installation
- Pneumatic actuator for rapid and automated operation
- CF8M (316 Stainless Steel) disc provides excellent corrosion resistance
- Low torque operation for energy efficiency
- Minimal pressure drop ensures smooth and efficient fluid flow
- Leak-proof sealing for enhanced safety and system reliability
- Compact and lightweight construction for easy integration
- Ideal for chemical processing, water treatment, and industrial automation
- Long-lasting performance with minimal maintenance required
Product Description
UPC Pneumatic Actuator Operated Three Piece Screwed End Ball Valve With CF8M (Disc) UPC-PASB-421 is a high-precision, automated flow control valve designed for industrial, chemical, and water treatment applications. With a pneumatic actuator, it provides fast and efficient remote operation, ensuring reliable and precise fluid control in high-demand environments.This valve features a three-piece design with screwed-end connections, allowing for easy disassembly, maintenance, and cleaning without needing to remove the entire unit from the pipeline. The CF8M (316 Stainless Steel) disc offers superior corrosion resistance, making it ideal for handling aggressive chemicals, seawater, and high-temperature fluids. Available on EnvMart, these Ball Valves are designed for efficient flow control with durable construction and reliable sealing. Crafted using high-quality materials, they ensure smooth operation and longevity in industrial, commercial, and domestic applications. Explore a wide range of Industrial Valves & Valve Fittings for precision control and superior performance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pneumatic actuator operates with a maximum air pressure of 8 Bar.
The body is made from cast stainless steel (ASTM A351 CF8M) and the trim stem consists of stainless steel (ASTM A351 CF8M).
The test pressure ratings are 60 Bar for hydraulic testing, 44 Bar for static testing, and 7 Bar for air testing.
It has screwed female BSP parallel threads to BS-21 and socket weld ends for secure installation.
This valve features a full bore port opening, allowing for maximum flow.
The pressure class rating for this model is Class 150#.
It features a renewable seat type, allowing for maintenance and replacement as needed.
This model is available in sizes: 15 mm, 20 mm, 25 mm, 40 mm, and 50 mm.
This valve complies with the BS 5351 standard.
It is suitable for industrial, chemical processing, and water treatment applications.
It uses a double acting type actuator, which allows for rapid and automated operation.
The seat ring and gland ring are packaged with Teflon (PTFE) for leak-proof sealing.
