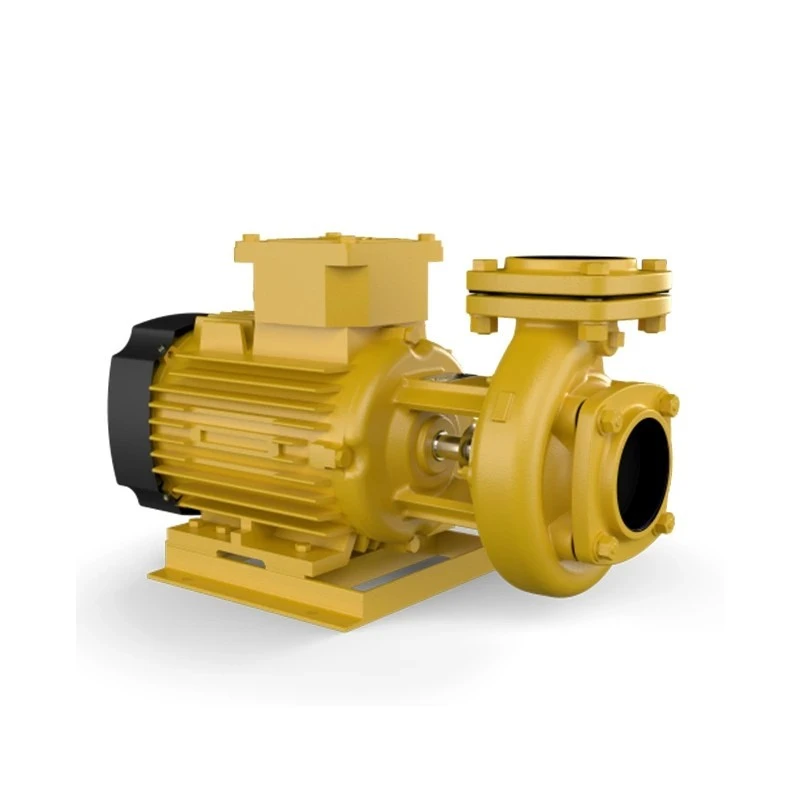

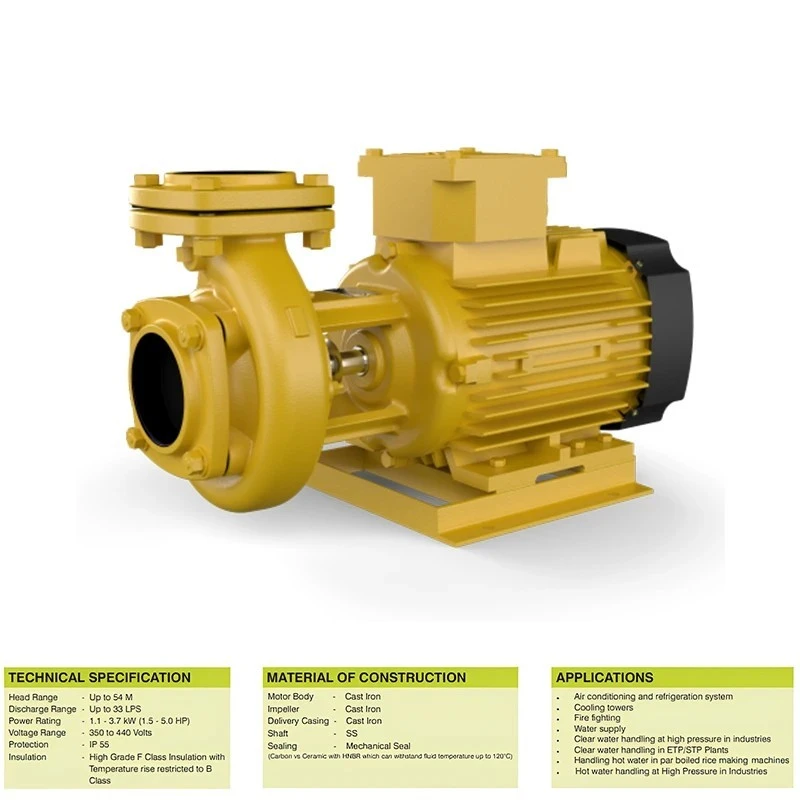

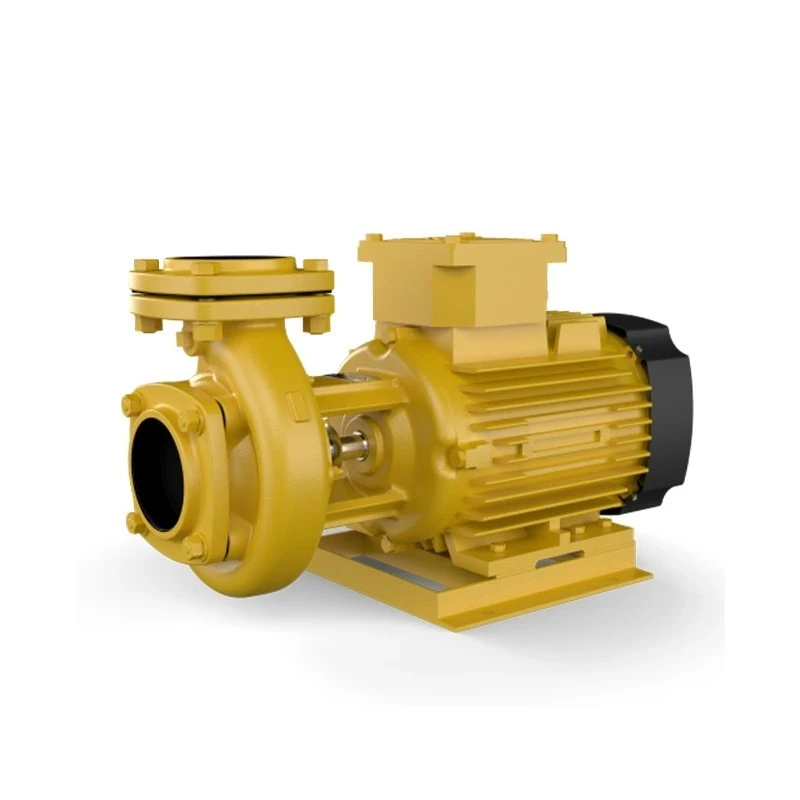

Kirloskar KDI-1.514 EE5 CII MS SS IP55 FCL 1.5 HP 2 Pole 3 Phase Monoblock Pump

SKU ACWLH Category Monoblock Pumps Brand Kirloskar

Specifications

Country of Origin India
Brand Kirloskar
Material Cast Iron
Applications Industrial
Phase Three Phase
Voltage (V) 415 V
Protection Type IP55
Model KDI-1.514 EE5 CII MS SS IP55 FCL
Power Rating (kW) 1.1 kW
Power (HP) 1.5 HP
Item Code D12BH01011001040
Series KDI EE5 Series
Impeller Material Cast Iron
Delivery Size 50 mm
Suction Size 50 mm
Type of Pump Monoblock Pump
Head Range 6-14 m
Frequency (Hz) 50 Hz
Poles 2 Pole
Insulation Class Class F
Discharge Range (LPM) 510-180 LPM

Key Features

  • Air conditioning and refrigeration system
  • Cooling towers
  • Fire fighting
  • Water supply
  • Clear water handling at high pressure in industries
  • Clear water handling in ETP/STP Plants
  • Handling hot water in par boiled rice making machines
  • Hot water handling at High Pressure in Industries

Product Description

Kirloskar KDI-1.514 EE5 CII MS SS IP55 FCL 1.5 HP 2 Pole Three Phase Monoblock Pump is designed for ultra-premium efficiency, reliability, and long-term cost savings. Engineered with advanced technology, Kirloskar pumps offer lower life cycle costs by significantly reducing operating expenses. With a higher specific discharge, these pumps consume up to 16.6% less energy to pump the same amount of fluid, making them energy-efficient and cost-effective.Built with high-grade F-Class insulation and a temperature rise limited to B-Class, this pump is designed to withstand higher temperatures, reducing the risk of motor burnout and ensuring safe and reliable operation over an extended lifespan. The high-efficiency AC induction motor design makes it rugged and well-suited for varied field conditions. Additionally, it is easy to operate, maintain, and service, as it does not require permanent magnets, additional accessories, or complex control equipment.For enhanced corrosion resistance, all hydraulic components of the pump are coated with Cathodic Electro Deposition (CED) technology, providing five times more protection than conventional painting. The dynamically balanced rotating parts minimize vibration, protecting components from damage and ensuring stable, long-term performance.Equipped with a superior mechanical seal, this pump provides zero leakage, lower friction loss, and enhanced durability. The carbon vs. ceramic mechanical seal with HNBR (Hydrogenated Nitrile Butadiene Rubber) composition allows the pump to handle fluids up to 120°C, making it ideal for high-temperature applications.For easy maintenance and longer service life, this pump includes replaceable wearing parts, allowing for quick servicing and reducing downtime. The optimum fan and fan cover design ensure efficient cooling with minimal power consumption, leading to quieter operation and improved performance.EnvMart is offering Kirloskar pumps for domestic, agricultural, and industrial use. Explore our full range of pumps at guaranteed lowest prices to find the perfect solution for your needs.
