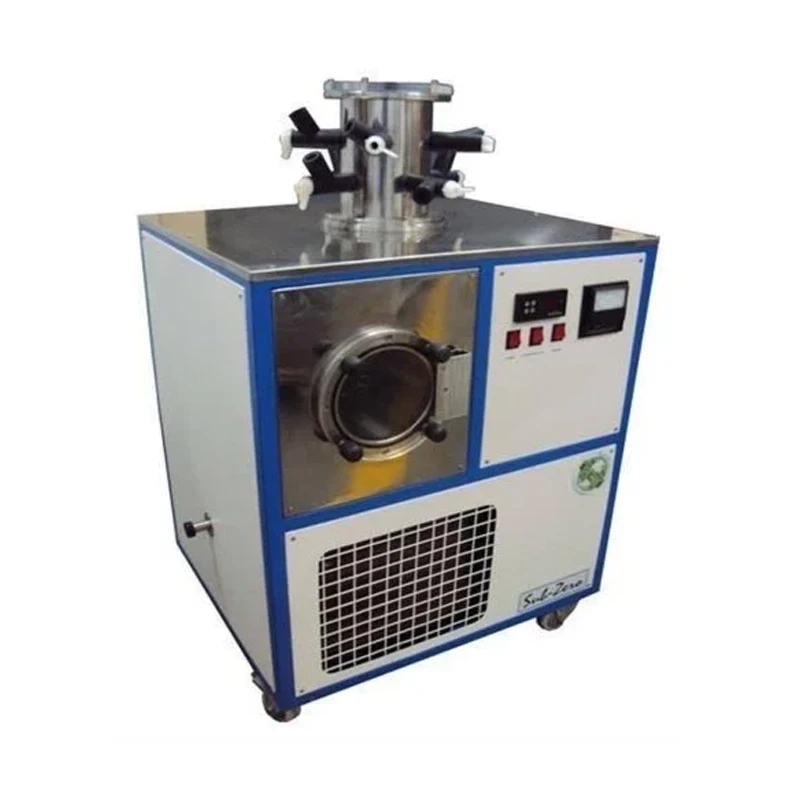

Lypholizer:Lypholizer:lypholizer:er covers a range of application from multiuser centralized laboratory application, pilot plant determination etc. made of mild steel duly powder coated. insulation of pre freezing chamber is done by puff. This unit is mounted on castors. The unit has hermetically sealed CFC Free compressor maintains temperature upto minus 40 C . Trap is given at non magnetic stainless steel dished bottom for complete effluent removal. Refrigerant coils made of copper are heavily insulated for maximum efficiency. Temperature control by Electronic Controller Cum Indicator. Vacuum Drum is made of non-magnetic stainless steel with Perspex top cover and incorporates 8/12" Quick seal valves/Ports for manifold drying. Double stage Vacuum pumps with gas ballast giving vacuum 1 x 10-3 torr module gauge. Sample port having 12.5mm outer dia provided for quick drying . Electronic Vacuum indicator, Pirani gauge is used. Specially designed temperature indicator to read temperature as low as 40 C, mounted on front panel. with 3 step automatic voltage stabilizer. Suitable to work on 220V, single phase, 50 HZ A.C. supply.
