Fluid Level Gauge

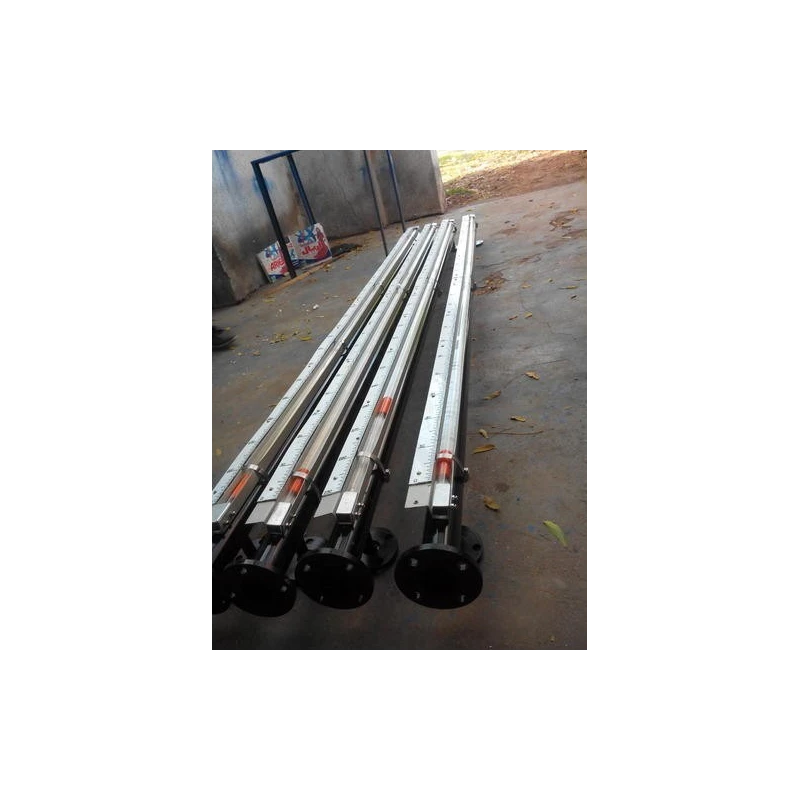

Level Indicator (Side Mounted) with Tie Rod design, with Scale OR without Scale, with OR without inbuilt Valves. It is a reliable device for reading the level of liquid. It is the simplest form of level indicator. These level indicators find wide application for level measurement in process tanks, batching tanks, vessels, etc.1. The top & bottom liquid Chamber of the indicator is made of a solid bar & Glass Tube (Borosilicate) is fully Protected by Box Section made out of a 2 mm thick M.S. channel. The strength of the box is so good that even if a man stands on the indicator, supported at both ends, the tube remains intact.2. We are using 100% PTFE (TEFLON) rope as packing to ensure positive leak tightness for full vacuum as well as 6 Kg / Cm service pressure.3. As Compared to Reflex & Transparent type Level Gauge, this Tubular Level Indicator is light in weight.4. It is available in a single length of 2000 mm C/C Distance. We can extend the length by coupling 2 or more through a coupler.5. We are providing Air Vent Plug at the top & drain plug at the bottom for taking samples. We can also provide an Inbuilt Isolation Valve on request.6. It is a simple and reliable device for direct reading in atmospheric or pressurized (below 5 Kg/cm2) tank applications.7. It Eliminates trouble giving threaded joints of Conventional Gauge Glass Cock as hazardous Chemicals Start leaking.8. Glass Tube (Borosilicate Boiler Quality) is fully protected by guard Rods or Box Section made of 'C' Channel.9. Offset Constructed Isolation Valve on request.10. The connection provided will be a Flanged / Screwed / TC Joint.
