Float & Board Level Gauge

Name: Float & Board Level Gauge
Brand: ESPL
SKU: AAGMJ
Price: 441.69 USD
Availability: InStock



SKU AAGMJ Category Level Gauge Brand ESPL Condition New

Specifications

Measuring range	As per requirement
Model	MS\|PP & SS
Minimum Order Quantity	1 Number

Key Features

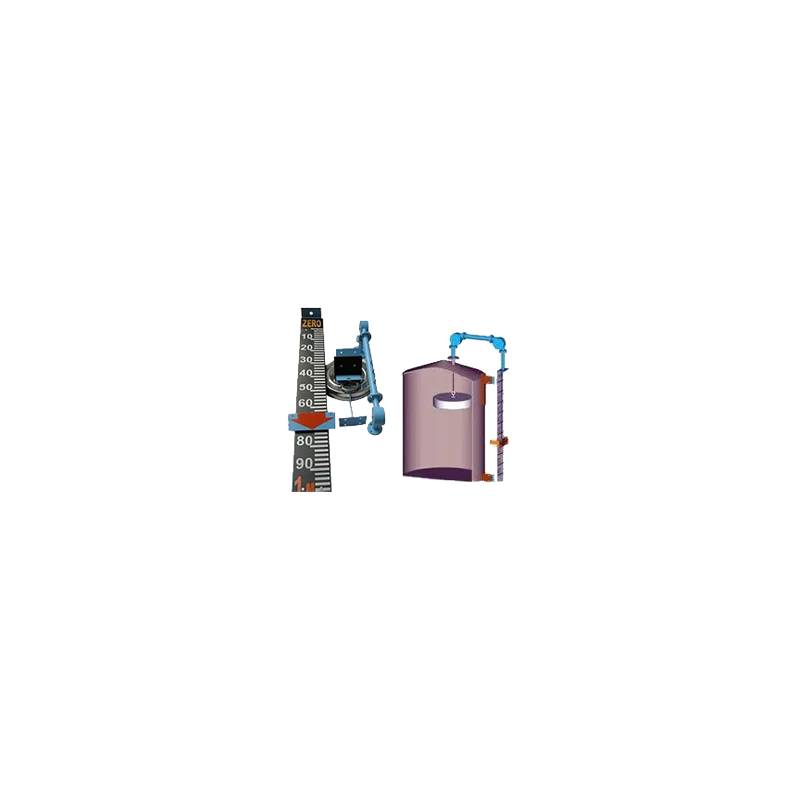

Often A typical Float & Board type Level Gauge is consist of a Float, dust proof Pulley Housing, Pointer cradle with nylon and 150 mm width screen printed Aluminum Scale.
This instrument is an absolutely reliable and accurate system for liquid level measurement in tall overhead tanks. This type of Float & Board type Level Gauge basically work on the principle of buoyancy.
The float is well connected to the counter weight along with a pointer through flexible wire ropes.
The pointer slides along the guide against a graduated scale to indicate corresponding levels inside the tank.

Product Description

Float Indicators are used for fluid level measurement in several industries. The Float is of course the most important element of the instrument. In fact, its structural design, volume displacement, weight, and buoyancy force are all taken into careful consideration when a float is specified for a particular application.Vapor Seal Type Float & Board Type Level Gauge which is generally used for tanks having corrosive fumes/vapors OR N2 [Nitrogen] Purging tanks.In this level gauge the float is connected to a magnetized counter weight moving in a sealed S.S. OR PVC pipe & which drives a follower magnetized bi-color capsule inside a glass tube to indicate liquid level.The features of a typical Float & Board Type Level Gauge can be detailed as follows.It has dust-proof pulley housing.It comes with an SS bush bearing for a smooth rotation of the pulley.The pointer cradle has 6 nylon rollers and adjustable brackets for easy mounting.It has a non-corroding aluminum board with controlled cross-section geometry and a wide painted scale with prominent multi-color marking.The indicator, of course, has a slack float with a large diameter for higher accuracy.This level indicator is very easy to transport as well as install.Height up to 30 meters.

Most often, the Float & Board type Level Gauge finds its application in underground and over head storage tanks.
They are also used in storage tanks of petroleum products, like furnace oil, diesel, and lube oil and so on.
Also, it is used in storage of vegetable oils, molasses, silicates, glucose and so on.
In short, the Float & Board type Level Indicator is most widely used in all non hazardous and non pressurized tanks.
For Tank height more than 10 meter we provide Anchor Plated with Anchor Housing for Installing the Anchor Rope.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The measuring range of this unit is as per requirement, allowing for customization based on specific applications.

This model can be constructed from MS (Mild Steel), PP (Polypropylene), or SS (Stainless Steel), depending on the application needs.

It is suitable for underground and overhead storage tanks, including those for petroleum products, vegetable oils, and other non-hazardous, non-pressurized liquids.

This unit operates on the principle of buoyancy, where the float is connected to a counterweight and a pointer that indicates the liquid level on a graduated scale.

It features a dust-proof pulley housing, an SS bush bearing for smooth pulley rotation, and a non-corroding aluminum board with a painted scale for easy readability.

It uses a slack float with a large diameter, which contributes to higher accuracy in liquid level measurement.

This level gauge is commonly used in storage tanks for furnace oil, diesel, lube oil, vegetable oils, molasses, silicates, and glucose.

The minimum order quantity for this unit is 1 number, allowing for individual purchases.

The float is connected to a magnetized counterweight that moves within a sealed pipe, driving a follower magnetized bi-color capsule to indicate the liquid level.
