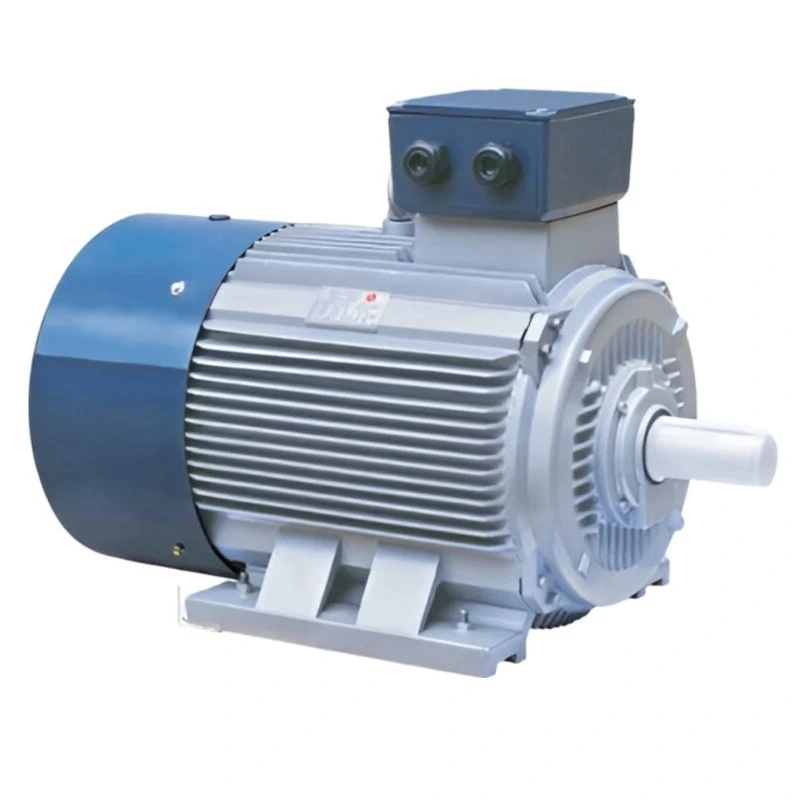

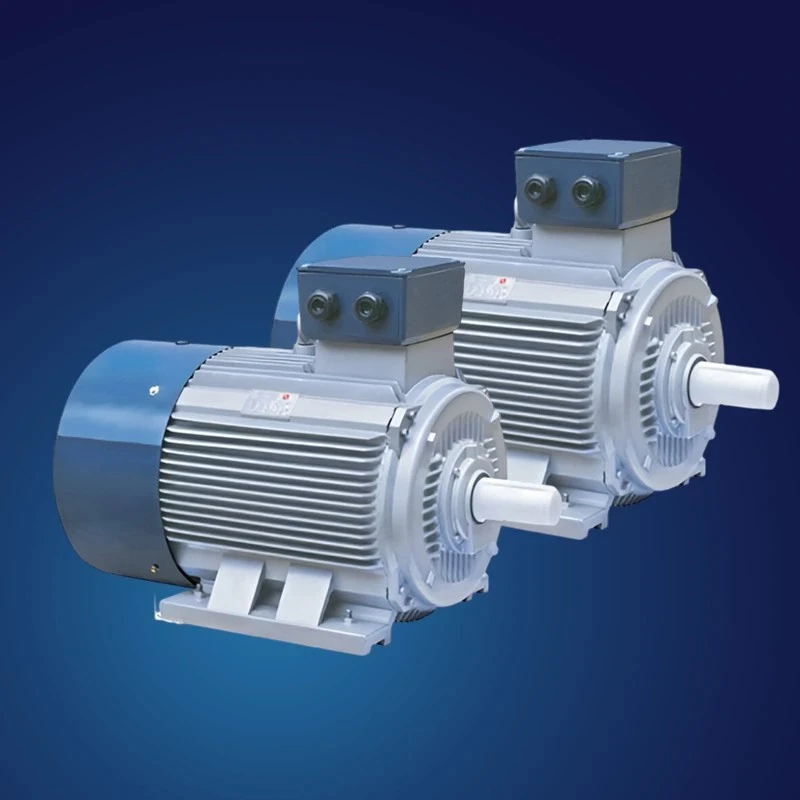

Siemens 1PQ0 356-4YB80 335 HP 4 Pole 3 Phase IE3 Squirrel Cage Energy Efficient Motors
Specifications
| Country of Origin | India |
|---|---|
| Brand | Siemens |
| Material | Cast Iron |
| Applications | Industrial |
| Phase | Three Phase |
| Voltage (V) | 415 V +/- 10% |
| Protection Type | IP55 |
| Model | 1PQ0 356-4YB80 |
| Power Rating (kW) | 250 kW |
| Power (HP) | 335 HP |
| Mounting Type | FOOT MOUNTED |
| Standard | IS 12615 / IEC 60034-1 |
| Ambient Temperature (ºC) | 50 ºC |
| Series | 1PQ0 Series |
| Cooling Type | Fan Cooled |
| Frame Size | 355L |
| Type of Motor | Energy Efficient Motors |
| Duty Type | S1 |
| Efficiency Class | IE3 |
| Cage Type | Squirrel Cage |
| Frequency (Hz) | 50 Hz +/- 5% |
| Poles | 4 Pole |
| Speed (RPM) | 1500 RPM |
| Insulation Class | Class F |
Key Features
- IP55 Protection
- Totally enclosed fan-cooled (TEFC) design
- Low running noise
- High efficiency and low torsional backlashmaintenance-free and lubricated for life
Product Description
Siemens 1PQ0 356-4YB80 335 HP 4 Pole Three Phase Induction Motor with IE3 efficiency features an IP55 Protection rating with a totally enclosed fan-cooled (TEFC) design. Engineered for High efficiency and low torsional backlash and low running noise, it is Maintenance-free and lubricated for life for reliable performance.Explore the wide range of Motors at EnvMart. Shop online for various Siemens Motors available at the most competitive prices on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this motor is 335 HP, which is equivalent to 250 kW.
This model is a three-phase induction motor with a squirrel cage design.
The motor has an efficiency class of IE3, indicating it is energy efficient.
The voltage rating for this motor is 415 V with a tolerance of +/- 10%.
It has an IP55 protection rating, which provides resistance against dust and water ingress.
The motor can operate in ambient temperatures up to 50 ºC.
This motor is designed for foot mounting.
The speed rating is 1500 RPM.
It features fan cooling and has a duty type of S1, which indicates continuous operation.
This motor complies with IS 12615 and IEC 60034-1 standards.
The frame size of this model is 355L.
The motor is constructed from cast iron.
