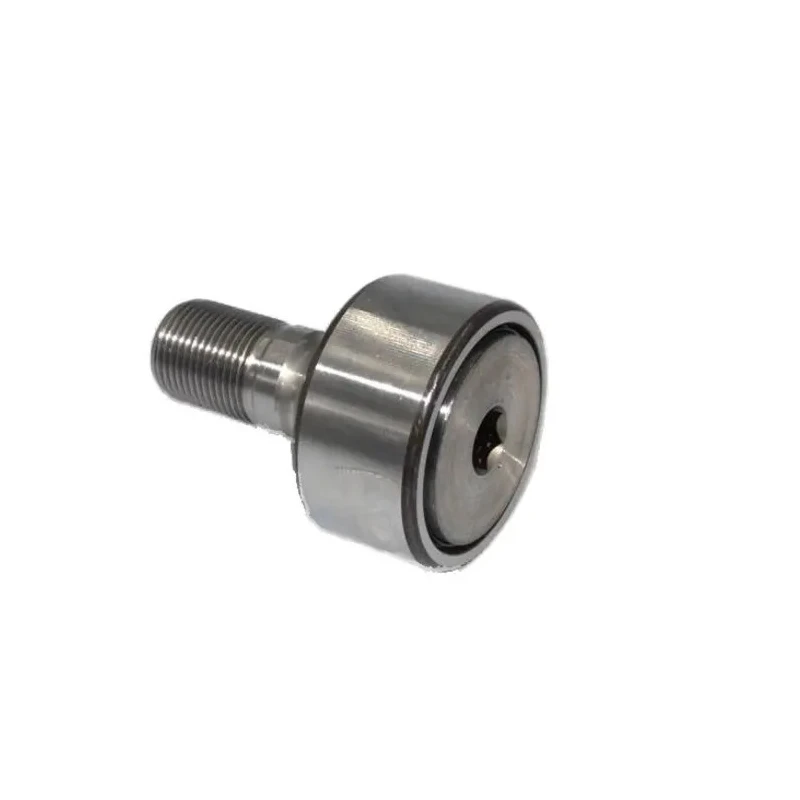

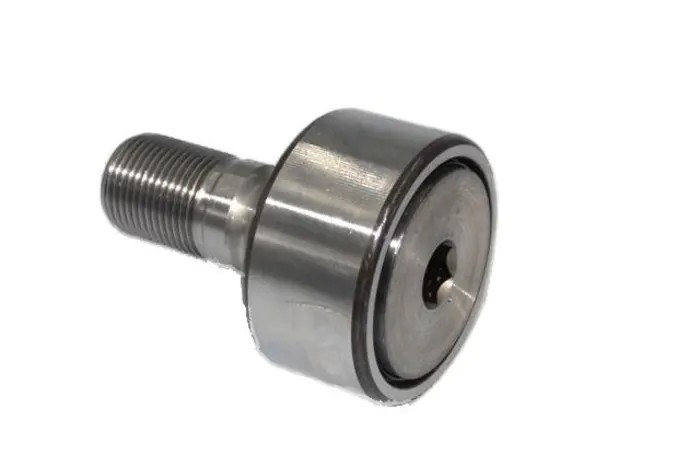

INA Stud Cam Follower 16mm Bore Diameter, 35mm Roller Diameter, Load Ratings 23.1kN Static, 12.6kN Dynamic KRV35-X-PP-A

INA KRV35-X-PP-A Stud Cam Follower is a precision-engineered bearing designed for robust mechanical and industrial applications requiring reliable load support and alignment tolerance. Featuring a bore diameter of 16mm and a roller diameter of 35mm, this stud cam follower can withstand static loads of up to 23.1 kN and dynamic loads of 12.6 kN, making it suitable for heavy-duty duty environments.

The component is produced with a heavy-section roller stud with fixing thread and includes axial guidance of the outer ring to ensure stability in demanding conditions. Its particularly thick-walled outer ring with a crowned outside surface facilitates tolerance of small misalignment defects, skewed running, or temporary impact loads.

This stud type track roller is designed to be mounted on shafts or studs and is supported on a flat mating track instead of a housing bore. This design also allows the eccentric collar to be adjusted to accommodate manufacturing and construction tolerances effectively.

Available in both sealed and open configurations, the bearing offers versatility for various industrial, mechanical, and fluid power uses such as manufacturing machinery, conveyor systems, and automation equipment.

Stud cam follower with 16mm bore diameter and 35mm roller diameter. Static load rating of 23.1 kN and dynamic load rating of 12.6 kN. Crowned outer ring provides tolerance to small misalignment and skewed running. Stud type track roller with axial guidance and heavy-section roller stud for mounting aid.

Designed for supporting high radial and axial loads in mechanical systems. Sealed or open types available for different operating environments. Not mounted in a housing bore but supported on a flat mating track. Allows adjustment on mating track via eccentric collar for larger manufacturing tolerances.

This INA cam follower is an essential component in applications demanding precise and durable bearing solutions and is widely used in industrial machinery, conveying systems, and automated production lines.

Discover a range of INA Cam Followers at EnvMart and find suitable mechanical bearing solutions for your industrial projects.
