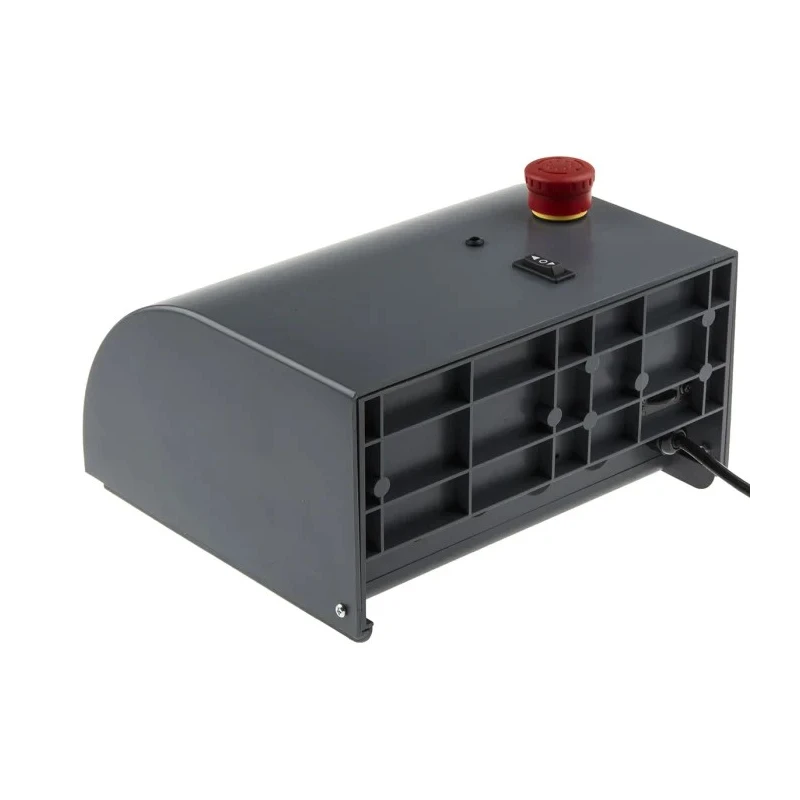

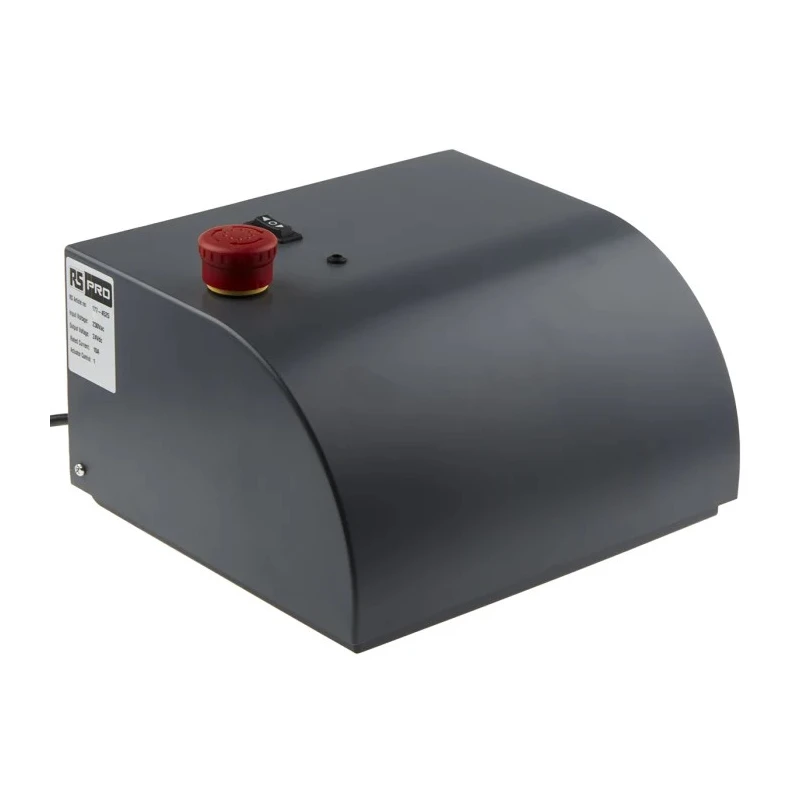

RS PRO Controller for Electric Actuator 1 Output 10A Current 230V AC Input 24V DC Output 177-4525

RS PRO 177-4525 Controller for Electric Actuator is a reliable and compact control box designed specifically for electric actuator management. It supports the operation of a single electric actuator with a robust 10A current capacity and operates on a 230V AC input voltage. The controller converts input to a 24V DC output suitable for precise actuator performance.

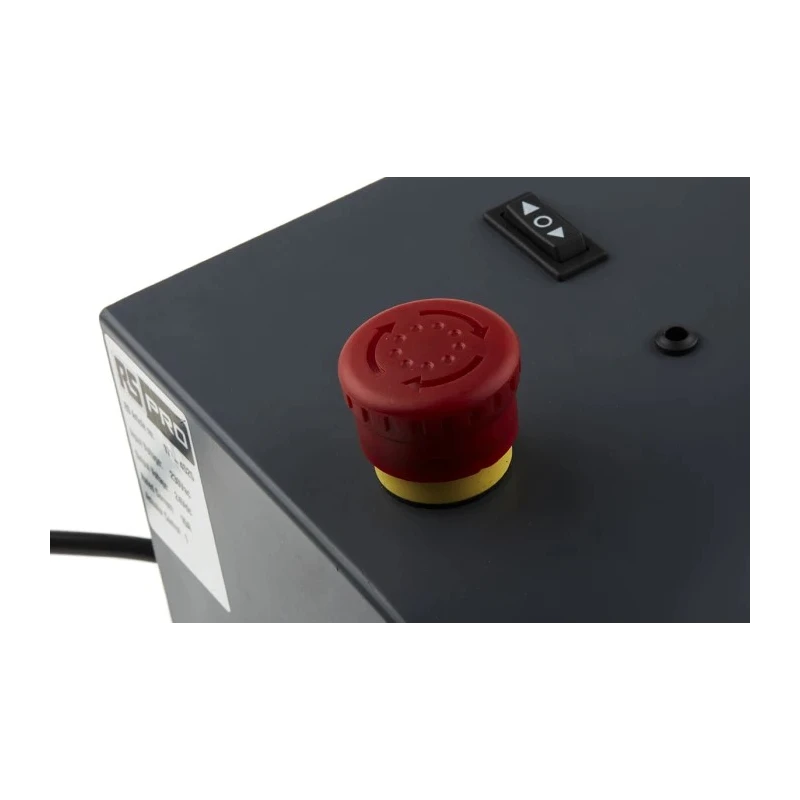

This controller features an integrated rocker switch which eliminates the need for additional handsets, simplifying control. Safety features include built-in overload protection up to 13A and an emergency stop button for immediate shutdown when required. A power indicator LED provides visual confirmation of operational status.

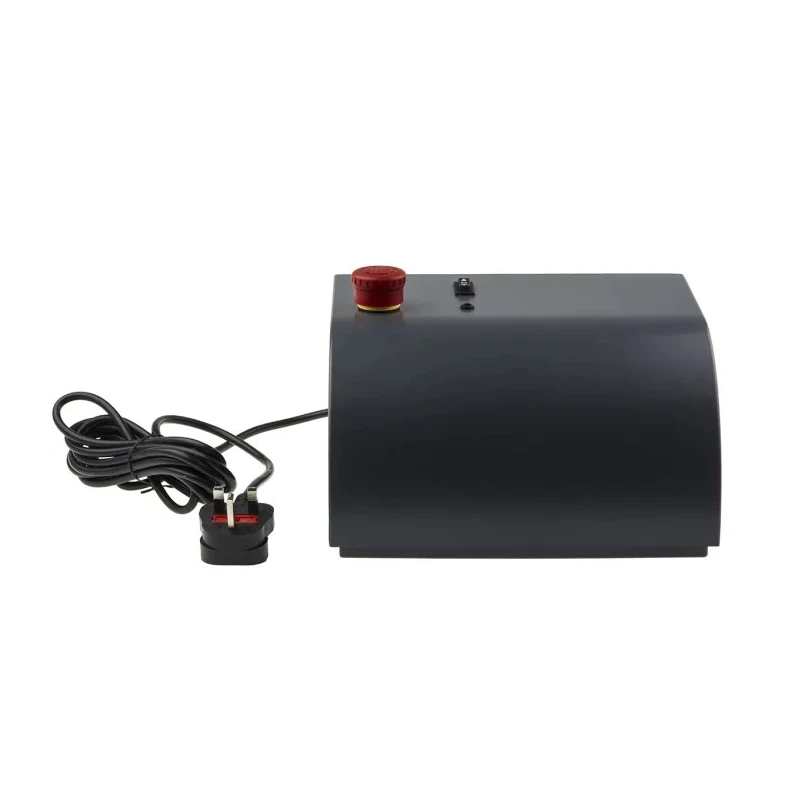

The unit comes with a 3000mm cable length allowing flexible placement in varied industrial and household settings. The controller's compact design and Pantone 432U color offer practical installation in automotive, household appliances, and various industrial machinery environments.

Compact design with one output channel for controlling one electric actuator. Input voltage rated at 230V AC, 50Hz, with a 24V DC output. Current load capacity is 10A with overload protection at 13A. Built-in emergency stop button enhances operational safety.

Long cable length of 3 meters for diverse installation options. Applications span automotive industry, household appliances, and industrial machinery. Manufactured in Taiwan, Province Of China, ensuring high product quality.

This electric actuator controller is an ideal choice for industrial, automotive, and home automation uses where precise control and safety features are critical. Its compactness and safety protections make it a versatile component in actuator systems.
