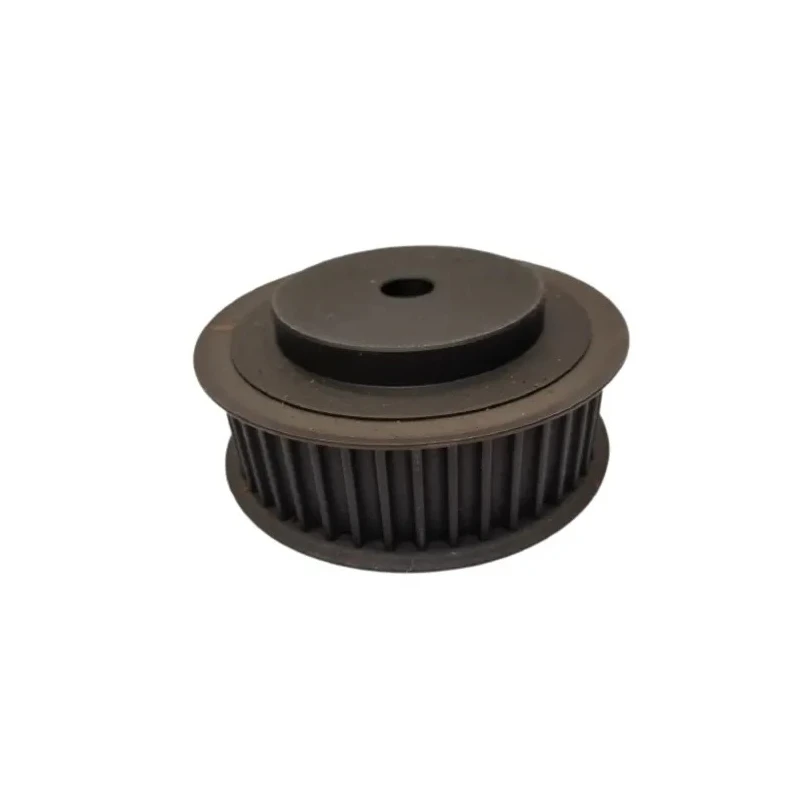

OPTIBELT Timing Belt Pulley Steel 9.5 mm Pitch, 16 Tooth 16L100

OPTIBELT 16L100 Timing Belt Pulley Steel 9.5 mm Pitch, 16 Tooth is engineered for precision in mechanical power transmission systems where reliable belt engagement and high durability are critical.

Constructed from robust steel material, this timing belt pulley features 16 teeth with an exact pitch of 9.5 mm, conforming to standard imperial profile L timing belts.

The pulley is flanged with a flange diameter of 54 mm, enhancing belt retention and system stability during operation. Its pilot bore design with a diameter of 23 mm supports secure mounting to shafts up to this bore size.

Outer dimensions include an outside diameter of 47.75 mm and a pitch circle diameter of 48.51 mm, matching industry-standard sizes for timing belt pulleys of its class. Compliant with RoHS directives, this pulley is suitable for industrial applications requiring adherence to environmental standards.

Typical use cases include applications in industrial machinery, automation equipment, conveyor systems, and fluid power drives, providing efficiency and longevity in demanding mechanical power transmission tasks.

The pulley features 16 teeth with a pitch of 9.5 mm for precise belt engagement. Manufactured from high strength steel, ensuring durability and wear resistance. Includes a flanged design with a flange diameter of 54 mm for secure belt retention.

Pilot bore with a diameter of 23 mm accommodates shaft mounting with maximum bore diameter of 23 mm. Outside diameter measures 47.75 mm and pitch circle diameter is 48.51 mm for compatibility with standard timing belts. Meets RoHS standards, ensuring compliance with environmental directives.

Ideal for use in mechanical, fluid power, and industrial power transmission systems. Explore the full OPTIBELT range of timing belt pulleys and mechanical power transmission components available at EnvMart for your industrial equipment needs.
