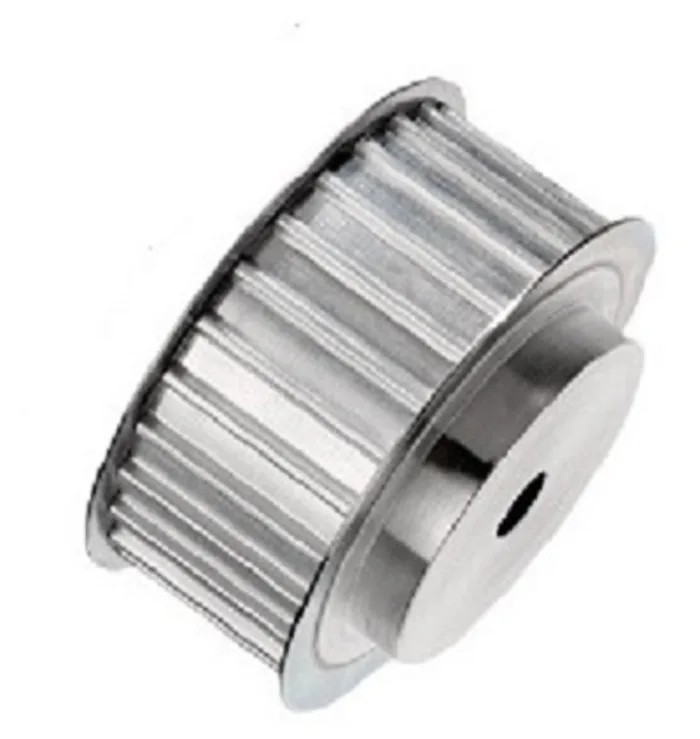

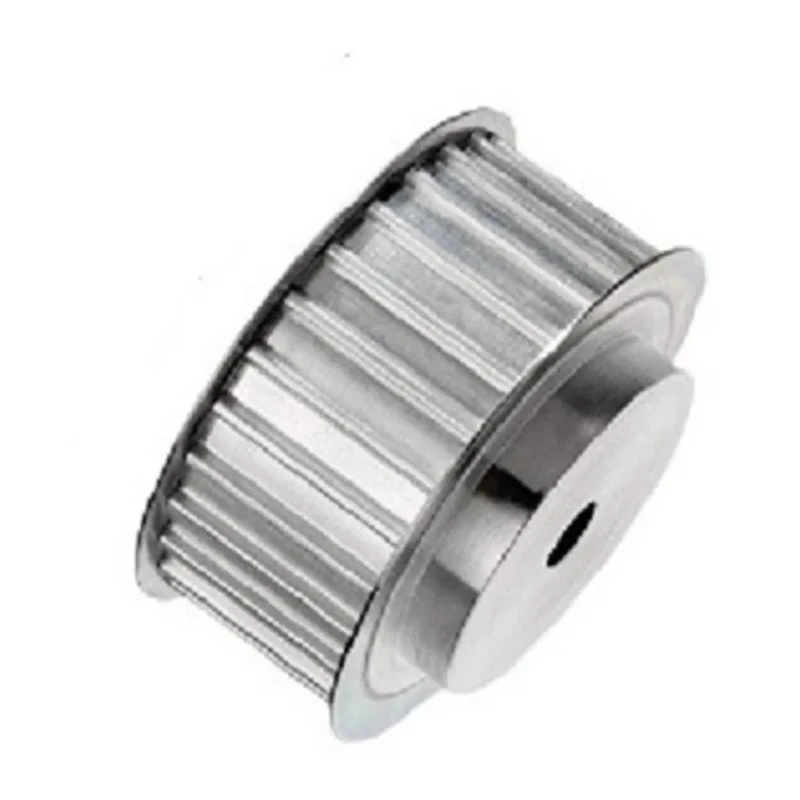

OPTIBELT Timing Belt Pulley Aluminium 25 mm Belt Width 5 mm Pitch 40 Teeth 40-236AT5
Specifications
| Country of Origin | India |
|---|---|
| Brand | OPTIBELT |
| Material | Aluminium |
| Model | 40-236AT5 |
| Outside diameter | 62.45mm |
| Number of Teeth | 40 |
| Bore Diameter | 23mm |
| Flange Diameter | 66.5mm |
| Pitch | 5mm |
| Bore Type | Pilot Bore |
| Pitch Circle Diameter | 63.66mm |
| Acceptable Belt Width | 25mm |
Key Features
- Constructed from high-strength aluminium material.
- Designed with a pitch of 5 mm to match HTD belt profiles.
- Acceptable belt width is 25 mm for optimal belt fit.
- Features a flange and pilot bore with a maximum bore diameter of 23 mm.
- Flange diameter measures 66.5 mm for secure belt guidance.
- Pitch circle diameter is 63.66 mm with an outside diameter of 62.45 mm.
- Flanged design enhances belt retention and stability during operation.
- Suitable for various mechanical power transmission applications.
Product Description
OPTIBELT 40-236AT5 Timing Belt Pulley is a precision-machined aluminium pulley designed for use with HTD timing belts. It features a robust aluminium construction that offers excellent strength-to-weight ratio, ensuring durability and reliability in industrial power transmission systems. The pulley has 40 teeth with a 5 mm pitch, matching the plain boring metric profile AT5 specification.
The pulley supports an acceptable belt width of 25 mm and incorporates a pilot bore with a finished bore diameter up to 23 mm to ensure precise shaft mounting. The flanged design improves belt alignment and reduces lateral movement during rotation.
With a pitch circle diameter of 63.66 mm, flange diameter of 66.5 mm, and an outside diameter of 62.45 mm, this pulley is engineered to exacting standards. Its flanged structure aids in maintaining belt tracking and operational stability in demanding environments.
Applications for this timing belt pulley include mechanical power transmission setups in industrial machines, manufacturing equipment, and conveyor systems. It is suitable for mechanical, fluid power, and tool applications requiring reliable belt drive components.
The OPTIBELT 40-236AT5 pulley is a proven solution for ensuring accurate timing and synchronization in machinery, enhancing efficiency and performance. Constructed from high-strength aluminium material. Designed with a pitch of 5 mm for HTD belt compatibility.
Acceptable belt width is 25 mm, fitting standard HTD belts. Features flange and pilot bore design with 23 mm maximum bore diameter. Flanged design ensures secure belt retention during operations. Pitch circle diameter is 63.66 mm for precision timing.
Flange diameter is 66.5 mm for effective belt guidance. Outside diameter measures 62.45 mm. Suitable for industrial mechanical power transmission applications. Explore the full range of belt pulleys and power transmission components in the Industrial Supplies category on EnvMart.
Explore more products in our Mechanical, Fluid Power & Tools category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The timing belt pulley has a pitch of 5 mm, designed to match HTD belt profiles.
It features a pilot bore with a maximum diameter of 23 mm for precise shaft mounting.
This timing belt pulley has 40 teeth, which contributes to its mechanical power transmission capabilities.
The flange diameter measures 66.5 mm, which aids in effective belt guidance and stability during operation.
The outside diameter of this model is 62.45 mm, ensuring compatibility with standard timing belt systems.
It supports an acceptable belt width of 25 mm, fitting standard HTD belts for optimal performance.
The pitch circle diameter is 63.66 mm, which is crucial for maintaining accurate timing in mechanical applications.
This model is constructed from high-strength aluminium, providing a good strength-to-weight ratio for industrial applications.
It features a pilot bore type, which is designed for precise mounting on shafts.
This timing belt pulley is suitable for mechanical power transmission setups in industrial machines, manufacturing equipment, and conveyor systems.
The country of origin for this timing belt pulley is India.
The flanged design enhances belt retention and stability during operation, reducing lateral movement and improving alignment.
