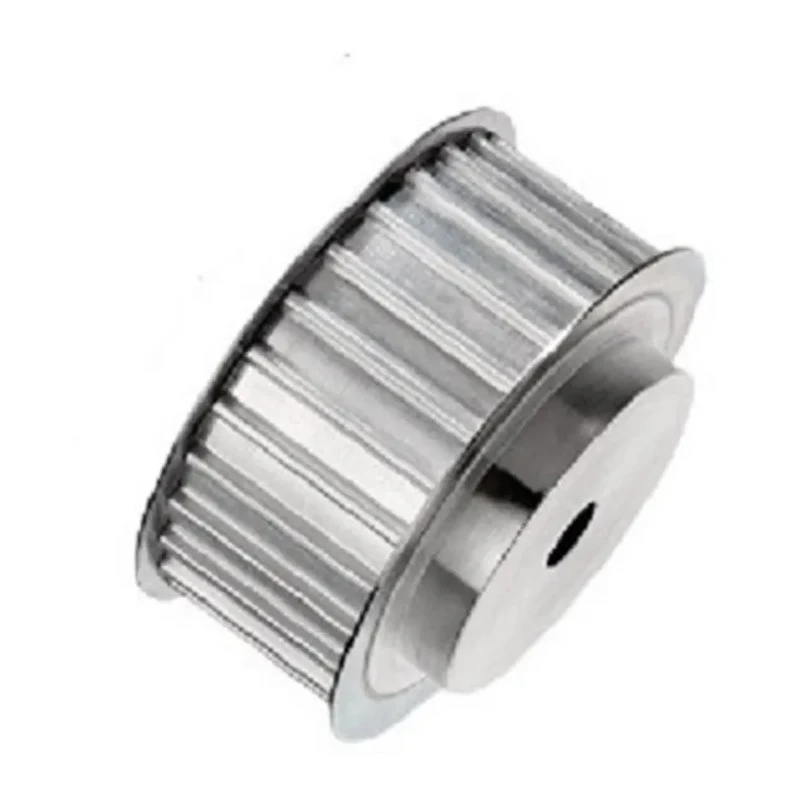

OPTIBELT Timing Belt Pulley Aluminium 16 mm 5 mm Pitch 22 Tooth 22-227AT5
Specifications
| Country of Origin | India |
|---|---|
| Brand | OPTIBELT |
| Material | Aluminium |
| Model | 22-227AT5 |
| Outside diameter | 33.85mm |
| Number of Teeth | 22 |
| Bore Diameter | 15mm |
| Flange Diameter | 38mm |
| Pitch | 5mm |
| Standards/Approvals | RoHS |
| Pitch Circle Diameter | 35.12mm |
| Acceptable Belt Width | 16mm |
Key Features
- Constructed from durable aluminium material to ensure strength and longevity.
- Features 22 teeth with a 5 mm pitch suitable for precise timing belt applications.
- Flanged design helps secure belt positioning during operation.
- Acceptable belt width is 16 mm for compatibility with defined belt sizes.
- Pitch circle diameter measures 35.12 mm, optimizing mechanical fit.
- Outside diameter is 33.85 mm, ensuring correct dimensional standards.
- Flange diameter is 38 mm for effective belt guidance and support.
- Designed with a maximum bore diameter of 15 mm for easy mounting.
Product Description
OPTIBELT 22-227AT5 Timing Belt Pulley Aluminium 16 mm 5 mm Pitch is a precision-engineered mechanical component designed for use in power transmission systems requiring accurate timing belt engagements. Constructed from high-strength aluminium, this pulley is flanged to provide secure belt retention and alignment, suitable for various industrial applications including manufacturing, material handling, and automation systems.
The pulley features 22 teeth with a 5 mm pitch, compatible specifically with HTD timing belts. The acceptable belt width is 16 mm, matching the pulley’s design for optimal belt grip and reduced slippage. The pitch circle diameter (PCD) of 35.12 mm ensures proper engagement and synchronization with associated components.
Its flanged design includes a flange diameter of 38 mm and an outside diameter of 33.85 mm, which contribute to robust belt guidance during operation. The finished bore diameter of up to 15 mm permits secure mounting on shafts, facilitating precise mechanical power transmission.
This product meets RoHS compliance requirements, supporting eco-friendly manufacturing and operational standards. It is well suited for industrial, mechanical machinery, automation, and power transmission applications where reliability and accuracy are critical.
Constructed from durable aluminium material to ensure strength and longevity. Features 22 teeth with a 5 mm pitch suitable for precise timing belt applications. Flanged design helps secure belt positioning during operation.
Acceptable belt width is 16 mm for compatibility with defined belt sizes. Pitch circle diameter measures 35.12 mm, optimizing mechanical fit. Outside diameter is 33.85 mm, ensuring correct dimensional standards. Flange diameter is 38 mm for effective belt guidance and support.
Designed with a maximum bore diameter of 15 mm for easy mounting. Complies with RoHS standards, enhancing environmental safety.
This timing belt pulley by OPTIBELT offers a reliable solution for precision mechanical power transmissions in industrial and automation sectors. Explore more belt pulleys and related power transmission components on EnvMart for your engineering needs.
Explore more products in our Mechanical, Fluid Power & Tools category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the OPTIBELT timing belt pulley is 5 mm, making it suitable for precise timing belt applications.
This model features 22 teeth, which aids in accurate timing and synchronization with the belt.
The acceptable belt width for this timing belt pulley is 16 mm, ensuring compatibility with defined belt sizes.
The outside diameter of the pulley is 33.85 mm, which ensures it meets correct dimensional standards.
The pitch circle diameter (PCD) of this pulley is 35.12 mm, optimizing mechanical fit for power transmission systems.
The maximum bore diameter for this timing belt pulley is 15 mm, allowing for easy mounting on shafts.
The flange diameter of the pulley is 38 mm, which helps in effective belt guidance and support during operation.
This timing belt pulley is constructed from aluminium, providing strength and longevity for industrial applications.
Yes, this timing belt pulley complies with RoHS standards, supporting eco-friendly manufacturing and operational practices.
This model is suitable for various industrial applications including manufacturing, material handling, and automation systems.
This pulley is specifically compatible with HTD timing belts, ensuring precise engagement and synchronization.
The OPTIBELT timing belt pulley is manufactured in India, ensuring local production standards are met.
