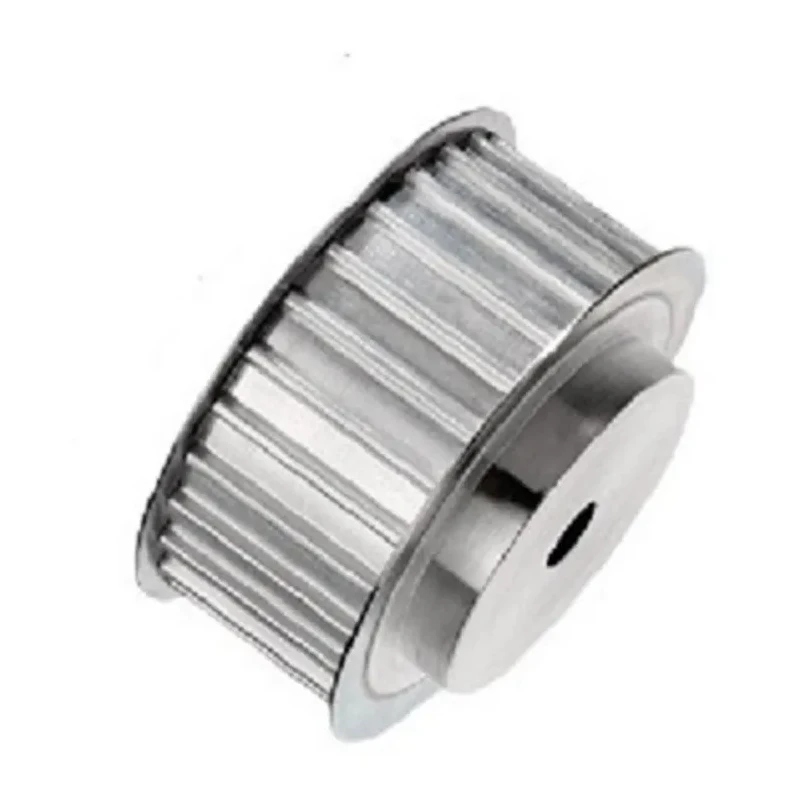

OPTIBELT Timing Belt Pulley Aluminium 25 mm Belt Width 5 mm Pitch 20 Teeth 20-236AT5
Specifications
| Country of Origin | India |
|---|---|
| Brand | OPTIBELT |
| Material | Aluminium |
| Model | 20-236AT5 |
| Outside diameter | 30.6mm |
| Number of Teeth | 20 |
| Bore Diameter | 14mm |
| Flange Diameter | 36mm |
| Pitch | 5mm |
| Standards/Approvals | RoHS |
| Pitch Circle Diameter | 31.83mm |
| Acceptable Belt Width | 25mm |
Key Features
- The pulley is made from high-strength aluminium for durability.
- It features a flanged design to ensure belt alignment.
- Acceptable belt width is 25 mm for compatibility.
- The bore diameter is finished to a maximum of 14 mm for precise mounting.
- Outside diameter measures 30.6 mm with a pitch circle diameter of 31.83 mm.
- Flange diameter is 36 mm to support belt stability.
- Suitable for mechanical power transmission applications using HTD timing belts.
- Complies with RoHS standards to ensure safety and quality.
Product Description
OPTIBELT 20-236AT5 Timing Belt Pulley is expertly manufactured from high-strength aluminium, designed specifically for HTD timing belts requiring a 5 mm pitch and 20 teeth configuration. The pulley accommodates belts with an acceptable width of 25 mm and has a finished bore diameter of up to 14 mm, ensuring secure and precise mounting on shafts.
The pulley features a flanged design with an outside diameter of 30.6 mm and a flange diameter of 36 mm to maintain proper belt alignment and minimize slippage in power transmission systems. Its pitch circle diameter of 31.83 mm aligns with standard HTD belt profiles, optimizing mechanical efficiency.
This pulley is intended for use in industrial mechanical power transmission applications such as manufacturing machinery, conveyor systems, and automated equipment requiring reliable and constant power transfer. The robust aluminium construction offers excellent strength while minimizing weight, contributing to system longevity and reduced maintenance.
Compliant with RoHS standards, the 20-236AT5 timing belt pulley meets environmental and safety regulations. Its precision engineering ensures compatibility with metric profile AT5 belts and plain boring configurations.
The pulley is made from high-strength aluminium for durability. It features a flanged design to ensure belt alignment. Acceptable belt width is 25 mm for compatibility. The bore diameter is finished to a maximum of 14 mm for precise mounting.
Outside diameter measures 30.6 mm with a pitch circle diameter of 31.83 mm. Flange diameter is 36 mm to support belt stability. Suitable for mechanical power transmission applications using HTD timing belts. Complies with RoHS standards to ensure safety and quality.
This timing belt pulley is a critical component for ensuring smooth power transmission in industrial and manufacturing environments. It is part of the OPTIBELT range of belt drive solutions designed for durability and precision.
Explore more industrial power transmission components in the Belt Pulleys category on EnvMart to find matching belts and accessories.
Explore more products in our Mechanical, Fluid Power & Tools category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The outside diameter of this timing belt pulley is 30.6 mm.
The bore diameter is finished to a maximum of 14 mm for precise mounting.
The flange diameter of this pulley is 36 mm, which supports belt stability.
This timing belt pulley has 20 teeth.
This pulley is designed for HTD timing belts with a pitch of 5 mm.
The acceptable belt width for this pulley is 25 mm.
The pitch circle diameter of this timing belt pulley is 31.83 mm.
This timing belt pulley is made from high-strength aluminium.
This pulley complies with RoHS standards, ensuring safety and quality.
This pulley is suitable for mechanical power transmission applications such as manufacturing machinery and conveyor systems.
The model number of this timing belt pulley is 20-236AT5.
This timing belt pulley is manufactured in India.
