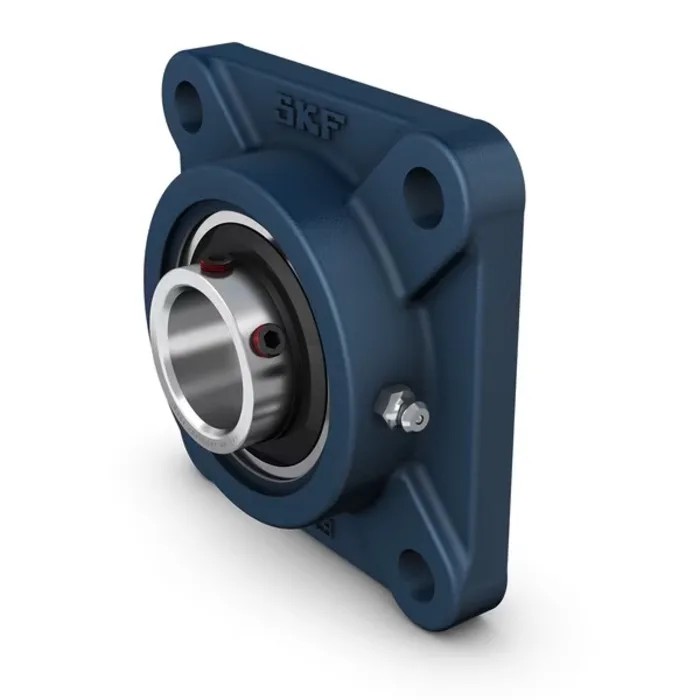

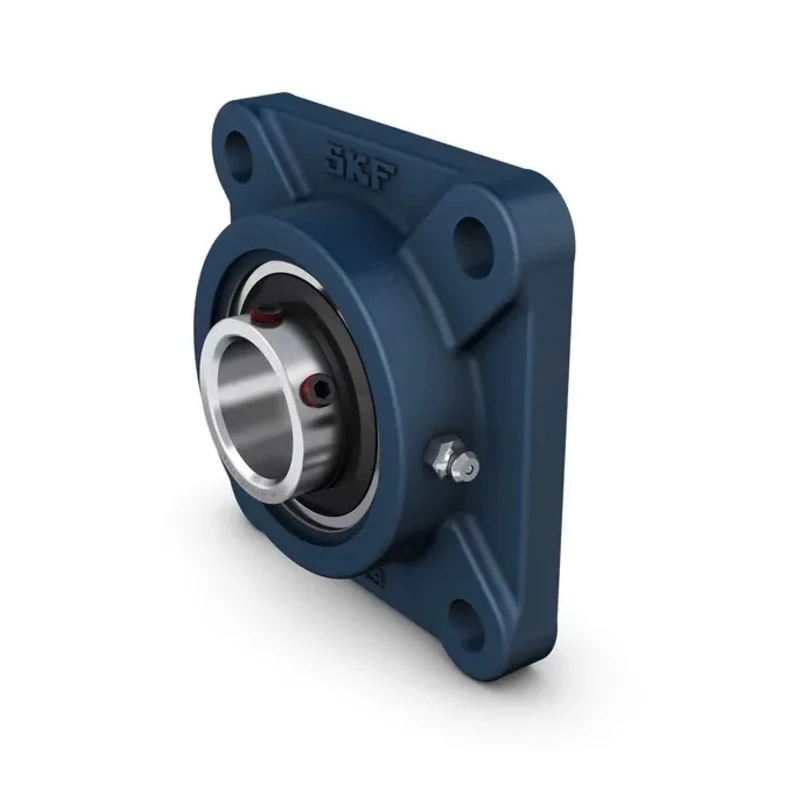

SKF 4 Hole Cylindrical Flange Bearing Unit 45 mm Inside Diameter 52.7 kN Dynamic Load Rating UCF 309



Category Mechanical, Fluid Power & Tools Brand SKF Condition New

Specifications

Country of Origin	China
Brand	SKF
Material	Cast Iron
Length	162mm
Model	UCF 309
Depth	125mm
Width	60mm
Series	UCF
Inside Diameter	45mm
Limiting Speed	3750rpm
End Type	Open
Bore Type	Cylindrical
Static Load Rating	32kN
Dynamic Load Rating	52.7kN
Mount Hole Size	19 mm
Mount Hole Centre-to-Centre	125mm
Number of Mount Holes	4
Locking Type	Set Screw

Key Features

Constructed with a durable cast iron housing for structural strength.
Set screw locking ensures reliable shaft retention and easy adjustment.
Four mounting holes with 19 mm diameter allow stable installation.
Open end type design facilitates easy shaft insertion and maintenance.
Supports a static load rating of 32 kN for stationary loads.
Capable of operation at a limiting speed of 3750 rpm for moderate rotational speeds.
Mount hole centres spaced 125 mm apart for secure mounting.
Suitable for conveyor rollers, agricultural and packaging machinery applications.

Product Description

SKF UCF 309 4 Hole Cylindrical Flange Bearing Unit features a 45 mm inside diameter and is designed for supporting rotating shafts in industrial environments. This unit offers a robust cast iron housing, providing excellent structural support for heavy radial and static loads.

The bearing unit includes a cylindrical bore combined with set screw locking for dependable shaft retention. Its open end design simplifies shaft insertion and maintenance access, making it ideal for continuous operation at moderate speeds up to 3750 rpm.

It incorporates four mount holes of 19 mm diameter spaced 125 mm apart, ensuring stable attachment to structures. With a dynamic load rating of 52.7 kN and a static load rating of 32 kN, this bearing unit handles both operating and stationary loads effectively.

Its applications span multiple industrial sectors including conveyor roller shafts in manufacturing, agricultural machinery, gearbox output shafts, fans, blowers, and packaging line rotating assemblies. The flange unit belongs to the UCF series and is manufactured in China, ensuring adherence to quality standards.

Durable cast iron housing for robust support. Set screw locking for secure shaft retention. Four mount holes with 19 mm diameter ensure firm mounting. Open end type facilitates shaft insertion and maintenance. Dynamic load rating of 52.7 kN suitable for heavy radial loads.

Static load rating of 32 kN for stationary loads. Limiting speed up to 3750 rpm for moderate rotational application. Mount hole centre spacing of 125 mm for secure installation. Ideal for use in manufacturing, agricultural, and packaging industries.

Manufactured in China meeting international standards.

This SKF flange bearing unit is a reliable component for mechanical and fluid power applications requiring precise shaft support and mounting. Explore more products in Bearing Units category at EnvMart for comprehensive industrial solutions.
