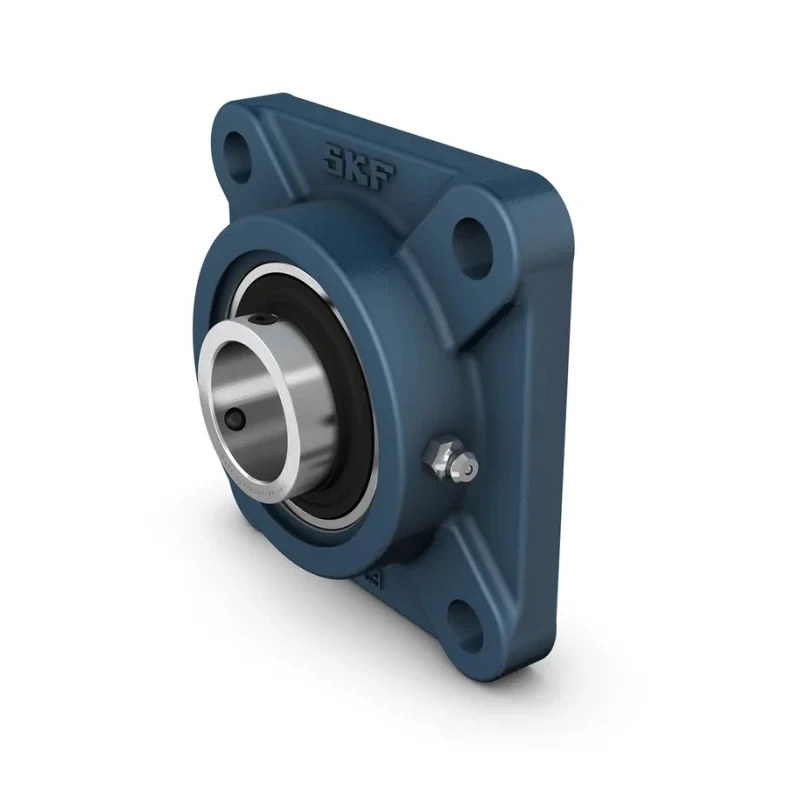

SKF 4 Hole Cylindrical Flange Bearing Unit Steel, 50.8 mm ID, Set Screw Locking, 162x64.4x64.4 mm, FY 2. TF

Free Delivery in India | Lowest Global Shipping Charges

SKF 4 Hole Cylindrical Flange Bearing Unit Steel, 50.8 mm ID, Set Screw Locking, 162x64.4x64.4 mm, FY 2. TF



Category Mechanical, Fluid Power & Tools Brand SKF Condition New

Specifications

Country of Origin	Italy
Brand	SKF
Material	Steel
Length	162mm
Model	FY 2. TF
Depth	64.4mm
Width	64.4mm
Series	FY
Inside Diameter	50.8mm
Limiting Speed	3600rpm
End Type	Open
Bore Type	Cylindrical
Static Load Rating	29kN
Dynamic Load Rating	43.6kN
Mount Hole Size	18 mm
Mount Hole Centre-to-Centre	130mm
Number of Mount Holes	4
Locking Type	Set Screw

Key Features

Flanged bearing unit with four mounting holes ensures stable attachment.
Set screw locking type provides secure shaft fixation.
Steel construction offers durability and corrosion resistance.
Supports static load of 29 kN and dynamic load up to 43.6 kN for heavy-duty operations.
Capable of operating at speeds up to 3600 rpm withstanding friction heat.
Open end type with cylindrical bore designed for shaft accommodation.
Four 18 mm mount holes spaced 130 mm center-to-center.
Cast iron housing reduces vibration for reliable performance.

Product Description

SKF FY 2. TF 4 Hole Cylindrical Flange Bearing Unit is engineered with precision steel materials and designed for high reliability in industrial, manufacturing, and conveyor applications. Featuring a 50.8 mm inside diameter cylindrical bore, it provides excellent shaft support via set screw locking and precise mounting through four uniformly spaced holes.

The flange bearing unit maintains stability and reduces vibration through its cast iron housing, which also provides corrosion resistance. It accommodates static loads of 29 kN and dynamic loads up to 43.6 kN while operating safely at limiting speeds of 3600 rpm, making it suitable for demanding heavy-duty environments.

The unit measures 162 mm in length, 64.4 mm in both width and depth, with mounting hole sizes of 18 mm and a center-to-center distance of 130 mm. Its open end type design facilitates easy installation and maintenance.

This SKF flange bearing unit is appropriate for use in industrial conveyor systems, manufacturing facilities, and the food processing industry. It supports operational temperatures up to +100°C and includes a relubrication hole and nipple for convenient grease addition ensuring extended service life.

Flanged design with four mounting holes for secure installation. Set screw locking mechanism for shaft retention. Durable steel material with corrosion resistance. Excellent load capacities: 29 kN static, 43.6 kN dynamic.

Operates at speeds up to 3600 rpm. Dimensions: 162 mm length, 64.4 mm width and depth. Open bore, cylindrical type for versatile shaft fitting. Cast iron housing dampens vibration and enhances mounting stability. Common applications include industrial conveyors, manufacturing, and food processing.

Easy maintenance via relubrication features. Explore EnvMart's extensive range of SKF Rotary Bearings & Housing Units for compatible industrial components and accessories.
