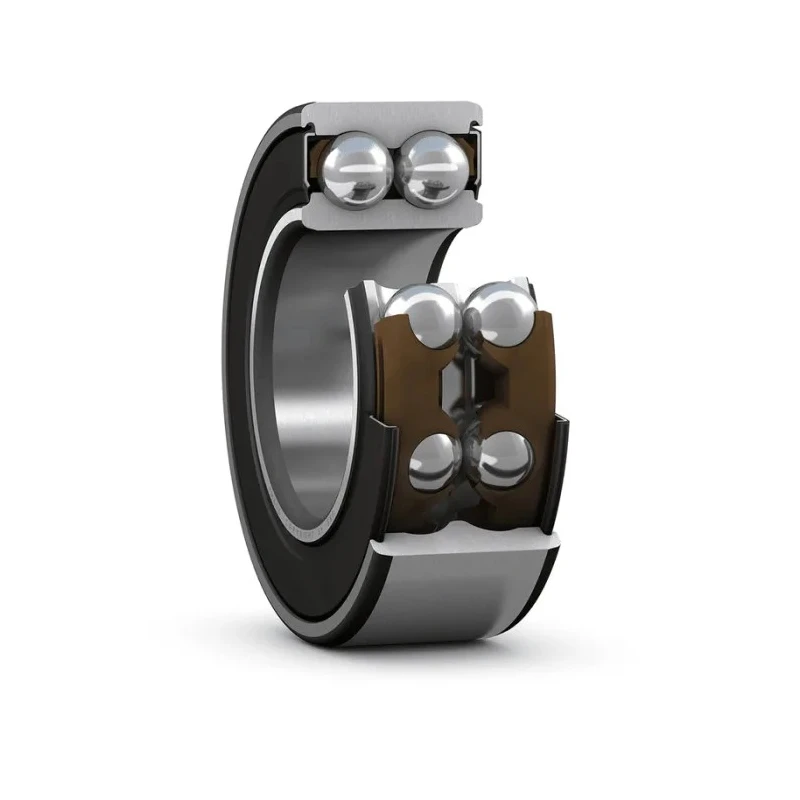

SKF Double Row Angular Contact Ball Bearing 45 mm ID, 100 mm OD, 39.7 mm Race Width 3309 A-2RS1/C3MT33

SKF 3309 A-2RS1/C3MT33 is a high-quality double row angular contact Ball Bearing engineered for industrial applications requiring robust performance and reliability. Featuring an inside diameter of 45 mm, outside diameter of 100 mm, and a race width of 39.7 mm, this bearing is designed to accommodate combined radial and axial loads effectively.

The bearing's angular contact design has inner and outer ring raceways displaced relative to each other along the bearing axis, allowing simultaneous load handling capabilities with an enhanced axial load capacity due to its 30° contact angle. The bearing incorporates sealed end types to protect against dust and debris, ensuring extended service life.

The cage is manufactured from sheet metal, providing strong support to the steel balls that are the primary rolling elements. Featuring internal clearance rated as C3, this bearing allows for thermal expansion and increased operating temperature ranges. It is part of SKF's Series 3 medium range designed for medium-duty applications with a limiting speed capability of up to 4800 revolutions per minute.

With a parallel bore type for straightforward mounting, this bearing is optimally suitable for use in mechanical machinery, manufacturing equipment, and other industrial systems where durability and precision are critical. Made in Germany, the product ensures adherence to stringent manufacturing standards.

Double row angular contact design supports simultaneous radial and axial loads. High-quality steel balls provide wear resistance and durability. Sheet metal cage enhances structural integrity during operation. Sealed ends prevent ingress of contaminants, improving lifespan.

Internal clearance C3 allows for thermal expansion and high-speed use. Series 3 medium rating for balanced performance and load capacity. Limiting speed of 4800 rpm supports high-speed industrial applications. Parallel bore type simplifies assembly and alignment processes.

Manufactured in Germany to meet global quality standards. Suitable for use in industrial machinery, rotary equipment, and heavy-duty tools. Browse more premium quality SKF bearings and rotary components on EnvMart for industrial and engineering applications.
