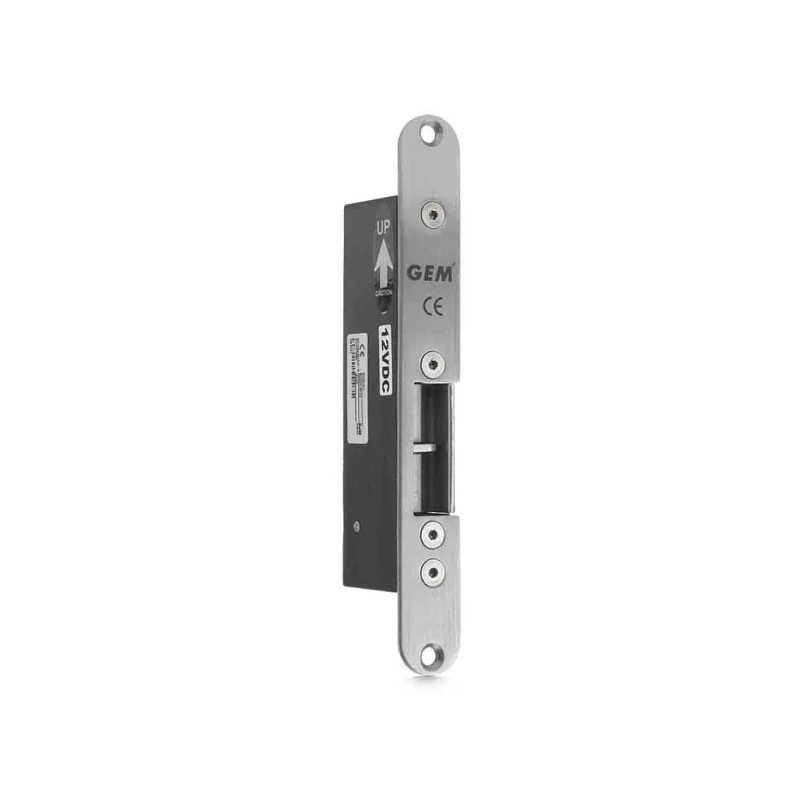

RS PRO Electric Door Release Fail Safe Shear Lock 12V DC 140mA Holding Force 1500lb Depth 40mm Height 141mm Latch 192-4539

RS PRO 192-4539 Electric Door Release is a fail safe shear lock operating on 12V DC with a current draw of 140mA at 24Vdc and 280mA at 12Vdc. This electric door release is engineered to provide reliable and secure access control, especially for fire door applications where safety and regulatory compliance are critical. The robust stainless steel construction has been rigorously tested to withstand 250,000 cycles, ensuring long-lasting durability and consistent performance.

The unit has a holding force of 1500 lbs and can resist side loads up to 500 lbs, guaranteeing security in demanding environments. With a compact depth of 40mm, height of 141mm, and a latch throw of 15mm, it fits efficiently in tight installation spaces. The design is certified with a 1 Hour UK fire Certificate and complies with BS EN1634:1 standards, making it suitable for fire rated doors requiring monitored and fail safe release.

Equipped with a monitoring output, the electric strike allows integration with access control systems to detect the latch status, enhancing security monitoring. This model is a left hand design version, with right hand alternatives available to accommodate different door configurations. It is ideal for applications in residential buildings, offices, warehouses, and retail environments where safety and access control are paramount.

Fail safe operation ensures the door unlocks in power failure or emergency. High holding force and resistance to side loads provide enhanced security. Durable stainless steel body tested to ensure longevity. Fire safety certified and compliant with UK fire regulations and European standards.

Monitoring output for real-time latch status detection and control integration. Compact dimensions aid in versatile installation across various door types. Suitable for residential, commercial, and industrial fire door installations.

Available in both left and right hand designs for flexibility.

This RS PRO electric door release is a reliable solution for environments demanding safe, monitored, and robust locking mechanisms compliant with fire safety standards. Explore related products within the Electric Door Release category at EnvMart to find complementary access control and security solutions.
