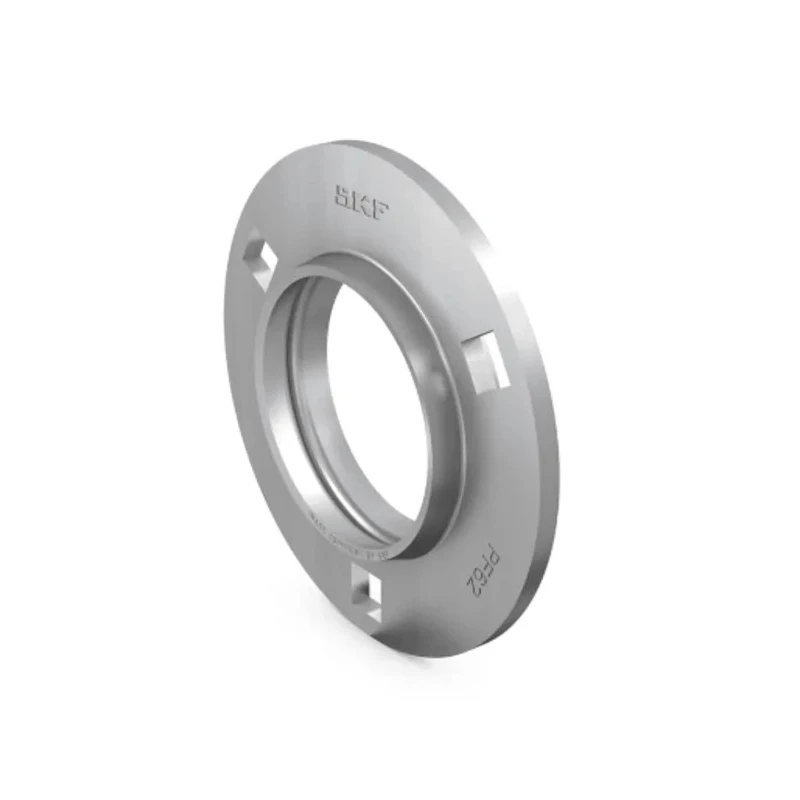

SKF Locating Ring Steel 47 mm Inside Diameter Open End 3-Bolt Mount PF 47

SKF PF 47 locating ring is engineered for accurate axial positioning in mechanical and automation assemblies requiring a round bore interface. Featuring a 47 mm inside diameter, the ring is manufactured from steel, ensuring durability and compliance with JIS, ISO, and North American standards. Its open end design allows for straightforward insertion and removal during assembly operations.

The locating ring has a height and length of 90 mm, with a depth of 16 mm contributing to its low-profile design ideal for space-sensitive applications. It incorporates three mounting holes for 8.7 mm bolts arranged on a 71.4 mm center-to-center pitch, providing secure and repeatable attachment to housings or components.

This component is rated to withstand a static axial load of 3.3 kN, allowing it to maintain precise positioning under mechanical stress commonly encountered in industrial settings.

Common applications include use in automated assembly lines for housing location, motor shaft alignment in electrical drives, control panel mounting in electronics manufacturing, and fixture locating in mechanical fabrication and machining environments.

Constructed in Italy, this SKF locating ring upholds quality and reliability standards expected in industrial machinery and equipment. Open end configuration facilitates easy assembly access. Three-bolt secure mounting for stable positioning.

Steel construction ensures strength and longevity. Compliant with international standards for interchangeability. Compact dimensions enable integration into varied machine designs. Explore EnvMart's extensive range of rotary bearing components and locating rings for enhancing industrial machinery precision.
