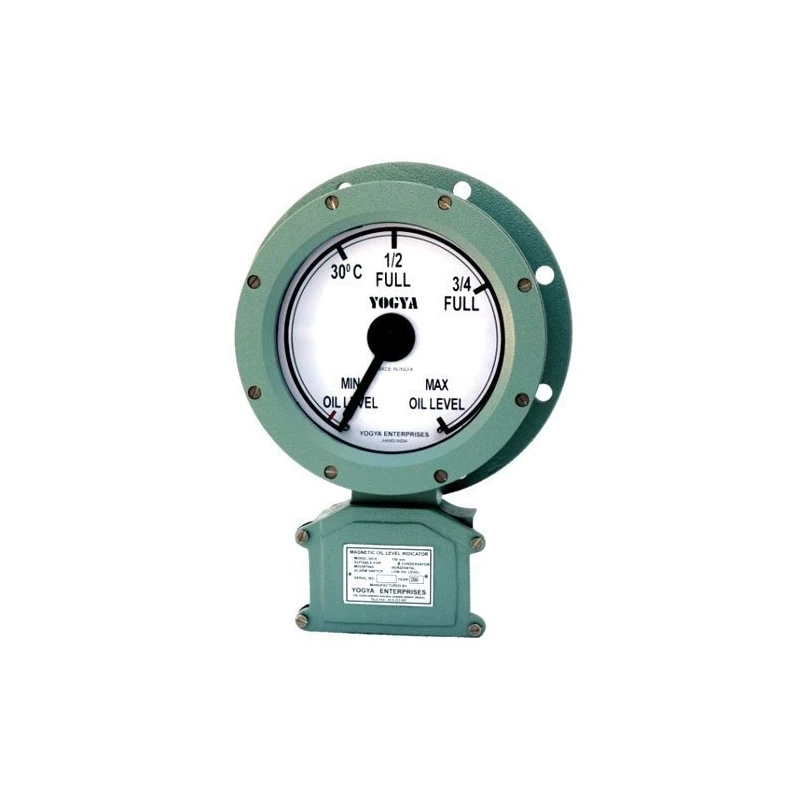

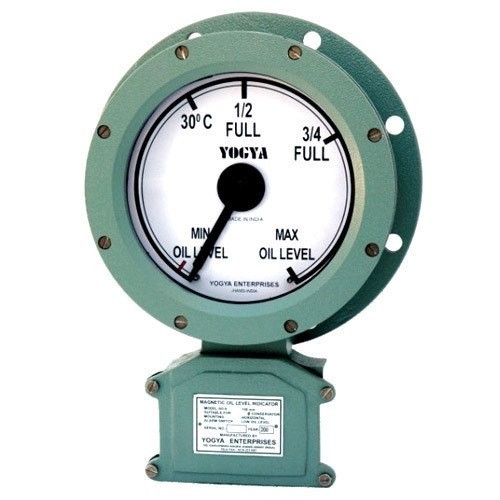

Magnetic Oil Level Gauge
Specifications
| Material | Aluminium |
|---|---|
| Type | Magnetic Oil Level Gauge |
| Applications | Power Transformer |
| Process connection | Screwed |
| Fluid Type | Oil |
| Mounting Orientation | Top |
| Scale Material | Acrylic |
| Glass Material | Acrylic |
| Dial Size | 100 mm |
| Dial Calibration | Custom |
| Mounting Angle | Vertical |
| Pointer Color | Black |
Key Features
- Bulk Quantities Available
Product Description
Magnetic Oil Level Gauge (Indicator)are most commonly fitted on conservator of Power/Distribution Transformers.These Gauges give a visual indication of oil level and provide Alarmfacility at the desired level.Float movement due to rise and fall of oil level gives rotary movement to indicating pointer through bevel gears and magnets.General:-This gauge measures the contents of liquid inside a static tank and continuously indicates the contents on its calibrated scale. It has numerous applications but in the transformer industry for visual indication of oil contents inside the conservator's vessel, this gauge is most popular. Even electrical contacts are also provided to establish indication on the remote mode of abnormal position.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The mounting orientation for this magnetic oil level gauge is vertical, ensuring proper functionality and accuracy.
The gauge is constructed with an aluminium body, and both the scale and glass materials are made of acrylic.
The dial size of this magnetic oil level gauge is 100 mm, providing a clear visual indication of the oil level.
The gauge provides a visual indication of the oil level through a calibrated scale, with a pointer that moves in response to the oil level changes.
It is primarily used in the power transformer industry for indicating oil contents inside the conservator's vessel.
The process connection for this magnetic oil level gauge is screwed, facilitating easy installation.
Yes, the gauge includes an alarm facility that activates at a desired oil level, enhancing monitoring capabilities.
The dial calibration for this model is custom, allowing for specific measurement requirements.
The pointer color on this gauge is black, ensuring visibility against the dial background.
The gauge is designed for top mounting, ensuring it is positioned correctly for optimal performance.
Yes, it is equipped with electrical contacts that allow for indication in a remote mode of abnormal position.
