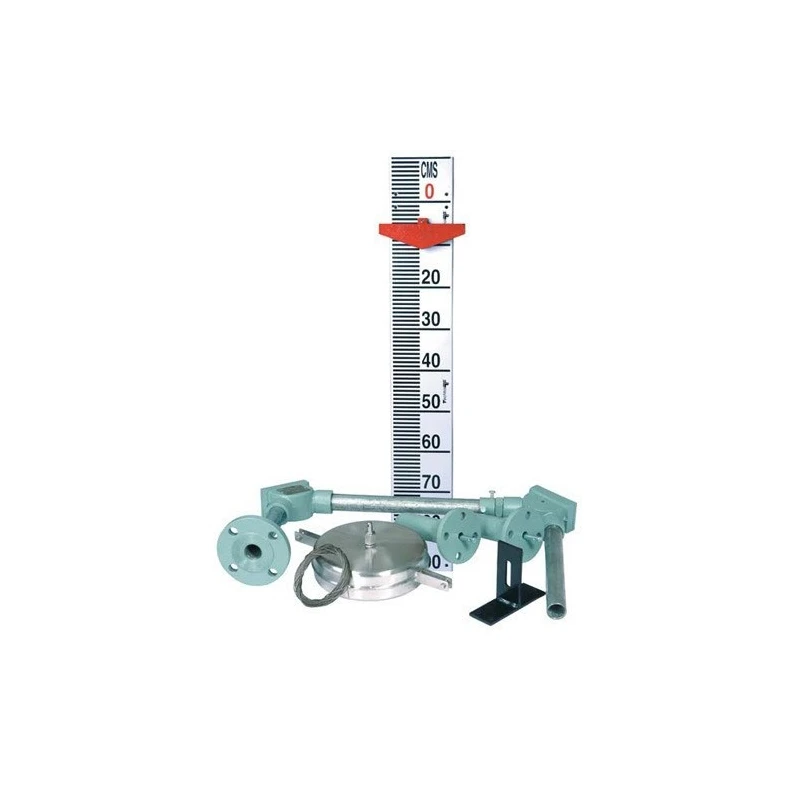

Float And Board Level Indicator
Specifications
| Brand | As per customer requirement |
|---|---|
| Material | Float And Board Level Indicator |
| Type | Mechanical |
| Packaging Type | standard |
| Applications | Laboratory| Industrial |
| Model | Float And Board Level Indicator |
| Minimum Order Quantity | 1 Number |
Key Features
- The Float which is of course the most important element of the instrument.
- In fact, its structural design, volume displacement, weight, and buoyancy force are all taken into careful consideration when a float is specified for a particular application.
- This type of Float & Board type Level Gauge basically work on the principle of buoyancy.
- The float is well connected to the counter weight along with a pointer through flexible wire ropes.
- The pointer slides along the guide against a graduated scale to indicate corresponding levels inside the tank.
Product Description
The features of a typical Float & Board Type Level Gauge can be detailed as follows.Often A typical Float & Board Type Level Gauge is consist of a Float, dust-proof Pulley Housing, Pointer cradle with nylon, and 150 mm width screen printed Aluminum Scale.It has dust-proof pulley housing.This instrument is an absolutely reliable and accurate system for liquid level measurement in tall overhead tanks.It comes with an SS bush bearing for a smooth rotation of the pulley.The pointer cradle has 6 nylon rollers and adjustable brackets for easy mounting.It has a non-corroding aluminum board with controlled cross-section geometry and a wide painted scale with prominent multi-color marking.The indicator, of course, has a slack float with a large diameter for higher accuracy.KABIR also offers Vapor Seal Type Float & Board Type Level Gauge which is generally used for tanks having corrosive fumes/vapors OR N2 [Nitrogen] Purging tanksIn this level gauge the float is connected to a magnetized counter weight moving in a sealed S.S. OR PVC pipe & which drives a follower magnetized bi-color capsule inside a glass tube to indicate liquid level.This level indicator is very easy to transport as well as install.Height up to 25 meters.Other details:-Float : SS 316 / P.P. / SS with PTFE CoatedRope : SS 304 / SS 316 / PP / PTFE / SS with PTFE CoatedPulley : Aluminum / SS 316 / PPPulley Housing : Aluminum / P.P.Telescopic Pipe : MS / SS / PVC, Board : Aluminum / FRP / SS 316Flanges : MS / SS / P.P.Pointer : MS / SS / FRP Coated MSAnchor Plate : SS 316Anchor Housing : MS / SS 316Fasteners : GI Plated / SSBracket : MS / SS
- Most often, the Float & Board type Level Gauge finds its application in underground and over head storage tanks.
- They are also used in storage tanks of petroleum products, like furnace oil, diesel, and lube oil and so on.
- Also, it is used in storage of vegetable oils, molasses, silicates, glucose and so on.
- In short, the Float & Board type Level Indicator is most widely used in all non hazardous and non pressurized tanks.
- For Tank height more than 10 meter we provide Anchor Plated with Anchor Housing for Installing the Anchor Rope.
