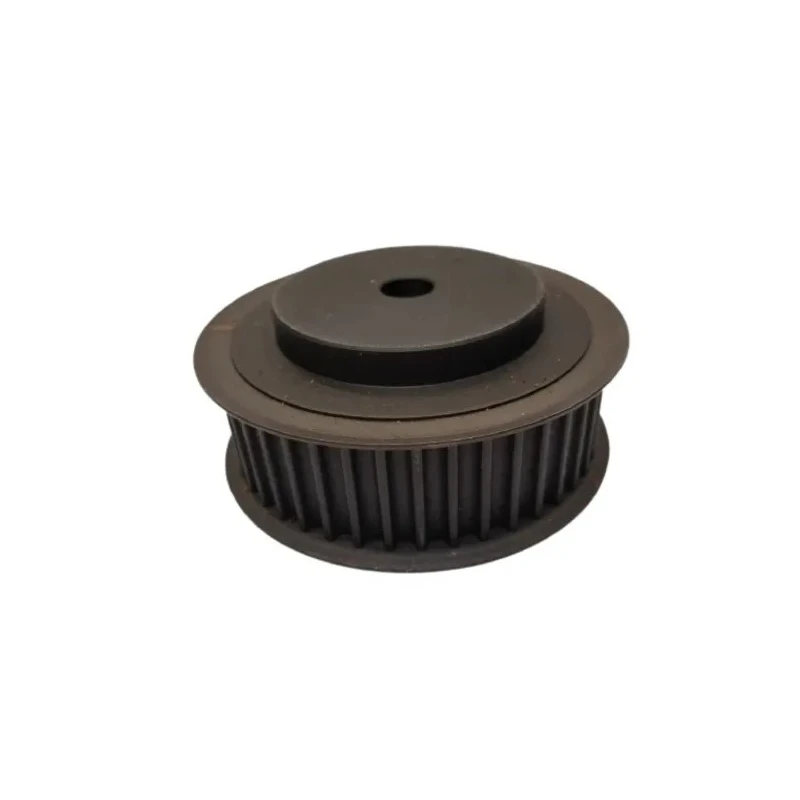

OPTIBELT Timing Belt Pulley Aluminium, 9 mm Bore Diameter, 3 mm Pitch, 24 Teeth, Flanged 243M9

Free Delivery in India | Lowest Global Shipping Charges

OPTIBELT Timing Belt Pulley Aluminium, 9 mm Bore Diameter, 3 mm Pitch, 24 Teeth, Flanged 243M9

Name: OPTIBELT Timing Belt Pulley Aluminium, 9 mm Bore Diameter, 3 mm Pitch, 24 Teeth, Flanged 243M9
Brand: OPTIBELT
SKU: 423643
Price: 20.22 USD
Availability: InStock



Category Mechanical, Fluid Power & Tools Brand OPTIBELT Condition New

Specifications

Country of Origin	India
Brand	OPTIBELT
Material	Aluminium
Model	243M9
Outside diameter	22.16mm
Number of Teeth	24
Bore Diameter	9mm
Flange Diameter	25mm
Pitch	3mm
Standards/Approvals	RoHS
Pitch Circle Diameter	22.92mm
Acceptable Belt Width	9mm

Key Features

Constructed from durable aluminium material for strength and longevity.
Flanged design ensures belt alignment and prevents slippage.
Includes 24 teeth compatible with 3 mm pitch HTD belts.
Acceptable belt width is 9 mm with a maximum bore diameter of 9 mm.
Outside diameter measures 22.16 mm with a pitch circle diameter of 22.92 mm.
Flange diameter is 25 mm to accommodate belt positioning.
Complies with RoHS standards for environmental safety.
Optimized for precise power transmission in mechanical systems.

Product Description

The OPTIBELT 243M9 Timing Belt Pulley is engineered from high strength aluminium, offering durability and lightweight construction ideal for precision mechanical power transmission systems. This flanged pulley features 24 teeth designed to mesh precisely with HTD 3 mm pitch timing belts, ensuring reliable torque transfer and synchronous operation.

With a bore diameter of 9 mm and finished bore hole dimension, it facilitates secure shaft mounting for a wide range of industrial machinery and equipment. The flanged design aids in belt alignment to prevent lateral movement, enhancing operational efficiency and prolonging belt life.

The pulley has an outside diameter of 22.16 mm and a pitch circle diameter of 22.92 mm, with a flange diameter of 25 mm, providing optimal belt engagement and stability. It is suitable for use in manufacturing, automation, HVAC, water treatment, and other industrial sectors requiring robust and precise power transmission components.

Constructed from aluminium for a combination of strength and lightweight operation. Designed for use with HTD belts featuring 3 mm pitch and 9 mm belt width. Flanged to improve belt retention and reduce slippage risks. 24 teeth for accurate timing and efficient power transfer.

Bore diameter finished at 9 mm for exact shaft fitment. Compliant with RoHS standards ensuring environmental and safety compliance. Offers reliable performance in various industrial power transmission applications. Manufactured to meet stringent quality and durability requirements.

Suitable for mechanical, fluid power & tools, and industrial power transmission needs.

This OPTIBELT pulley is an excellent choice for engineers and maintenance professionals seeking dependable components for mechanical systems demanding precision timing and durability. Explore the full range of OPTIBELT belt pulleys in the industrial supplies category on EnvMart to find matching parts for your setup.
