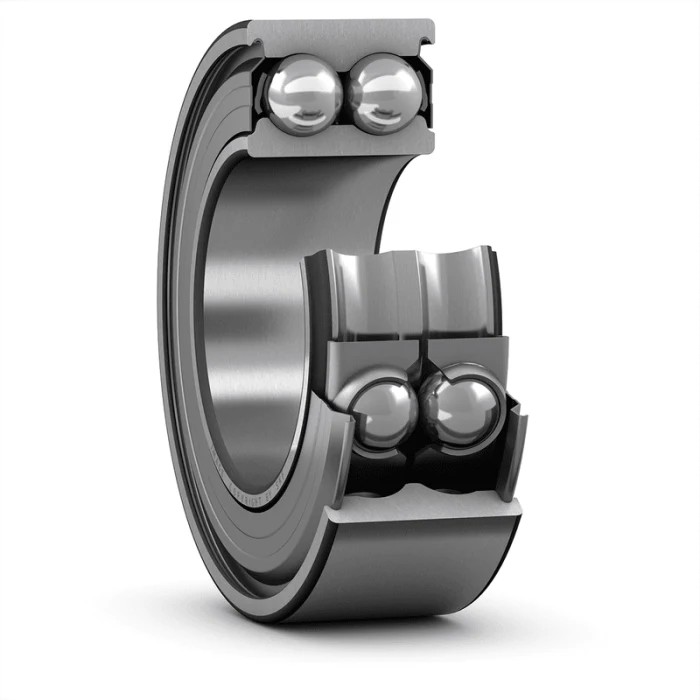

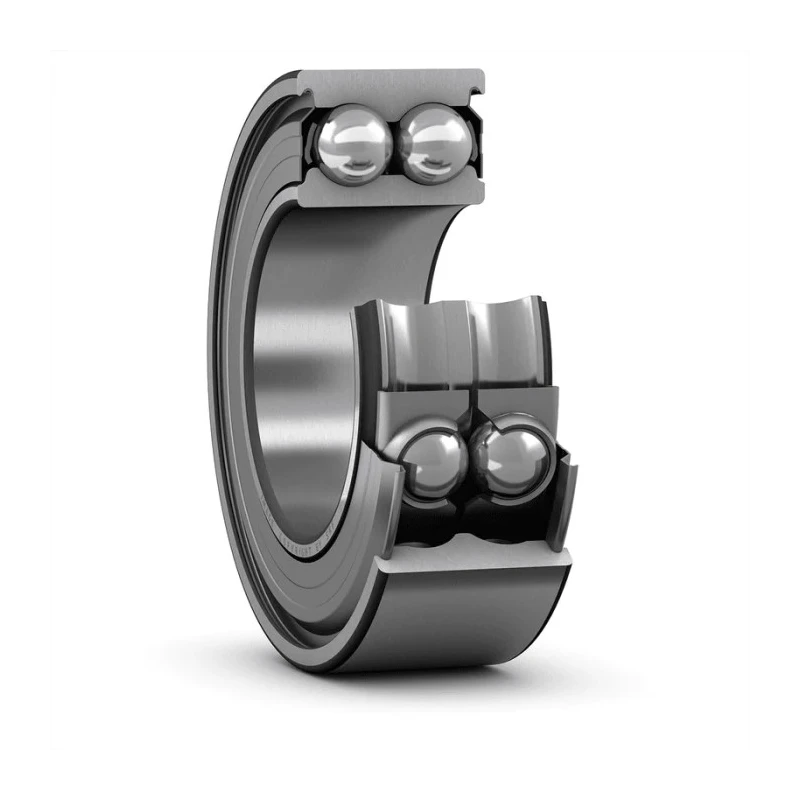

SKF Double Row Angular Contact Ball Bearing 75 mm ID, 130 mm OD, 41.3 mm Race Width 3215 A-2Z/C3MT33

SKF 3215 A-2Z/C3MT33 is a high-quality double row angular contact Ball Bearing designed with a 75 mm inside diameter, 130 mm outside diameter, and 41.3 mm race width. This bearing features inner and outer ring raceways displaced relative to each other along the bearing axis, allowing it to accommodate combined radial and axial loads simultaneously. The contact angle of 30 degrees enhances the bearing's axial load capacity, making it suitable for demanding industrial applications.

The bearing uses steel balls and a non-metallic cage material, with a shielded end type providing effective protection against contaminants. Its parallel bore type ensures precise fitting in machinery assemblies. This SKF bearing boasts a high static load rating of 95.6 kN and a dynamic load rating of 88 kN, supporting durability and long service life under operational stress.

This product belongs to SKF's 2 Light series and has a limiting speed of 4500 rpm, accommodating high-speed rotation requirements. The internal clearance is C0, enhancing precision and reliability. The robust design makes it suitable for various industrial, manufacturing, and mechanical machinery applications, including rotary bearings and housing units.

SKF bearings are widely used in industrial, manufacturing, and mechanical sectors for efficient motion and load support. The 3215 A-2Z/C3MT33 model combines strength, precision, and durability to meet rigorous operational demands.

Designed to accommodate combined radial and axial loads. Non-metallic cage material ensures lightweight and corrosion resistance. Steel balls provide high strength and durability. Shielded ends protect the bearing from dust and contaminants.

Contact angle of 30° improves axial load capacity. High static and dynamic load ratings guarantee reliability. Limiting speed supports high-speed operations up to 4500 rpm. Part of SKF's 2 Light series for versatile industrial use.

EnvMart customers can rely on SKF's trusted engineering for critical bearing components. Explore our range of SKF rotary bearings and housing units for robust performance and longevity.
